- Basic Specifications - Capacity
- 1 TB
- Basic Specifications - Data Transfer Rate
- 8 GBps
- Basic Specifications - Dimensions (WxDxH)
- 22 mm x 80 mm x 2.3 mm
- Basic Specifications - EAN
- 8806094215021
- Basic Specifications - Encryption Algorithm
- 256-bit AES
- Basic Specifications - Features
- 1 GB Low Power DDR4 SDRAM Cache, TRIM support, Auto Garbage Collection Algorithm, Dynamic Thermal Guard protection, sleep mode, Samsung V-NAND 3bit MLC Technology, NVMe 2.0, S.M.A.R.T.
- Basic Specifications - Form Factor
- M.2 2280
- Basic Specifications - Hardware Encryption
- Yes
- Basic Specifications - Interface
- PCIe 4.0 x4 (NVMe)
- Basic Specifications - Manufacturer's Part Number
- MZ-V9P1T0BW
- Basic Specifications - NAND Flash Memory Type
- Triple-level cell (TLC)
- Basic Specifications - Product Description

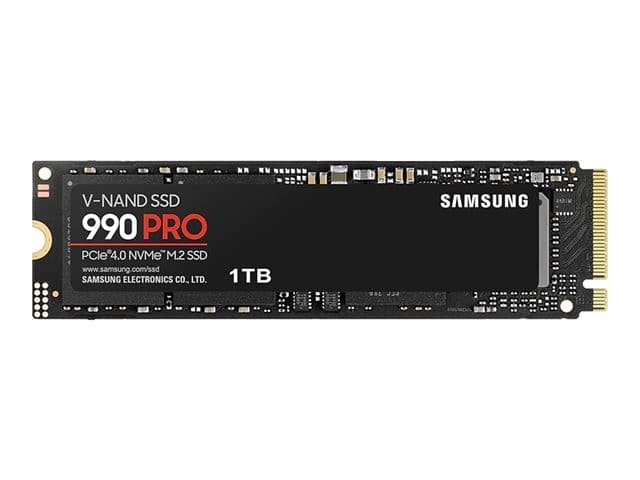

- Samsung 990 PRO MZ-V9P1T0BW - SSD - 1 TB - PCIe 4.0 x4 (NVMe)
- Basic Specifications - Type
- Solid state drive - internal
- Basic Specifications - Weight
- 9 g
- Environmental Parameters - Humidity Range Operating
- 5 - 95% (non-condensing)
- Environmental Parameters - Max Operating Temperature
- 70 °C
- Environmental Parameters - Max Storage Temperature
- 85 °C
- Environmental Parameters - Min Operating Temperature
- 0 °C
- Environmental Parameters - Min Storage Temperature
- -40 °C
- Environmental Parameters - Shock Tolerance (non-operating)
- 1500 g @ 0.5 ms
- Environmental Parameters - Vibration Tolerance (non-operating)
- 20 g @ 20-2000 Hz
- Expansion & Connectivity - Compatible Bay
- M.2 2280
- General - Capacity
- 1 TB
- General - Depth
- 80 mm
- General - Device Type
- Solid state drive - internal
- General - Encryption Algorithm
- 256-bit AES
- General - Features
- 1 GB Low Power DDR4 SDRAM Cache, TRIM support, Auto Garbage Collection Algorithm, Dynamic Thermal Guard protection, sleep mode, Samsung V-NAND 3bit MLC Technology, NVMe 2.0, S.M.A.R.T.
- General - Form Factor
- M.2 2280
- General - Hardware Encryption
- Yes
- General - Height
- 2.3 mm
- General - Interface
- PCIe 4.0 x4 (NVMe)
- General - NAND Flash Memory Type
- Triple-level cell (TLC)
- General - Weight
- 9 g
- General - Width
- 22 mm
- Miscellaneous - Compliant Standards
- IEEE 1667, FCC, UKCA, cRUus, VCCI, EAC
- Miscellaneous - Package Details
- Box
- Performance - 4KB Random Read
- 1200000 IOPS
- Performance - 4KB Random Write
- 1550000 IOPS
- Performance - Drive Transfer Rate
- 8 GBps (external)
- Performance - Internal Data Rate
- 7450 MBps (read) / 6900 MBps (write)
- Performance - SSD Endurance
- 600 TB
- Power - Power Consumption
- 5.4 Watt (read) ¦ 5 Watt (write) ¦ 50 mW (idle) ¦ 5 mW (L1.2 mode)
- Reliability - MTBF
- 1,500,000 hours
- Software & System Requirements - Software Included
- Samsung Magician Software
