- Basic Specifications - Batteries Qty
- 2
- Basic Specifications - Battery
- Lead Acid
- Basic Specifications - Battery Form Factor
- Internal
- Basic Specifications - Colour
- Black
- Basic Specifications - Designed For
- P/N: AR2200, AR2280, AR2487G, AR3100TAA, AR3100W, AR3105SP, AR3105W, AR3107G, AR3107SP, AR3140G, AR3140W, AR3150SP, AR3150W, AR3155SP, AR3155W, AR3157SP, AR3300SP, AR3300W, AR3305SP, AR3305W, AR3307SP, AR3307W, AR3340G, AR3340W, AR3350SP, AR3350W, AR3355SP, AR3355W, AR3357SP, AR4038IX432, NBWL0356A
- Basic Specifications - Device Type
- UPS - external
- Basic Specifications - Dimensions (WxDxH)
- 48.3 cm x 66 cm x 22.2 cm
- Basic Specifications - EAN
- 7313042553216
- Basic Specifications - Input Connectors
- 1 x hardwire 3-wire
- Basic Specifications - Input Voltage
- AC 230 V
- Basic Specifications - Manufacturer Warranty
- 2-year warranty
- Basic Specifications - Manufacturer's Part Number
- SUA5000RMI5U
- Basic Specifications - Networking
- Ethernet 10/100, RS-232

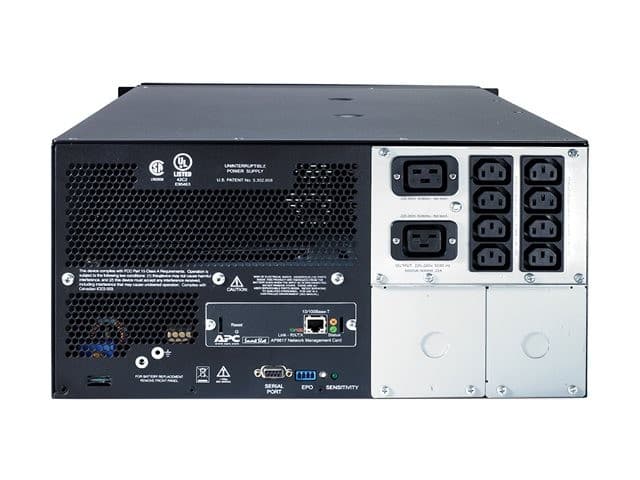

- Basic Specifications - Output Connector(s)
- 8 x power IEC 320 EN 60320 C13 ¦ 2 x power IEC 320 EN 60320 C19
- Basic Specifications - Output connectors
- 8 x power IEC 60320 C13 ¦ 2 x power IEC 60320 C19
- Basic Specifications - Output Connectors
- 10 x power IEC 60320 C13, power IEC 60320 C19
- Basic Specifications - Output Voltage
- AC 220/230/240 V ± 5%
- Basic Specifications - Power Capacity
- 4 kW / 5000 VA
- Basic Specifications - Product Description

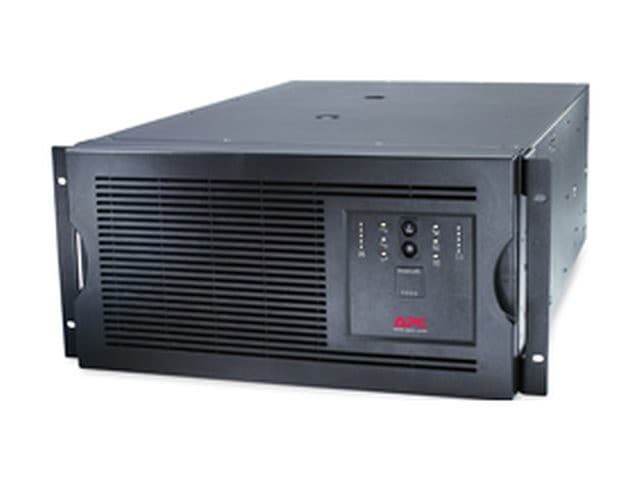

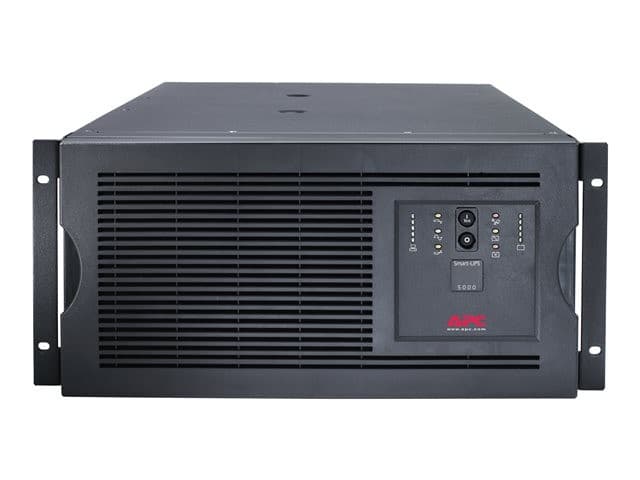

- APC Smart-UPS - UPS - 4 kW - 5000 VA
- Basic Specifications - Product Type
- UPS
- Basic Specifications - Rack Size
- 5U
- Basic Specifications - Remote Management Protocol
- SNMP, Telnet, HTTP
- Basic Specifications - Run Time (Up To)
- 9.4 min at full load
- Basic Specifications - Weight
- 97.7 kg
- Battery - Quantity
- 2
- Battery - Recharge Time
- 3 hours
- Battery - Run Time (Up To)
- 9.4 min at full load
- Battery - Technology
- Lead Acid
- Compatibility Information - Designed For
- P/N: ACCS1000, ACCS1001, ACCS1002, ACCS1003, ACCS1004, ACCS1005, ACCS1006, ACCS1007, ACDC1015, ACDC1016, ACDC1017, ACDC1019, ACDC1020, ACDC1021, ACDC2513, ACF001, ACF002, ACF003, ACF101BLK, ACF102BLK, ACF201BLK, ACF400, AP5017, AP5602, AP5606, AP5607, AP5616, AP92200, AP9290, AR202, AR2101, AR2102BLK, AR2200, AR2280, AR2400, AR2400FP1, AR2401, AR2407, AR2480, AR2487, AR2487G, AR2500, AR2507, AR2580, AR2587, AR2900, AR2901, AR3000, AR3100, AR3100G, AR3100SP, AR3100TAA, AR3100W, AR3100X609, AR3100X610, AR3100X617, AR3101, AR3104SP1, AR3105, AR3105SP, AR3105W, AR3107G, AR3107SP, AR3107X609, AR3107X610, AR3107X617, AR3130, AR3140G, AR3140W, AR3150, AR3150SP, AR3150W, AR3150X609, AR3150X610, AR3150X617, AR3155, AR3155SP, AR3155W, AR3157SP, AR3157X609, AR3157X610, AR3157X617, AR3200, AR3300, AR3300G, AR3300SP, AR3300W, AR3300X609, AR3300X610, AR3300X617, AR3305, AR3305SP, AR3305W, AR3307, AR3307SP, AR3307W, AR3307X609, AR3307X610, AR3307X617, AR3340, AR3340G, AR3340W, AR3347, AR3350, AR3350SP, AR3350W, AR3350X609, AR3350X610, AR3350X617, AR3355, AR3355SP, AR3355W, AR3357, AR3357SP, AR3357X609, AR3357X610, AR3357X617, AR3810, AR3812, AR3814, AR4038, AR4038A, AR4038I, AR4038IA, AR4038IX429, AR4038IX431, AR4038IX432, AR4038X429, AR4038X431, AR4038X432, AR7007, AR7050, AR7057, AR8135BLK, NBWL0356A
- Dimensions & Weight - Depth
- 66 cm
- Dimensions & Weight - Height
- 22.2 cm
- Dimensions & Weight - Weight
- 97.7 kg
- Dimensions & Weight - Width
- 48.3 cm
- Dimensions & Weight (Shipping) - Shipping Depth
- 76.2 cm
- Dimensions & Weight (Shipping) - Shipping Height
- 63.5 cm
- Dimensions & Weight (Shipping) - Shipping Weight
- 107 kg
- Dimensions & Weight (Shipping) - Shipping Width
- 61 cm
- Environmental Parameters - Humidity Range Operating
- 0 - 95%
- Environmental Parameters - Max Operating Temperature
- 40 °C
- Environmental Parameters - Min Operating Temperature
- 0 °C
- Environmental Parameters - Sound Emission
- 53 dBA
- Expansion / Connectivity - Expansion Slots
- 1 (total) / 0 (free) x SmartSlot
- Expansion / Connectivity - Interfaces
- 1 x management (RS-232) - 9 pin D-Sub (DB-9) ¦ 1 x management (Ethernet) - RJ-45
- General - Battery Enclosure Type
- Internal
- General - Colour
- Black
- General - Device Type
- UPS - external
- General - Height (Rack Units)
- 5U
- Manufacturer Warranty - Service & Support
- Limited warranty - 2 years
- Miscellaneous - Cables Included
- Serial cable - external
- Miscellaneous - Compliant Standards
- C-Tick, GOST, GS, VDE, EN 50091-2, EN 50091-1
- Miscellaneous - Features
- Audible alarm, LED indicators, noise filtering

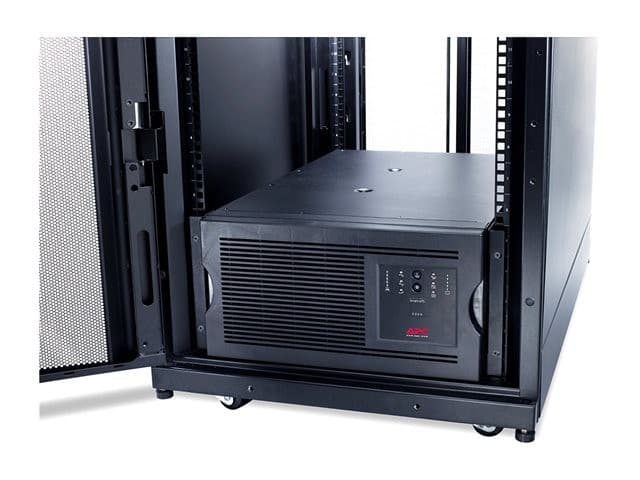

- Miscellaneous - Rack Mounting Kit
- Included
- Networking - Remote Management Interface
- Ethernet 10/100, RS-232
- Networking - Remote Management Protocol
- SNMP, Telnet, HTTP
- Power Device - Frequency Provided
- 50/60 Hz
- Power Device - Frequency Required
- 50/60 Hz
- Power Device - Input Connectors
- 1 x hardwire 3-wire
- Power Device - Input Voltage
- AC 230 V
- Power Device - Input Voltage Range
- AC 160 - 286 V
- Power Device - Input Voltage Range (Adjustable)
- AC 151 - 302 V
- Power Device - Output Voltage
- AC 220/230/240 V ± 5% - 50/60 Hz
- Power Device - Output Waveform
- Sinewave
- Power Device - Power Capacity
- 4 kW / 5000 VA
- Power Device - Power Output Connectors Details
- 8 x power IEC 60320 C13 ¦ 2 x power IEC 60320 C19
- Power Device - Surge Energy Rating
- 480 Joules
- Power Device - Surge Suppression
- Yes
- Power Device - UPS Technology
- Line interactive
- Software / System Requirements - Software Included
- APC PowerChute Business Edition
