- Basic Specifications - EAN
- 4711387797273
- Basic Specifications - Manufacturer's Part Number
- 126172
- External connectivity - Audio
- Audio jacks x 3
- External connectivity - LAN
- Realtek 2.5Gb Ethernet x 1
- External connectivity - Other external connections
- Vertical M.2 slot (Key M) x 3
- External connectivity - USB
- Rear:- USB Type-A (10 Gbps) x 1- USB Type-C (10 Gbps) x 1- USB Type-A (5 Gbps) x 2- USB 2.0 x 4Front:- USB 3.2 Gen 1 (supports USB Type-C) x 1- USB 3.2 Gen 1 (supports 2 additional USB 3.2 Gen 1 ports) x 1- USB 2.0 (support 4 additional USB 2.0 ports) x 2
- External connectivity - Video output
- - HDMI x 1- DisplayPort x 1
- General - Box contents

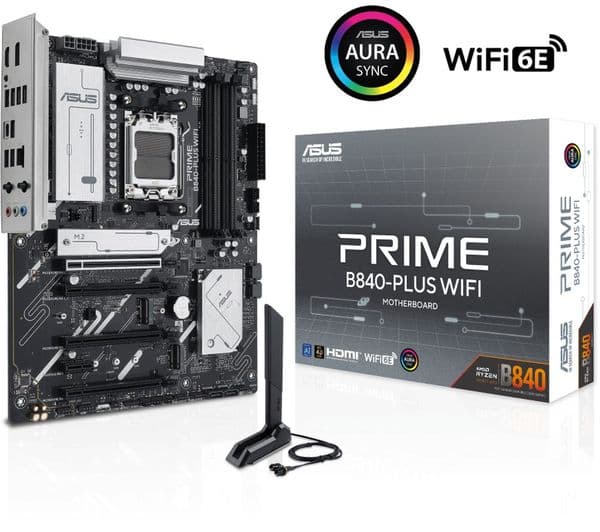

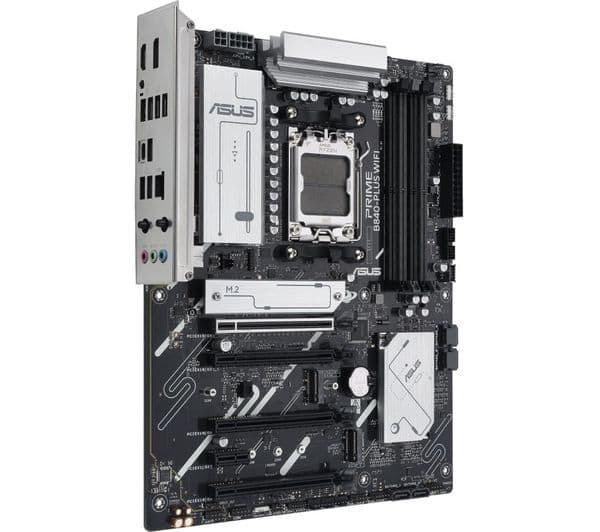

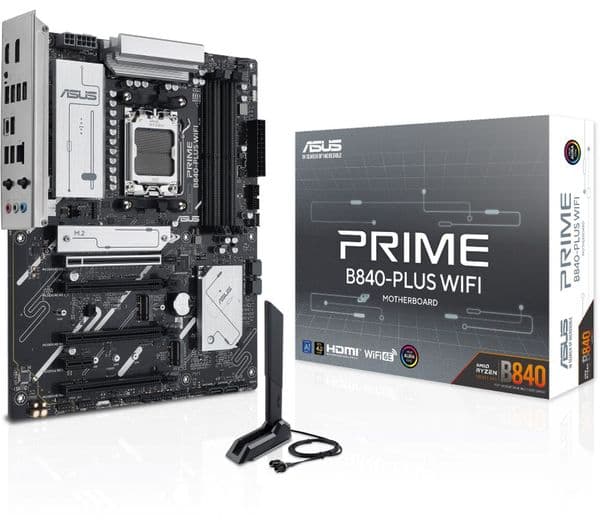

- - Asus PRIME B840-PLUS WIFI AM5 Motherboard- SATA cables x 2- M.2 rubber package x 2- M.2 screw package x 2- ASUS WiFi Q-Antenna x 1- Documentation- Quick start guide
- General - Colour
- Black
- General - Dimensions
- 48 x 244 x 305 mm (H x W x D)
- General - Manufacturer’s guarantee
- 3 years
- General - Software included
- - ASUS Exclusive Software- UEFI BIOS
- General - Weight
- 1.05 kg
- Internal connectivity - BIOS
- - 256 Mb Flash ROM- UEFI AMI BIOS
- Internal connectivity - Buttons
- - Power- Reset- BIOS FlashBack
- Internal connectivity - Case
- - Power LED x 1- HDD LED x 1
- Internal connectivity - Cooling
- - 4-pin CPU fan header x 1- 4-pin CPU OPT fan header x 1- 4-pin AIO Pump header x 1- 4-pin chassis fan headers x 4
- Internal connectivity - Expansion slots
- - PCIe 4.0 (x16) (supports x16 mode) × 1- PCIe 4.0 (x16) (supports x8 / x4 mode) × 1- PCIe 3.0 (x16) (supports x4 mode) × 1- PCIe 3.0 (x16) (supports x1 mode) × 2- PCIe 3.0 (x1) (supports x1 mode) × 1
- Internal connectivity - Other internal connections
- - Addressable Gen 2 headers x 3- Clear CMOS header x 1- Chassis Intrusion header x 1- COM Port header x 1- Front Panel Audio header (F_AUDIO) x 1- S/PDIF Out header x 1- SPI TPM header (14-1 pin) x 1- 10-1 pin System Panel header x 1- Thunderbolt (USB 4) header x 1
- Internal connectivity - Power
- - 24-pin EATX x 1- 8-pin ATX 12 V x 1- 4-pin ATX 12 V x 1
- Internal connectivity - Storage slots
- - SATA x 4 (6 GB/s)- M.2 x 3
- Internal connectivity - USB
- 1 x USB 5 Gbps connector (supports USB Type-C) x 11 x USB 5 Gbps header (supports 2 additional USB 5 Gbps ports) x 12 x USB 2.0 headers (support 4 additional USB 2.0 ports) x 2
- Overview - Chipset
- AMD B840
- Overview - Form factor
- ATX
- Overview - Memory slots
- 4 x DIMM (Max RAM: 192 GB)
- Overview - Memory standard
- DDR5
- Overview - Operating systems supported
- - Windows 10 (64-bit)- Windows 11
- Overview - Processor models supported
- AMD Ryzen 9000, 8000, 7000 Series desktop processors
- Overview - Socket
- AMD AM5
