- Basic Specifications - EAN
- 4711387797143
- Basic Specifications - Manufacturer's Part Number
- 126173

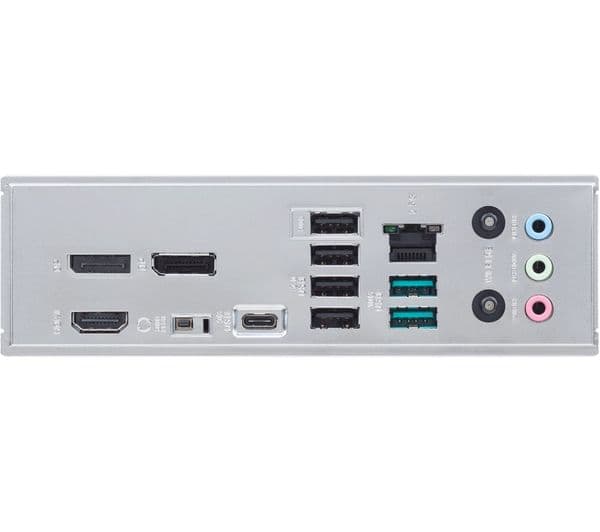

- External connectivity - Audio
- Audio jacks x 3
- External connectivity - LAN
- - Realtek 2.5Gb Ethernet x 1- ASUS LANGuard
- External connectivity - Other external connections
- WiFi module x 1
- External connectivity - USB
- - USB Type-C x 2- USB 3.0 x 5- USB 2.0 x 6
- External connectivity - Video output
- - HDMI x 1- DisplayPort x 2

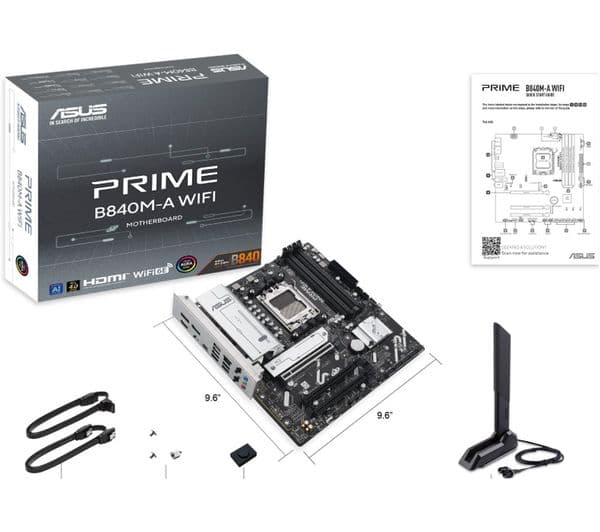

- General - Box contents
- - Asus PRIME B840M-A AMD AM5 Motherboard- Cables- SATA 6Gb/s cables x 2- M.2 rubber package x 1- ASUS WiFi Q-Antenna x 1- Screw packages for M.2 SSD x 3- Quick start guide
- General - Colour
- Black
- General - Dimensions
- 50 x 244 x 244 mm (H x W x D)
- General - Manufacturer’s guarantee
- 3 years
- General - Software included
- - ASUS Exclusive Software- Armoury Crate- Aura Creator- Aura Sync- Fan Xpert 2+- Power Saving- ASUS DriverHub- ASUS GlideX- TurboV Core- ASUS CPU-Z- Adobe Creative Cloud (Free Trial)- Norton 360 Deluxe (60 Days Free Trial)- WinRAR (40 Days Free Trial)- UEFI BIOS- ASUS EZ DIY- ASUS CrashFree BIOS 3- ASUS EZ Flash 3- ASUS UEFI BIOS EZ Mode- ASUS MyHotkey
- General - Weight
- 0.93 kg
- Internal connectivity - BIOS
- - 256 Mb Flash ROM- UEFI AMI BIOS
- Internal connectivity - Buttons
- BIOS FlashBack x 1
- Internal connectivity - Case
- BIOS FlashBack LED x 1
- Internal connectivity - Cooling
- - 4-pin CPU fan header x 1- 4-pin CPU OPT fan header x 1- 4-pin AIO Pump header x 1- 4-pin chassis fan headers x 3
- Internal connectivity - Expansion slots
- AMD Ryzen 9000 & 7000 Series Desktop Processors:- PCIe 4.0 (x16 slots) x 1 (supports x16 mode)AMD Ryzen 8000 Series Desktop Processors:- PCIe 4.0 (x16 slots) x 1 (supports x8/x4 mode)AMD B840 Chipset:- PCIe 3.0 (x16 slots) x 2
- Internal connectivity - Other internal connections
- - Addressable Gen 2 headers x 3- Clear CMOS header x 1- COM Port header x 1- Front Panel Audio header (F_AUDIO) x 1- S/PDIF Out header x 1- SPI TPM header (14-1 pin) x 1- 10-1 pin Front System Panel header x 1
- Internal connectivity - Power
- - 24-pin main power connector- 8-pin +12V CPU Power connector x 2
- Internal connectivity - Storage slots
- - SATA x 4 (6 GB/s)- M.2 x 3
- Overview - Chipset
- AMD B840
- Overview - Form factor
- microATX
- Overview - Memory slots
- DIMM (Max RAM: 192 GB) x 4
- Overview - Memory standard
- DDR5
- Overview - Operating systems supported
- - Windows 11- Windows 10 64-bit
- Overview - Processor models supported
- AMD RYZEN 7000 / 8000 / 9000 processors
- Overview - Socket
- AMD AM5
