- Basic Specifications - Batteries Qty
- 2
- Basic Specifications - Battery
- Lead Acid - 9 Ah
- Basic Specifications - Colour
- Black
- Basic Specifications - Device Type
- UPS - rack-mountable
- Basic Specifications - Dimensions (WxDxH)
- 44 cm x 40.5 cm x 8.62 cm
- Basic Specifications - EAN
- 3553340620331
- Basic Specifications - Included Accessories
- BS cord 10A
- Basic Specifications - Input Connectors
- 1 x power IEC 60320 C14
- Basic Specifications - Input Voltage
- AC 220/230/240 V
- Basic Specifications - Input Wiring
- 1-phase
- Basic Specifications - Manufacturer Warranty
- 2-year warranty
- Basic Specifications - Manufacturer's Part Number
- 5SC1000IRBS
- Basic Specifications - Model
- Eaton 5SC 1000iR
- Basic Specifications - Networking
- RS-232, USB
- Basic Specifications - Output connectors
- 8 x power IEC 60320 C13
- Basic Specifications - Output Voltage
- AC 220-240 V
- Basic Specifications - Power Capacity
- 700 Watt / 1000 VA
- Basic Specifications - Product Description
- Eaton 5SC 1000iR - UPS - 700 Watt - 1000 VA
- Basic Specifications - Product Type
- UPS
- Basic Specifications - Rack Size
- 2U
- Basic Specifications - Run Time (Up To)
- 5 min at full load
- Basic Specifications - Weight
- 15.36 kg
- Battery - Capacity
- 9 Ah
- Battery - Quantity
- 2
- Battery - Run Time (Up To)
- 5 min at full load ¦ 12 min at half load ¦ 8 min at 70% load
- Battery - Technology
- Lead Acid
- Battery - Voltage Provided
- 12 V
- Dimensions & Weight - Depth
- 40.5 cm
- Dimensions & Weight - Height
- 8.62 cm
- Dimensions & Weight - Weight
- 15.36 kg
- Dimensions & Weight - Width
- 44 cm
- Environmental Parameters - Humidity Range Operating
- 0 - 90%
- Environmental Parameters - Max Operating Temperature
- 40 °C
- Environmental Parameters - Min Operating Temperature
- 0 °C
- Expansion / Connectivity - Interfaces
- 1 x management (USB) - 4 pin USB Type B ¦ 1 x management (RS-232) - RJ-45
- General - Colour
- Black
- General - Device Type
- UPS - rack-mountable
- General - Height (Rack Units)
- 2U
- Manufacturer Warranty - Service & Support
- Limited warranty - 2 years ¦ Limited warranty - batteries - 2 years
- Miscellaneous - Cables Included
- USB cable ¦ 2 x power cable (IEC) ¦ Serial cable
- Miscellaneous - Compliant Standards
- UL 1778, CB, IEC 62040-1-1, IEC 62040-2, EN 62040-1-1, EN 62040-2
- Miscellaneous - Features

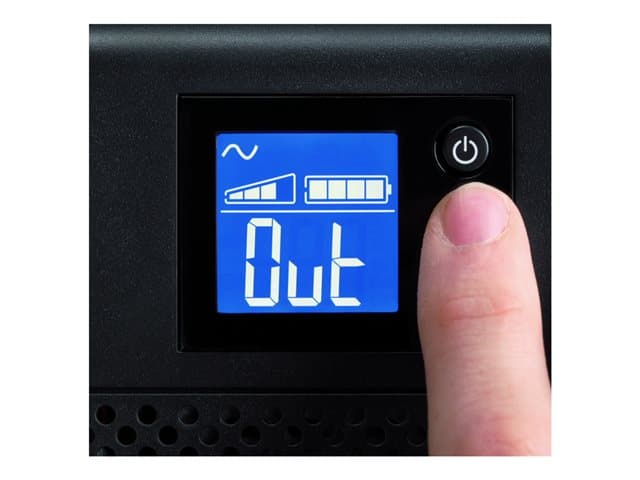

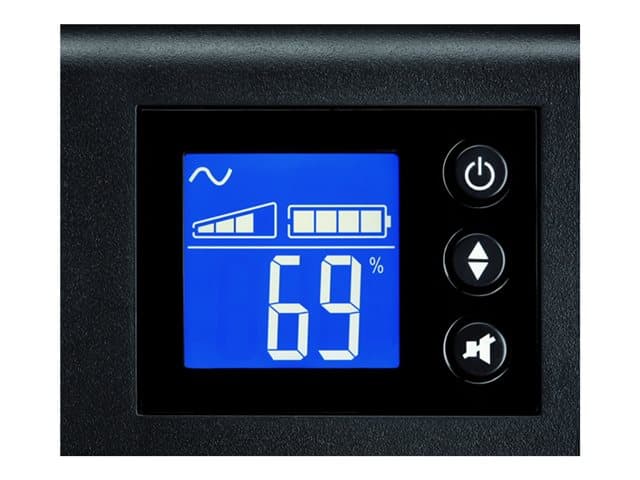

- Advance Battery Management (ABM), LCD display, deep discharge protection
- Miscellaneous - Included Accessories
- BS cord 10A
- Miscellaneous - Rack Mounting Kit
- Included
- Networking - Remote Management Interface
- RS-232, USB
- Power Device - Circuit Protection
- Circuit breaker
- Power Device - Efficiency
- 96%
- Power Device - Frequency Required
- 50/60 Hz
- Power Device - Input Connectors
- 1 x power IEC 60320 C14
- Power Device - Input Voltage
- AC 220/230/240 V
- Power Device - Input Voltage Range
- AC 184 - 276 V
- Power Device - Input Wiring
- 1-phase
- Power Device - Output Voltage
- AC 220-240 V
- Power Device - Power Capacity
- 700 Watt / 1000 VA
- Power Device - Power Factor (PF)
- 0.7
- Power Device - Power Output Connectors Details
- 8 x power IEC 60320 C13
- Power Device - UPS Technology
- Line interactive
