- Basic Specifications - Cabling Type
- Ethernet 10Base-T, Ethernet 100Base-TX, Ethernet 1000Base-T
- Basic Specifications - Data Link Protocol
- 10Mb LAN, 100Mb LAN, 1GbE
- Basic Specifications - Designed For
- P/N: 9PX1000GRT, 9PX1000RT, 9PX1500GRT, 9PX1500GRT-L, 9PX1500RT, 9PX1500RT-L, 9PX2000RT, 9PX2000RT-L, 9PX2200GRT, 9PX2200GRT-L, 9PX3000GLRT, 9PX3000GRT, 9PX3000GRT-L, 9PX3000RT, 9PX3000RT-L, 9PX700RT, 9SX1000, 9SX1000G, 9SX1500, 9SX1500G, 9SX2000, 9SX2000G, 9SX3000, 9SX3000G, 9SX3000GL, 9SX3000HW
- Basic Specifications - Device Type
- Remote management adapter
- Basic Specifications - Dimensions (WxDxH)
- 6.6 cm x 13.5 cm x 4.1 cm
- Basic Specifications - EAN
- 7866897795664
- Basic Specifications - Form Factor
- Plug-in module
- Basic Specifications - Manufacturer's Part Number
- NETWORK-M3
- Basic Specifications - Model

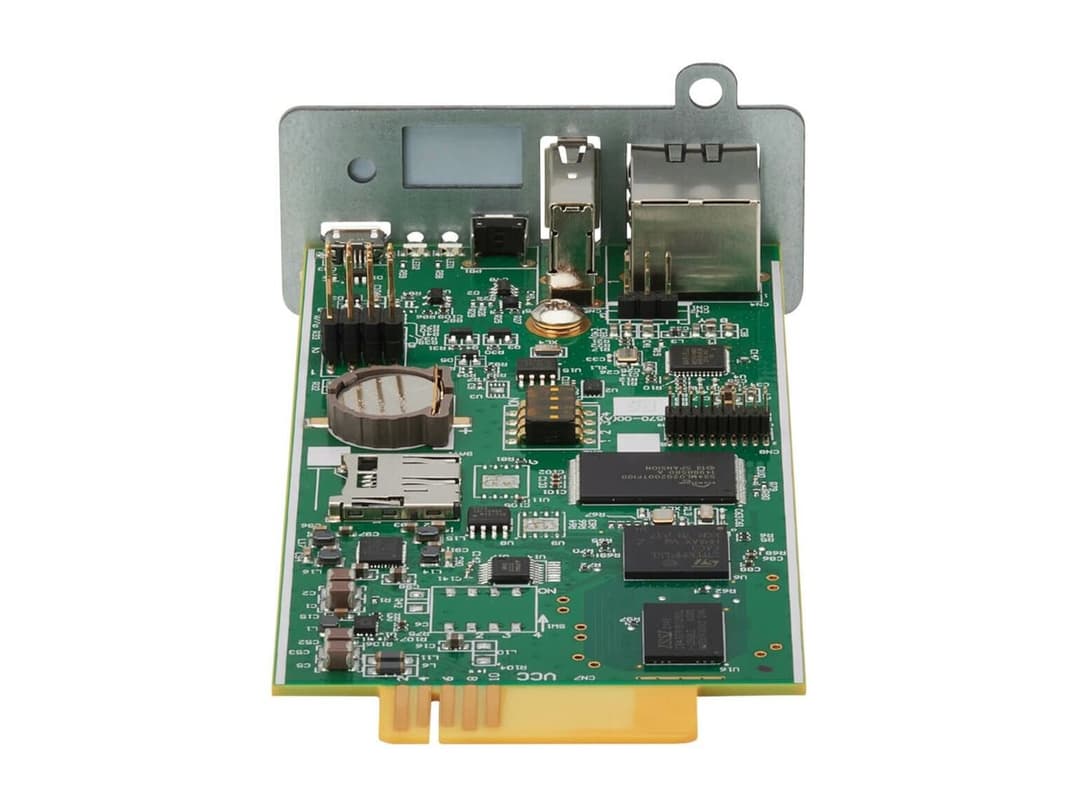

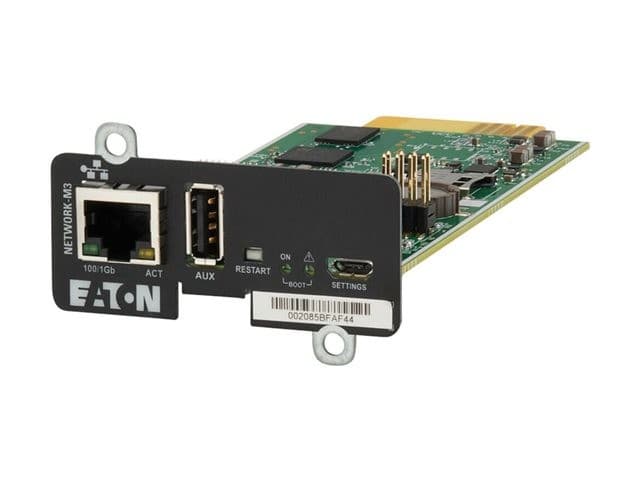

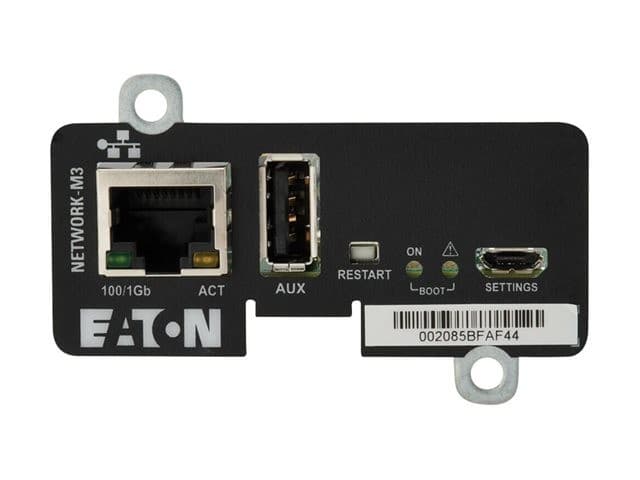

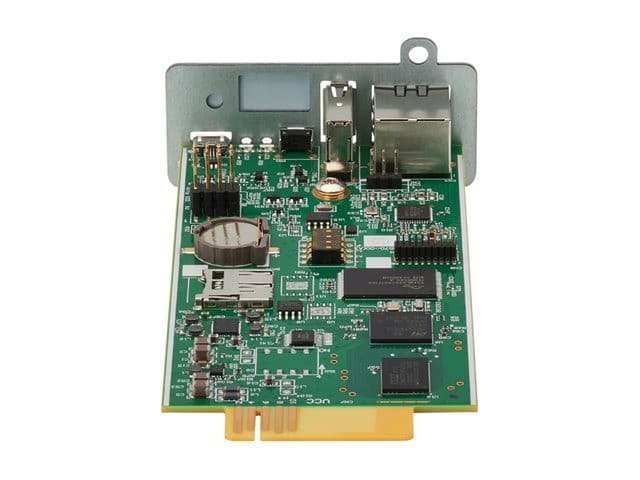

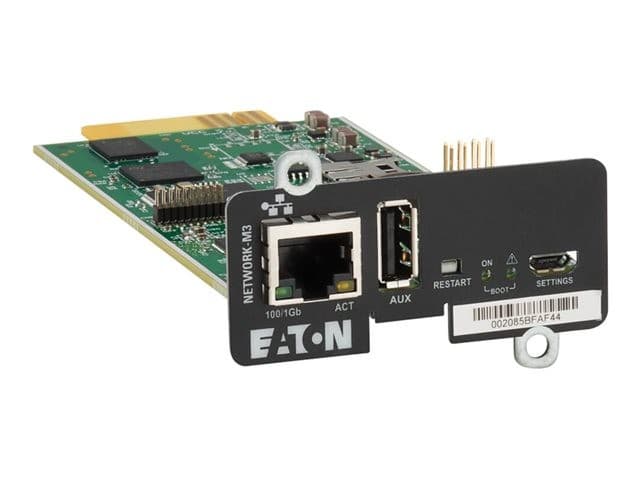

- Eaton Cybersecure Gigabit NETWORK-M3 Card for UPS and PDU
- Basic Specifications - Network / Transport Protocol
- BOOTP, DHCP, ARP
- Basic Specifications - Ports
- Gigabit Ethernet x 1
- Basic Specifications - Product Description
- Eaton Cybersecure Gigabit NETWORK-M3 Card for UPS and PDU - remote management adapter - Gigabit Ethernet x 1
- Basic Specifications - Weight
- 65 g
- Compatibility Information - Designed For
- P/N: 9PX1000GRT, 9PX1000RT, 9PX1500GRT, 9PX1500GRT-L, 9PX1500RT, 9PX1500RT-L, 9PX2000RT, 9PX2000RT-L, 9PX2200GRT, 9PX2200GRT-L, 9PX3000GLRT, 9PX3000GRT, 9PX3000GRT-L, 9PX3000RT, 9PX3000RT-L, 9PX700RT, 9SX1000, 9SX1000G, 9SX1500, 9SX1500G, 9SX2000, 9SX2000G, 9SX3000, 9SX3000G, 9SX3000GL, 9SX3000HW
- Dimensions & Weight - Depth
- 13.5 cm
- Dimensions & Weight - Height
- 4.1 cm
- Dimensions & Weight - Weight
- 65 g
- Dimensions & Weight - Width
- 6.6 cm
- Environmental Parameters - Humidity Range Operating
- - 95% RH (non-condensing)
- Environmental Parameters - Max Operating Temperature
- 40 °C
- Environmental Parameters - Min Operating Temperature
- 0 °C
- Expansion / Connectivity - Interfaces
- 1 x 1000Base-T - RJ-45 ¦ 1 x auxiliary - 4 pin USB Type A ¦ 1 x management (USB)
- General - Device Type
- Remote management adapter
- General - Form Factor
- Plug-in module
- Miscellaneous - Compliant Standards
- UL 2900-1, IEC 62443-4-2
- Networking - Cabling Type
- Ethernet 10Base-T, Ethernet 100Base-TX, Ethernet 1000Base-T
- Networking - Connectivity Technology
- Wired
- Networking - Data Link Protocol
- Ethernet, Fast Ethernet, Gigabit Ethernet
- Networking - Features
- Enviromental monitoring, E-mail alert, MIB II, IPv4 support, IPv6 support, secure boot, auto-shutdown, virtual machine awareness, firewall protection, REST API interface, LED status indicators, password authentication, firmware upgradable, reset button
- Networking - Network / Transport Protocol
- BOOTP, DHCP, ARP
- Networking - Ports
- Gigabit Ethernet x 1
- Networking - Remote Management Protocol
- HTTP, MQTTS, TLS, SNMP 1, SNMP 2c, SNMP 3, NTP, SMTPS, CLI, SSH, Syslog, LDAP, RADIUS
