- Basic Specifications - Brightness (Colour)
- 3500 lumens
- Basic Specifications - Brightness (White)
- 3500 lumens
- Basic Specifications - Built-in Devices
- Speaker
- Basic Specifications - Bulb life cycle
- Up to 5000 hour(s) - normal mode ¦ Up to 10000 hour(s) - economic mode
- Basic Specifications - Bulb type
- 250 Watt
- Basic Specifications - Colour
- Grey, white
- Basic Specifications - Colour Support
- 1.07 billion colours
- Basic Specifications - Contrast Ratio
- 300:1 / 14000:1 (dynamic)
- Basic Specifications - Device Type
- 3LCD projector - 720p
- Basic Specifications - Dimensions (WxDxH)
- 36.7 cm x 40 cm x 14.9 cm
- Basic Specifications - EAN
- 8715946605166
- Basic Specifications - Environmental Standards
- TCO Certified Projectors 8
- Basic Specifications - Manufacturer Warranty
- 3-year warranty
- Basic Specifications - Manufacturer's Part Number
- V11H741041
- Basic Specifications - Model
- Epson EB-685Wi
- Basic Specifications - Native Aspect Ratio
- 16:10
- Basic Specifications - Power
- AC 230V (50 - 60 Hz)
- Basic Specifications - Power Consumption Operational
- 354 Watt
- Basic Specifications - Product Description
- Epson EB-685Wi - 3LCD projector - LAN - grey, white
- Basic Specifications - Product Type
- 3LCD projector
- Basic Specifications - Resolution
- Wide XGA (800p)
- Basic Specifications - Speakers
- Speaker(s) - integrated
- Basic Specifications - Video Input
- RGB, composite video LAN
- Basic Specifications - Weight
- 5.9 kg
- Dimensions & Weight - Depth
- 40 cm
- Dimensions & Weight - Height
- 14.9 cm
- Dimensions & Weight - Weight
- 5.9 kg
- Dimensions & Weight - Width
- 36.7 cm
- Environmental Parameters - Humidity Range Operating
- 20 - 80%
- Environmental Parameters - Max Operating Temperature
- 35 °C
- Environmental Parameters - Min Operating Temperature
- 5 °C
- Environmental Parameters - Sound Emission
- 35 dBA
- Environmental Parameters - Sound Emission (Economic Mode)
- 30 dBA
- Environmental Standards - TCO Certified
- TCO Certified Projectors 8

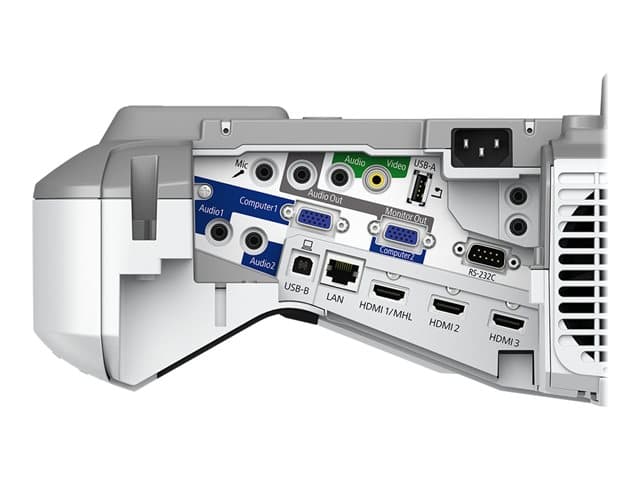

- Expansion / Connectivity - Interfaces
- 1 x component video / RGB input - 15 pin HD D-Sub (HD-15) ¦ 1 x composite video input - RCA ¦ 1 x Mobile High-Definition Link (MHL) / HDMI ¦ 2 x HDMI input - 19 pin HDMI Type A ¦ 1 x USB 2.0 - 4 pin USB Type A ¦ 1 x USB 2.0 - 4 pin USB Type B ¦ 3 x audio line-in - mini-phone stereo 3.5 mm ¦ 1 x microphone ¦ 1 x audio line-out - mini-phone stereo 3.5 mm ¦ 1 x serial RS-232C - 9 pin D-Sub (DB-9) ¦ 1 x network - RJ-45 ¦ 1 x VGA input / output - 15 pin HD D-Sub (HD-15) ¦ 1 x Sync in ¦ 1 x Sync out
- General - Built-in Devices
- Speaker
- General - Device Type
- 3LCD projector - 720p
- General - Enclosure Colour
- Grey, white
- General - Networking
- Ethernet
- Lens - Focus Type
- Manual
- Lens - Horizontal Keystone Correction
- -3 / +3
- Lens - Keystone Correction Direction
- Horizontal, vertical
- Lens - Lens Aperture
- F/1.6
- Lens - Vertical Keystone Correction
- -3 / +3
- Manufacturer Warranty - Service & Support
- Limited warranty - 3 years / 8000 hours - on-site ¦ Limited warranty - lamp - 1 year / 1000 hours
- Miscellaneous - Cables Included
- 1 x USB cable
- Miscellaneous - Included Accessories
- Wall mounting kit, pen tray, wireless remote control, interactive pens
- Miscellaneous - Mounting Kit
- Included
- Miscellaneous - Security Features
- Security lock slot (cable lock sold separately), password protection
- Power - Power Consumption Operational
- 354 Watt
- Power - Power Consumption Stand by
- 0.39 Watt
- Power - Power Source
- AC
- Power - Voltage Required
- AC 230V (50 - 60 Hz)
- Projector - Brightness (Colour)
- 3500 lumens
- Projector - Brightness (Reduced)
- 2900 lumens
- Projector - Brightness (White)
- 3500 lumens
- Projector - Bulb life cycle
- Up to 5000 hour(s) - normal mode ¦ Up to 10000 hour(s) - economic mode
- Projector - Bulb type
- 250 Watt
- Projector - Colour Support
- 1.07 billion colours
- Projector - Contrast Ratio
- 300:1 / 14000:1 (dynamic)
- Projector - Digital Zoom Factor
- 1.35x
- Projector - Features
- sRGB colour profile, Blackboard Mode, EPSON 3LCD technology, Whiteboard Mode, Split Screen, Automatic Brightness Adjustment, Dynamic Lamp Control, Dynamic Mode, Theater Mode
- Projector - Image Size
- 152 cm - 254 cm
- Projector - Native Aspect Ratio
- 16:10
- Projector - Projection Distance
- 0.4 m - 0.6 m
- Projector - Resolution
- WXGA - WXGA (1280 x 800)
- Projector - Throw Ratio
- 0.28:1
- Software / System Requirements - Software Included
- Epson Easy Interactive Tools, EasyMP Monitor, EasyMP Multi PC Projection
- Speakers - Output Power / Channel
- 16 Watt
- Speakers - Sound Output Mode
- Mono
- Speakers - Speakers
- 1 x mixed channel
- Speakers - Type
- Integrated
- Video Input - Analogue video Signal
- RGB, composite video
- Video Input - LAN and Wireless Image Transferring Protocols
- Wired LAN
- Video Input - Video Interfaces
- VGA, HDMI, composite video, MHL
