- Basic Specifications - EAN
- 4719331874346
- Basic Specifications - Manufacturer's Part Number
- 127364

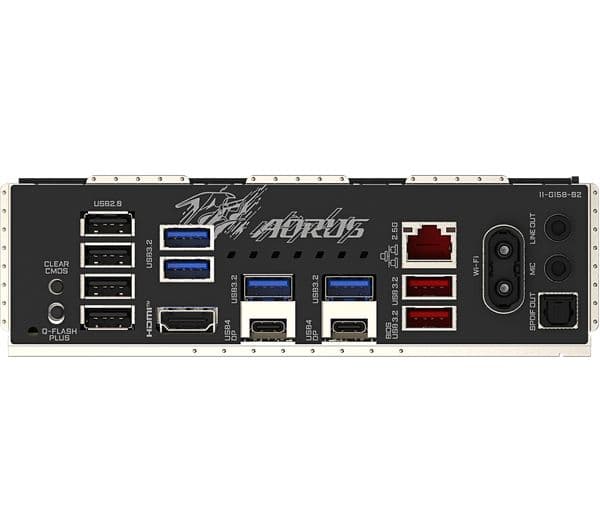

- External connectivity - Audio
- - 3.5 mm jack x 2- Optical S/PDIF Out x 1
- External connectivity - LAN
- Realtek 2.5GbE LAN chip (2.5 Gbps / 1 Gbps / 100 Mbps)
- External connectivity - USB
- - USB 2.0 x 8- USB 3.2 Gen 1 x 4- USB 3.2 Gen 2 (red) x 2- USB Type-C x 3
- External connectivity - Video output
- - HDMI x 2- DisplayPort x 2
- General - Box contents

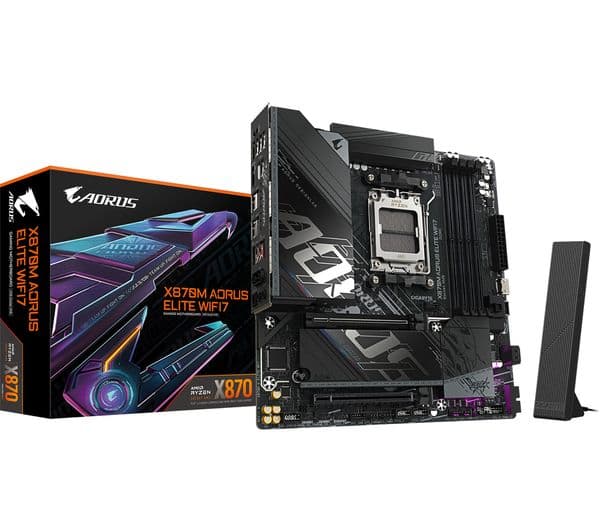

- - Gigabyte Aorus Elite X870M AM5 WiFi7 Motherboard- Manual- Quick Installation Guide- Antenna x 1- SATA cables x 2- G Connector x 1- M.2 thick/thin rubber pads x 2
- General - Colour
- Black
- General - Dimensions
- 70 x 244 x 244 mm (H x W x D)
- General - Manufacturer’s guarantee
- 3 years
- General - Weight
- 2.1 kg
- Internal connectivity - BIOS
- AMI UEFI BIOS
- Internal connectivity - Buttons
- - Power button- Reset button- Clear CMOS jumper & button- Q-Flash Plus
- Internal connectivity - Case
- - Front panel- Front audio- USB headers- TPM header- RGB headers
- Internal connectivity - Cooling
- - CPU fan header x 1- CPU pump header x 1- System fan headers x 3- System fan/water pump header x 1
- Internal connectivity - Expansion slots
- - PCIe 5.0 (x16) x 1- PCIe 4.0 (x4) x 1
- Internal connectivity - Other internal connections
- - Addressable RGB LED strip headers x 3- RGB LED strip header x 1- TPM header x 1
- Internal connectivity - Power
- - 24-pin EATX x 1- 8-pin ATX x 1
- Internal connectivity - Sensors
- - Voltage- Temperature- Fan speed- Water flow
- Internal connectivity - Storage slots
- - SATA x 2 (6 GB/s)- M.2 x 2
- Overview - Chipset
- AMD X870
- Overview - Cooling features
- - CPU fan- Water cooling pump- System fan headers
- Overview - Form factor
- microATX
- Overview - Memory slots
- 4 x DIMM (Max RAM: 256 GB)
- Overview - Memory standard
- DDR5
- Overview - Operating systems supported
- Windows 11 or later
- Overview - Processor models supported
- AMD Ryzen 7000 / 8000 / 9000 Series processors
- Overview - Socket
- AMD AM5
