- Basic Specifications - Capacity
- 480 GB
- Basic Specifications - Data Transfer Rate
- 600 MBps
- Basic Specifications - Dimensions (WxDxH)
- 69.85 mm x 100.18 mm x 7 mm
- Basic Specifications - EAN
- 5055288441415
- Basic Specifications - Features
- Shock resistant, TRIM support, Wear Leveling Support, Ultra-efficient Block Management, Non-volatile Flash Memory, Marvell 1120 controller, S.M.A.R.T.
- Basic Specifications - Form Factor
- 2.5"
- Basic Specifications - Interface
- SATA 6Gb/s
- Basic Specifications - Manufacturer Warranty
- 3-year warranty
- Basic Specifications - Manufacturer's Part Number
- INSSD480GS625V2
- Basic Specifications - Model
- Integral V Series Version 2
- Basic Specifications - NAND Flash Memory Type
- Triple-level cell (TLC)
- Basic Specifications - Product Description

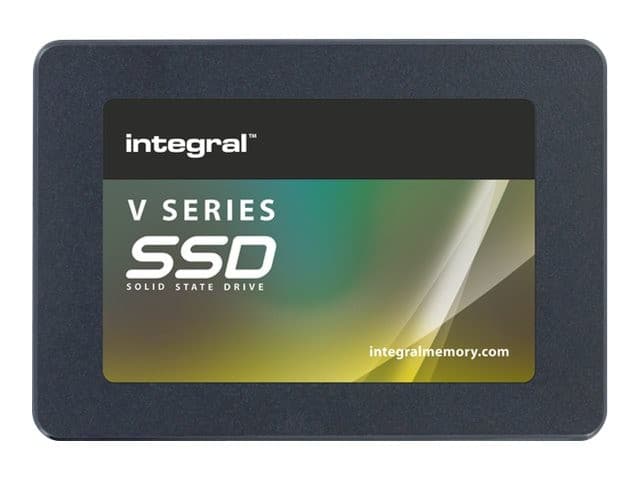

- Integral V Series Version 2 - SSD - 480 GB - SATA 6Gb/s
- Basic Specifications - Type
- Solid state drive - internal
- Basic Specifications - Weight
- 45 g
- Dimensions & Weight (Shipping) - Shipping Depth
- 1.3 cm
- Dimensions & Weight (Shipping) - Shipping Height
- 13.3 cm
- Dimensions & Weight (Shipping) - Shipping Weight
- 64 g
- Dimensions & Weight (Shipping) - Shipping Width
- 11.7 cm
- Environmental Parameters - Humidity Range Operating
- 5 - 95% (non-condensing)
- Environmental Parameters - Max Operating Temperature
- 70 °C
- Environmental Parameters - Max Storage Temperature
- 85 °C
- Environmental Parameters - Min Operating Temperature
- 0 °C
- Environmental Parameters - Min Storage Temperature
- -40 °C
- Environmental Parameters - Shock Tolerance (operating)
- 1500 g @ 0.5 ms half-sine wave
- Environmental Parameters - Vibration Tolerance (operating)
- 3.08 g @ 7-800 Hz
- Expansion & Connectivity - Compatible Bay
- 2.5"
- Expansion & Connectivity - Interfaces
- 1 x SATA 6 Gb/s - 7 pin Serial ATA
- General - Capacity
- 480 GB
- General - Depth
- 100.18 mm
- General - Device Type
- Solid state drive - internal
- General - Features
- Shock resistant, TRIM support, Wear Leveling Support, Ultra-efficient Block Management, Non-volatile Flash Memory, Marvell 1120 controller, S.M.A.R.T.
- General - Form Factor
- 2.5"
- General - Height
- 7 mm
- General - Interface
- SATA 6Gb/s
- General - NAND Flash Memory Type
- Triple-level cell (TLC)
- General - Weight
- 45 g
- General - Width
- 69.85 mm
- Manufacturer Warranty - Service & Support
- Limited warranty - 3 years
- Miscellaneous - Compliant Standards
- FCC, RoHS
- Miscellaneous - Included Accessories
- 7 mm to 9 mm adapter
- Performance - Drive Transfer Rate
- 600 MBps (external)
- Performance - Internal Data Rate
- 520 MBps (read) / 470 MBps (write)
- Performance - SSD Endurance
- 160 TB
- Power - Power Consumption
- 1650 mW (read) ¦ 1800 mW (write) ¦ 475 mW (idle)
- Reliability - MTBF
- 1,500,000 hours
