- Audio - Audio Codec
- Realtek ALC892
- Audio - Compliant Standards
- High Definition Audio
- Audio - Type
- HD Audio (8-channel)
- Basic Specifications - Audio
- HD Audio (8-channel)
- Basic Specifications - Chipset Type
- AMD B550 / Nuvoton NCT6687
- Basic Specifications - Compatible Processors
- Ryzen (supports 3rd Generation Ryzen and New Generation Ryzen with Radeon Graphics)
- Basic Specifications - EAN
- 4719072731885
- Basic Specifications - Form Factor
- ATX
- Basic Specifications - LAN
- Gigabit Ethernet
- Basic Specifications - Manufacturer's Part Number
- MPG B550 GAMING PLUS
- Basic Specifications - Max RAM Size
- 128 GB
- Basic Specifications - Model
- MSI MPG B550 GAMING PLUS
- Basic Specifications - Processor Socket
- AMD AM4
- Basic Specifications - Product Description
- MSI MPG B550 GAMING PLUS - motherboard - ATX - Socket AM4 - AMD B550
- Basic Specifications - Product Type
- Motherboard - ATX
- Basic Specifications - RAM Supported
- 4 DIMM slots - DDR4, non-ECC, ECC (operate in non-ECC mode), unbuffered
- Basic Specifications - Storage Ports
- 6 x SATA-600 (RAID), 2 x M.2
- Basic Specifications - USB / FireWire Ports
- 1 x USB-C Gen 2 + 1 x USB 3.2 Gen 2 + 2 x USB 3.2 Gen 1 + 2 x USB 2.0 + (1 x USB-C Gen 1 + 2 x USB 3.2 Gen 1 + 4 x USB 2.0 via headers)
- Expansion / Connectivity - Expansion Slots
- 1 x CPU ¦ 4 x DIMM 288-pin ¦ 1 x PCIe 4.0 x16 ¦ 1 x PCIe 3.0 x16 (x4 mode) ¦ 2 x PCIe 3.0 x1

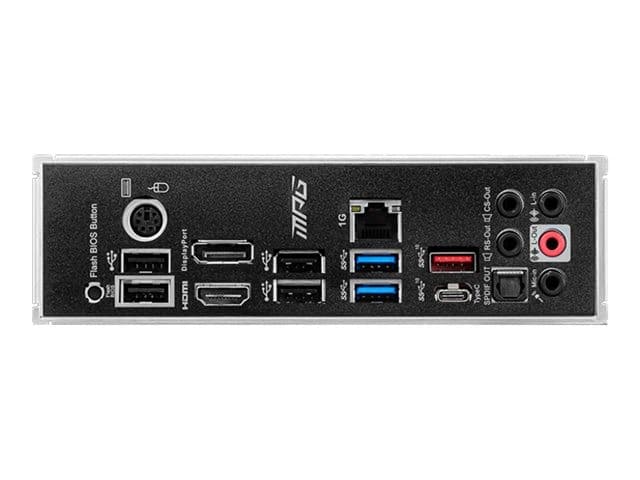

- Expansion / Connectivity - Interfaces
- 1 x LAN (Gigabit Ethernet) ¦ 1 x audio line-in - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x TOSLINK ¦ 2 x USB 3.2 Gen 1 ¦ 1 x USB 3.2 Gen 2 ¦ 1 x audio line-out (center/subwoofer) - mini-jack ¦ 1 x audio line-out (rear) - mini-jack ¦ 1 x USB-C Gen2 ¦ 1 x PS/2 keyboard / mouse ¦ 4 x USB 2.0 ¦ 1 x HDMI ¦ 1 x DisplayPort
- Expansion / Connectivity - Internal Interfaces
- 4 x USB 2.0 - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 1 x USB-C Gen 1 - header ¦ 1 x audio - header
- Expansion / Connectivity - Power Connectors
- 24-pin main power connector, 8-pin ATX12V connector
- Expansion / Connectivity - Storage Interfaces
- SATA-600 -connectors: 6 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 ¦ SATA-600 / PCIe 4.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 ¦ PCIe 3.0 -connectors: 1 x M.2 - RAID 0 / RAID 1
- Features - Hardware Features
- AMD CrossFireX technology support, MSI Audio Boost, Debug LED, MSI Mystic Light, M.2 Shield FROZR, pre-mounted I/O shield, MSI Core Boost, MSI PCIe Steel Slot
- Features - Hardware Monitoring
- CPU core temperature, chassis temperature, CPU fan tachometer, chassis fan tachometer
- General - Chipset Type
- AMD B550 / Nuvoton NCT6687
- General - Compatible Processors
- Ryzen (supports 3rd Generation Ryzen and New Generation Ryzen with Radeon Graphics)
- General - Max Processors Qty
- 1
- General - Processor Socket
- Socket AM4
- General - Product Type
- Motherboard - ATX
- LAN - Network Controller
- Realtek RTL8111H
- LAN - Network Interfaces
- Gigabit Ethernet
- Miscellaneous - Cables Included
- 2 x Serial ATA cable
- Miscellaneous - Depth
- 24.4 cm
- Miscellaneous - Included Accessories
- Case badge
- Miscellaneous - Software Included
- Drivers & Utilities
- Miscellaneous - Width
- 30.5 cm
- Supported RAM - Bus Clock
- 2400 MHz, 1866 MHz, 2133 MHz, 2800 MHz, 3000 MHz, 2666 MHz, 2933 MHz, 3466 MHz (O.C.), 3733 MHz (O.C.), 3600 MHz (O.C.), 3866 MHz (O.C.), 4000 MHz (O.C.), 4133 MHz (O.C.), 4400 MHz (O.C.), 4266 MHz (O.C.), 3200 MHz, 3066 MHz
- Supported RAM - Features
- Dual channel memory architecture, supported ECC modules operate in non-ECC mode, A-XMP support
- Supported RAM - Max Size
- 128 GB
- Supported RAM - Registered or Buffered
- Unbuffered
- Supported RAM - Supported RAM Integrity Check
- Non-ECC, ECC (operate in non-ECC mode)
- Supported RAM - Technology
- DDR4
