- Basic Specifications - EAN
- 4711377059572
- Basic Specifications - Manufacturer's Part Number
- 123296

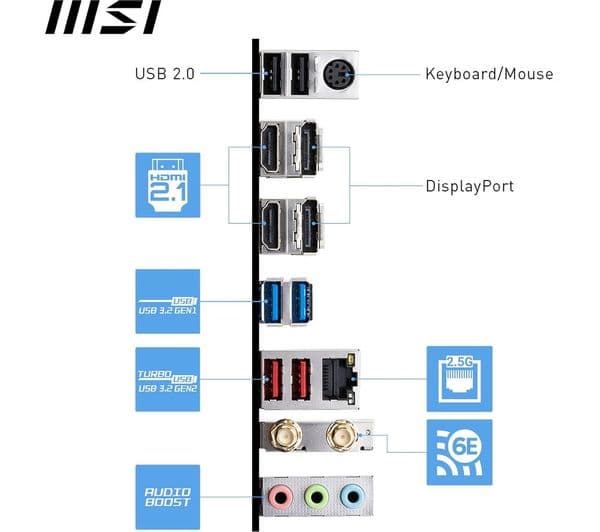

- External connectivity - Audio
- - Realtek® ALC897 Codec - 7.1-Channel High-Definition Audio
- External connectivity - LAN
- Gigabit Ethernet port x 1
- External connectivity - USB
- - USB Type C x 1- USB 2.0 x 4- USB 3.0 x 4
- External connectivity - Video output
- - HDMI x 2- DisplayPort x 2
- General - Box contents

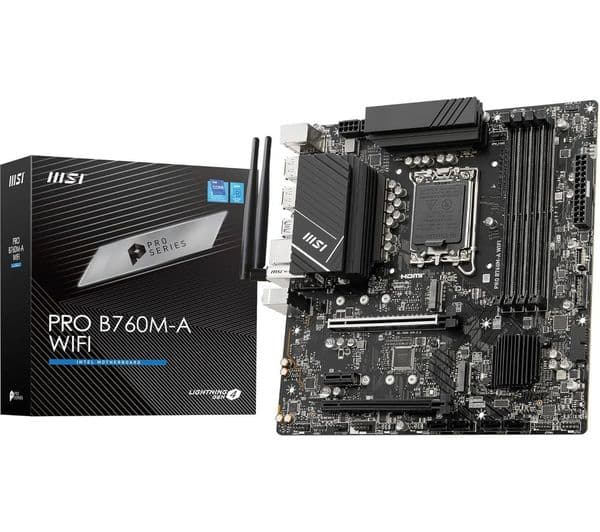

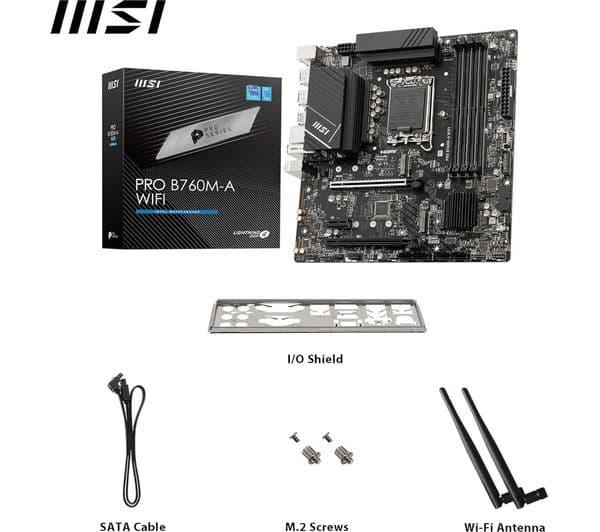

- - MSI PRO B760M-A WIFI DDR5 LGA1700 Motherboard- M.2 screw/standoff sets x 2- SATA cable- IO shield- WiFi Antenna- Quick installation guide
- General - Colour
- Black
- General - Dimensions
- 243.84 x 243.84 mm (H x W)
- General - Manufacturer’s guarantee
- 3 years
- General - Weight
- 1.28 kg
- Internal connectivity - Buttons
- - Power LED- HDD LED
- Internal connectivity - Cooling
- - CPU fan x 1- System fan x 2- Pump fan x 1
- Internal connectivity - Expansion slots
- - PCIe 4.0 (x16 slot) x 2- PCIe 3.0 (x1 slot) x 1
- Internal connectivity - Other internal connections
- - RGB LED Connector x 1- EZ Debug LED x 4- Front panel audio connector x 1- System panel connectors x 2- Chassis intrusion connector x 1- TPM module connector x 1- Tuning controller connector x 1- TBT connector x 1- Addressable V2 RGB LED connector x 2- RGB LED 4-pin x 1
- Internal connectivity - Power
- - Power connector (ATX_PWR) x 1- Power connector (CPU_PWR) x 2
- Internal connectivity - Storage slots
- - SATA x 4 (6 Gbps)- M.2 Gen4 x 2 (64 Gbps)
- Internal connectivity - USB
- - USB 2.0 x 2- USB 3.0 x 4
- Overview - Chipset
- Intel® B760
- Overview - Cooling features
- - Fan cooling- Liquid cooling- Extended PWM heatsink- Plated VRM heatsink- Chipset heatsink- MOSFET thermal pads- M.2 Shield Frozr
- Overview - Form factor
- Micro ATX
- Overview - Memory slots
- 4 x DIMM (Max RAM: 256 GB)
- Overview - Memory standard
- DDR5
- Overview - Operating systems supported
- Windows 10 or later
- Overview - Processor models supported
- 12th / 13th / 14th generation Intel® Core™ / Pentium® Gold / Celeron® processors
- Overview - Socket
- Intel® LGA1700
