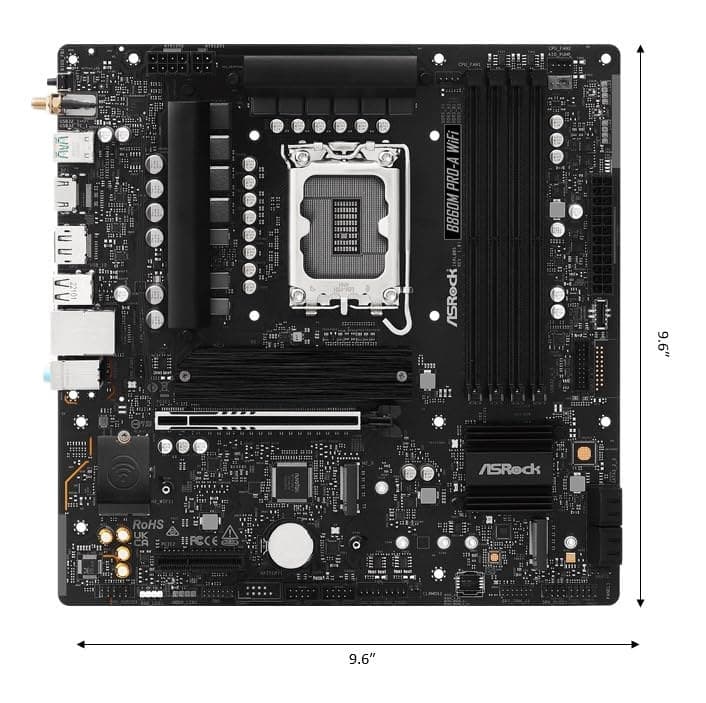

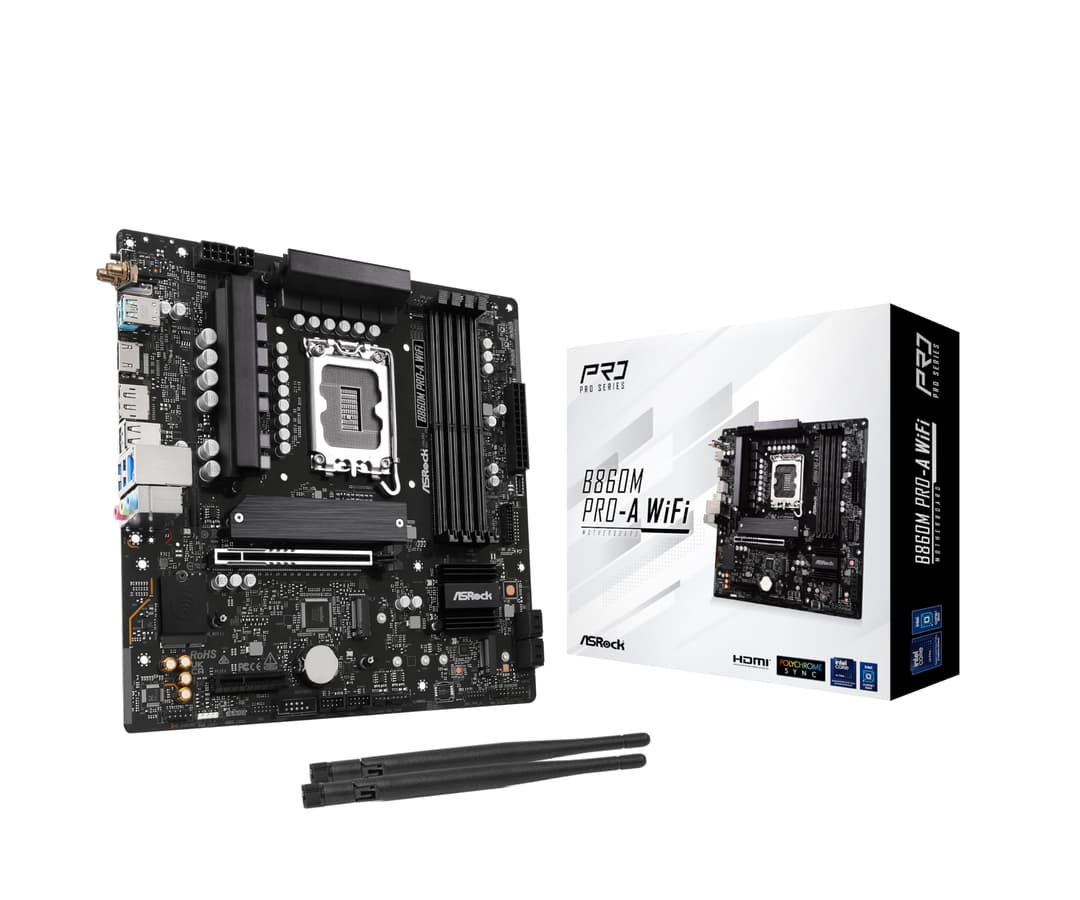

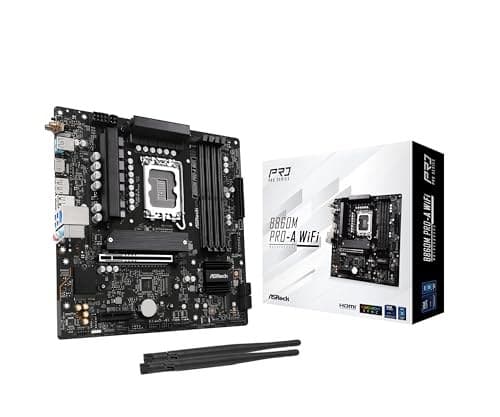

ASRock B860M Pro-A WiFi Micro-ATX motherboard for Intel Core Ultra (Series 2) processors on the LGA1851 socket, built on the Intel B860 chipset. It has a 10+1+1+1+1 power phase design with Dr.MOS, four DDR5 DIMM slots (dual channel, up to 8666+ MHz overclocked) and HDMI plus DisplayPort outputs for integrated graphics. Expansion is one PCIe 5.0 x16 slot and one PCIe 4.0 x4 slot, with one Blazing M.2 (PCIe Gen5 x4), two Hyper M.2 (PCIe Gen4 x4) and four SATA3 ports for storage. Connectivity includes Realtek 2.5G LAN, Wi-Fi 6E (802.11ax) with Bluetooth, a rear USB 3.2 Gen2x2 Type-C port, a front USB 3.2 Gen1 Type-C header, five USB 3.2 Gen1 and six USB 2.0 ports, and Realtek ALC897 7.1-channel audio. BIOS Flashback is supported.
Full specification
What's inside
Audio Channels
7.1 channels
Audio Chipset
Realtek ALC897
BIOS Flashback
Yes
Bluetooth
Yes
Brand
ASRock
Chipset
Intel B860
Compatible Processors
Intel Core Ultra (Series 2)
Ethernet
Realtek 2.5G LAN
Expansion Slots
1 x PCIe 5.0 x16, 1 x PCIe 4.0 x4
Form Factor
Micro-ATX
M.2 Slots
1 x PCIe Gen5 x4, 2 x PCIe Gen4 x4
Maximum Internal Memory
256 GB
Memory Channels
Dual-channel
Memory Slots
4
Memory Standard
DDR5
Model
B860M Pro-A WiFi
MPN
90-MXBRS0-A0UAYZ
SATA III Connectors
4
Socket Type
LGA 1851
USB
1 x USB 3.2 Gen2x2 Type-C (rear), 1 x USB 3.2 Gen1 Type-C (front header), 5 x USB 3.2 Gen1, 6 x USB 2.0
