- Basic Specifications - Batteries Qty
- 4 (supported)
- Basic Specifications - Battery
- Lead Acid - 9 Ah
- Basic Specifications - Colour
- Black, silver
- Basic Specifications - Device Type
- UPS - rack-mountable / external
- Basic Specifications - Dimensions (WxDxH)
- 49.8 cm x 58.5 cm x 24 cm
- Basic Specifications - EAN
- 3553340620850
- Basic Specifications - Environmental Standards
- ENERGY STAR
- Basic Specifications - Included Accessories
- Tower stand
- Basic Specifications - Input Connectors
- 1 x power IEC 60320 C14
- Basic Specifications - Input Voltage
- AC 150 - 294 V
- Basic Specifications - Input Wiring
- 1-phase
- Basic Specifications - Manufacturer Warranty
- 3-year warranty
- Basic Specifications - Manufacturer's Part Number
- 5PX1500IRT2UG2BS
- Basic Specifications - Model
- Eaton 5PX G2
- Basic Specifications - Networking
- RS-232, USB, Ethernet 10/100/1000
- Basic Specifications - Output connectors
- 8 x power IEC 60320 C13
- Basic Specifications - Output Voltage
- AC 200/208/220/230/240 V + 6% / - 10%
- Basic Specifications - Power Capacity
- 1500 Watt / 1500 VA
- Basic Specifications - Product Description

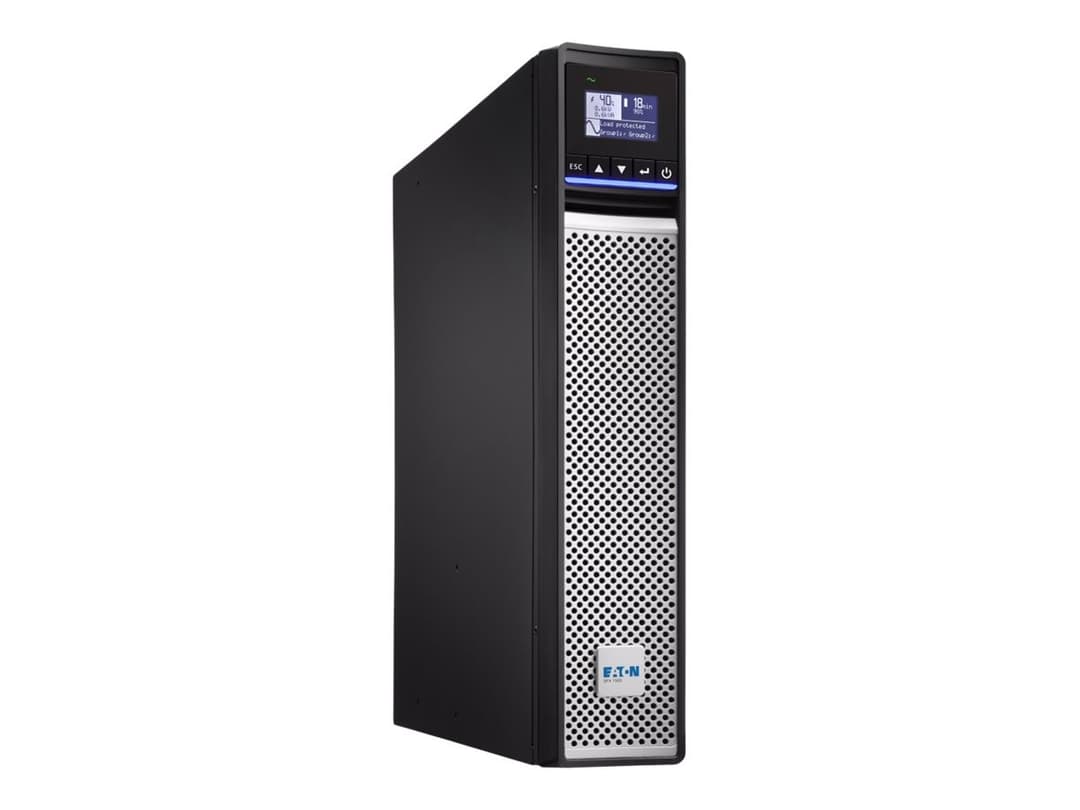

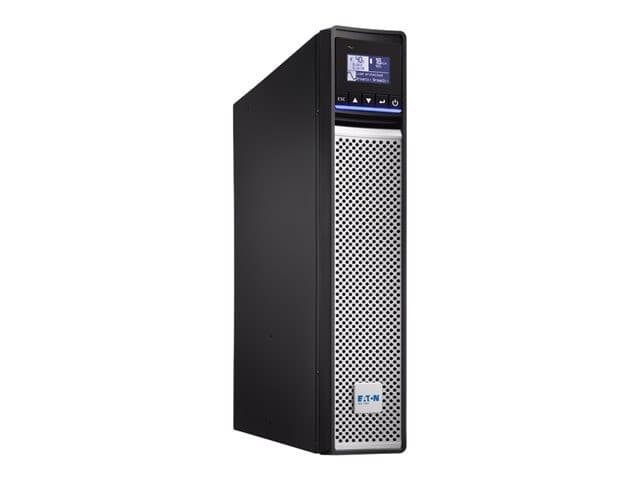

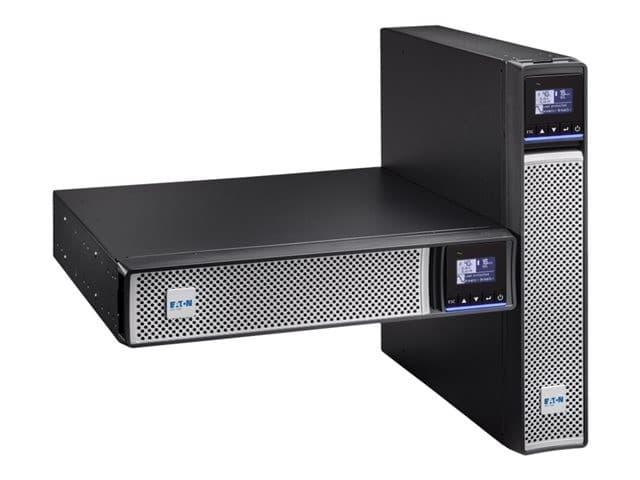

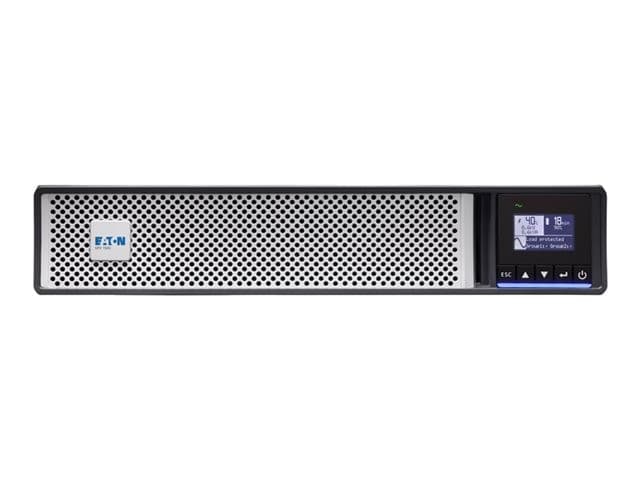

- Eaton 5PX G2 - UPS - 1500 Watt - 1500 VA
- Basic Specifications - Product Type
- UPS
- Basic Specifications - Rack Size
- 2U
- Basic Specifications - Remote Management Protocol
- SNMP
- Basic Specifications - Weight
- 22.5 kg
- Battery - Capacity
- 9 Ah
- Battery - Features
- Maintenance free
- Battery - Quantity
- 4 (supported)
- Battery - Technology
- Lead Acid
- Battery - Voltage Provided
- 12 V
- Dimensions & Weight - Depth
- 58.5 cm
- Dimensions & Weight - Height
- 24 cm
- Dimensions & Weight - Weight
- 22.5 kg
- Dimensions & Weight - Width
- 49.8 cm
- Environmental Parameters - Humidity Range Operating
- 0 - 90% (non-condensing)
- Environmental Parameters - Max Operating Temperature
- 40 °C
- Environmental Parameters - Min Operating Temperature
- 0 °C
- Environmental Standards - ENERGY STAR
- Yes
- Expansion / Connectivity - Expansion Slots
- 1 (total) / 0 (free) x Expansion Slot
- Expansion / Connectivity - Interfaces
- 1 x management (RS-232) - RJ-45 ¦ 1 x management (USB) - 4 pin USB Type B ¦ 1 x management (Gigabit Ethernet) - RJ-45 ¦ Remote power (on/off) - mini terminal block ¦ Relay output - mini terminal block
- General - Colour
- Black, silver
- General - Device Type
- UPS - rack-mountable / external
- General - Height (Rack Units)
- 2U
- Manufacturer Warranty - Service & Support
- Limited warranty - electrical components and functions - 3 years ¦ Limited warranty - batteries - 2 years
- Miscellaneous - Cables Included
- 2 x power cable (IEC) ¦ Power cable
- Miscellaneous - Compliant Standards
- CAN/CSA C22.2, CM, cTUVus, EAC, EN 62040-1, EN 62040-2, EN 62040-3, IEC 62040-1, IEC 62040-2, IEC 62040-3, REACH, RoHS, UKCA, UL 1778
- Miscellaneous - Features
- Automatic Voltage Regulation (AVR), LCD display, Advance Battery Management (ABM)
- Miscellaneous - Included Accessories
- Tower stand
- Miscellaneous - Rack Mounting Kit
- Included
- Networking - Remote Management Interface
- RS-232, USB, Ethernet 10/100/1000
- Networking - Remote Management Protocol
- SNMP
- Power Device - Frequency Provided
- 50/60 Hz
- Power Device - Frequency Required
- 47 - 70 Hz
- Power Device - Input Connectors
- 1 x power IEC 60320 C14
- Power Device - Input Voltage
- AC 150 - 294 V
- Power Device - Input Voltage Range
- AC 160 - 294 V
- Power Device - Input Voltage Range (Adjustable)
- AC 150 - 294 V
- Power Device - Input Wiring
- 1-phase
- Power Device - Output Voltage
- AC 200/208/220/230/240 V + 6% / - 10% - 50/60 Hz
- Power Device - Output Waveform
- Sinewave
- Power Device - Power Capacity
- 1500 Watt / 1500 VA
- Power Device - Power Output Connectors Details
- 8 x power IEC 60320 C13
- Power Device - UPS Technology
- Line interactive
- Sustainability Information - ENERGY STAR
- Yes
