- Basic Specifications - Batteries Qty
- 2
- Basic Specifications - Battery
- Lead Acid - 9 Ah
- Basic Specifications - Colour
- Black
- Basic Specifications - Device Type
- UPS - external
- Basic Specifications - Dimensions (WxDxH)
- 8.7 cm x 38.2 cm x 25 cm
- Basic Specifications - EAN
- 3553340620201
- Basic Specifications - Included Accessories
- BS cord 10A
- Basic Specifications - Input Connectors
- 1 x power IEC 60320 C14
- Basic Specifications - Input Voltage
- AC 220/230/240 V
- Basic Specifications - Input Wiring
- 1-phase
- Basic Specifications - Manufacturer Warranty
- 2-year warranty
- Basic Specifications - Manufacturer's Part Number
- 5S1500iBS
- Basic Specifications - Model
- Eaton 5S 1500i
- Basic Specifications - Networking
- USB
- Basic Specifications - Output connectors
- 4 x power IEC 60320 C13 (surge) ¦ 4 x power IEC 60320 C13 (UPS and surge)
- Basic Specifications - Output Voltage
- AC 184-276 V
- Basic Specifications - Power Capacity
- 900 Watt / 1500 VA
- Basic Specifications - Product Description

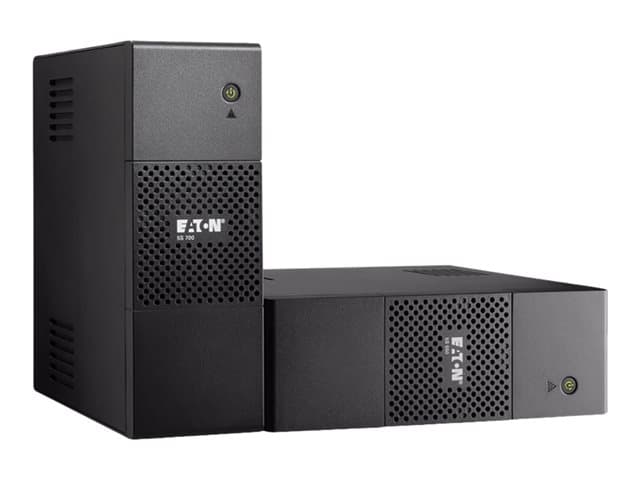

- Eaton 5S 1500i - UPS - 900 Watt - 1500 VA
- Basic Specifications - Product Type
- UPS
- Basic Specifications - Run Time (Up To)
- 2 min at full load
- Basic Specifications - Weight
- 12.5 kg
- Battery - Capacity
- 9 Ah
- Battery - Features
- Sealed
- Battery - Quantity
- 2
- Battery - Run Time (Up To)
- 2 min at full load ¦ 11 min at half load ¦ 8 min at 70% load
- Battery - Technology
- Lead Acid
- Battery - Voltage Provided
- 12 V
- Dimensions & Weight - Depth
- 38.2 cm
- Dimensions & Weight - Height
- 25 cm
- Dimensions & Weight - Weight
- 12.5 kg
- Dimensions & Weight - Width
- 8.7 cm
- Environmental Parameters - Humidity Range Operating
- 0 - 85%
- Environmental Parameters - Max Operating Temperature
- 35 °C
- Environmental Parameters - Min Operating Temperature
- 0 °C
- Expansion / Connectivity - Interfaces
- 1 x management (USB) - 4 pin USB Type B
- General - Colour
- Black
- General - Device Type
- UPS - external
- Manufacturer Warranty - Service & Support
- Limited warranty - 2 years ¦ Limited warranty - batteries - 2 years
- Miscellaneous - Cables Included
- USB cable ¦ 2 x power cable (IEC)
- Miscellaneous - Compliant Standards
- CB, IEC 62040-1, EN 62040-1, IEC/EN 62040-4
- Miscellaneous - Features
- Automatic Voltage Regulation (AVR), deep discharge protection, cold-start function, booster technology, fader technology
- Miscellaneous - Included Accessories
- BS cord 10A
- Networking - Remote Management Interface
- USB
- Power Device - Circuit Protection
- Circuit breaker
- Power Device - Dataline Surge Protection
- Network/phone line - RJ-45/RJ-11 - 1 input line / 1 output line
- Power Device - Efficiency
- 97%
- Power Device - Frequency Required
- 46 - 70 Hz
- Power Device - Input Connectors
- 1 x power IEC 60320 C14
- Power Device - Input Voltage
- AC 220/230/240 V
- Power Device - Input Voltage Range
- AC 175 - 275 V
- Power Device - Input Wiring
- 1-phase
- Power Device - Output Voltage
- AC 184-276 V
- Power Device - Power Capacity
- 900 Watt / 1500 VA
- Power Device - Power Factor (PF)
- 0.6
- Power Device - Power Output Connectors Details
- 4 x power IEC 60320 C13 (surge) ¦ 4 x power IEC 60320 C13 (UPS and surge)
- Power Device - UPS Technology
- Line interactive
