- Basic Specifications - Battery
- Lead Acid - 9 Ah
- Basic Specifications - Colour
- Black
- Basic Specifications - Device Type
- UPS - external
- Basic Specifications - Dimensions (WxDxH)
- 8.2 cm x 28.5 cm x 26 cm
- Basic Specifications - EAN
- 7431724376486
- Basic Specifications - Input Connectors
- 1 x power IEC 60320 C14
- Basic Specifications - Input Voltage
- AC 230 V
- Basic Specifications - Manufacturer Warranty
- 3-year warranty
- Basic Specifications - Manufacturer's Part Number
- ELP850IEC
- Basic Specifications - Model

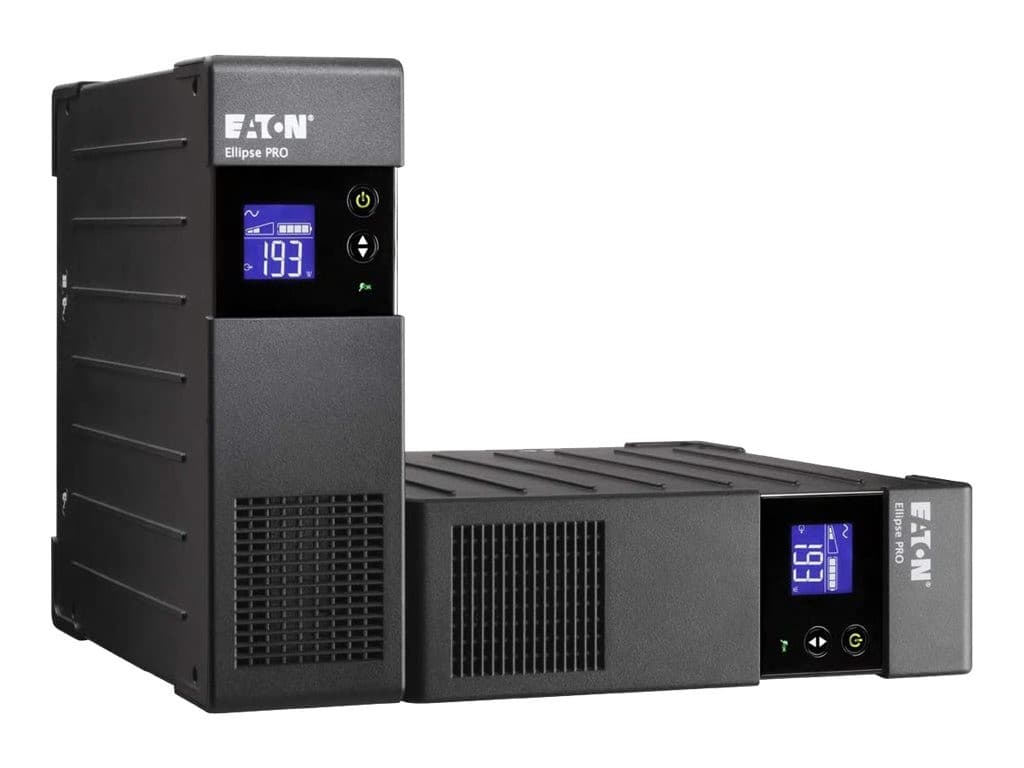

- Eaton Ellipse PRO 850
- Basic Specifications - Networking
- USB
- Basic Specifications - Output Connector(s)
- 3 x power IEC 320 EN 60320 C13 ( UPS and surge ) ¦ 1 x power IEC 320 EN 60320 C13 ( surge )
- Basic Specifications - Output connectors
- 3 x power IEC 60320 C13 (UPS and surge) ¦ 1 x power IEC 60320 C13 (surge)
- Basic Specifications - Output Voltage
- AC 220/230/240 V + 15% / - 20%
- Basic Specifications - Power Capacity
- 510 Watt / 850 VA
- Basic Specifications - Product Description
- Eaton Ellipse PRO 850 - UPS - 510 Watt - 850 VA
- Basic Specifications - Product Type
- UPS
- Basic Specifications - Rack Size
- 19" - 2U
- Basic Specifications - Run Time (Up To)
- 1 min at full load
- Basic Specifications - Weight
- 7.3 kg
- Battery - Capacity
- 9 Ah
- Battery - Run Time (Up To)
- 9 min at half load ¦ 1 min at full load
- Battery - Technology
- Lead Acid
- Dimensions & Weight - Depth
- 28.5 cm
- Dimensions & Weight - Height
- 26 cm
- Dimensions & Weight - Weight
- 7.3 kg
- Dimensions & Weight - Width
- 8.2 cm
- Environmental Parameters - Humidity Range Operating
- 0 - 85%
- Environmental Parameters - Max Operating Temperature
- 35 °C
- Environmental Parameters - Min Operating Temperature
- 0 °C
- Expansion / Connectivity - Interfaces
- 1 x management (USB) - 4 pin USB Type B
- General - Colour
- Black
- General - Device Type
- UPS - external
- General - Height (Rack Units)
- 2U
- General - Rack Size
- 19"
- Manufacturer Warranty - Service & Support
- Limited warranty - 3 years ¦ Limited warranty - batteries - 3 years
- Miscellaneous - Cables Included
- USB cable - external
- Miscellaneous - Compliant Standards
- CB, IEC 62040-1-1, IEC 62040-2, IEC 61643-1, EN 62040-1-1, EN 62040-2
- Miscellaneous - Features

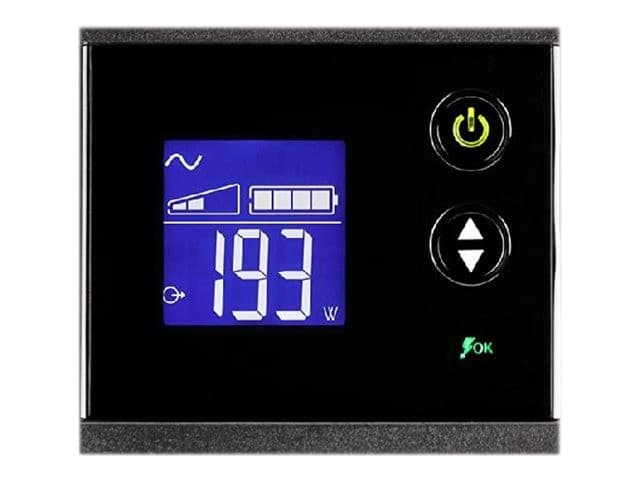

- Wall mountable, LCD display, Automatic Voltage Regulation (AVR), deep discharge protection, cold-start function, EcoControl Master/Control outlets
- Miscellaneous - Rack Mounting Kit
- Optional
- Networking - Remote Management Interface
- USB
- Power Device - Circuit Protection
- Circuit breaker
- Power Device - Dataline Surge Protection
- Network/phone line - RJ-45/RJ-11 - 1 input line / 1 output line
- Power Device - Frequency Provided
- 50/60 Hz
- Power Device - Frequency Required
- 50/60 Hz
- Power Device - Input Connectors
- 1 x power IEC 60320 C14
- Power Device - Input Voltage
- AC 230 V
- Power Device - Input Voltage Range
- AC 165 - 285 V
- Power Device - Input Voltage Range (Adjustable)
- AC 150 - 285 V
- Power Device - Output Voltage
- AC 220/230/240 V + 15% / - 20% - 50/60 Hz
- Power Device - Power Capacity
- 510 Watt / 850 VA
- Power Device - Power Output Connectors Details
- 3 x power IEC 60320 C13 (UPS and surge) ¦ 1 x power IEC 60320 C13 (surge)
- Power Device - Surge Suppression
- Yes
- Power Device - UPS Technology
- Line interactive
- Software / System Requirements - Software Included
- Eaton UPS Companion
