- Basic Specifications - EAN
- 4711377279642
- Basic Specifications - Manufacturer's Part Number
- 126147

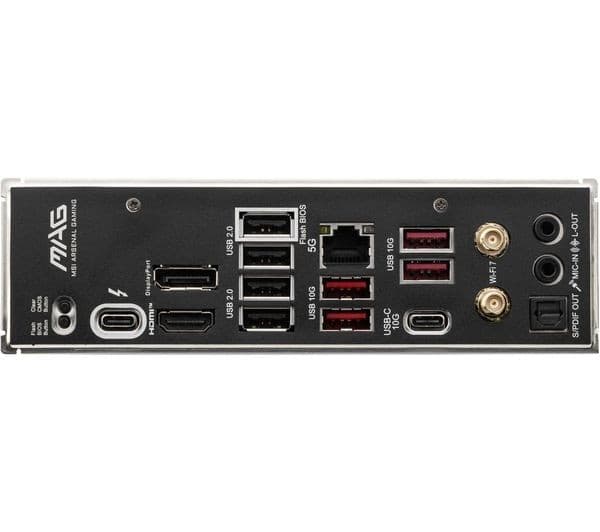

- External connectivity - Audio
- - Realtek® ALC897 Codec- 7.1-Channel High-Definition Audio
- External connectivity - LAN
- - Intel® Killer™ Wi-Fi 7- Bluetooth 5.4
- External connectivity - USB
- - USB Type-C (40Gbps) x 1- USB Type-A (10Gbps) x 4- USB Type-C (10Gbps) x 2- USB Type-A (5Gbps) x 2- USB 2.0 x 8
- External connectivity - Video output
- - HDMI x 1- DisplayPort x 1

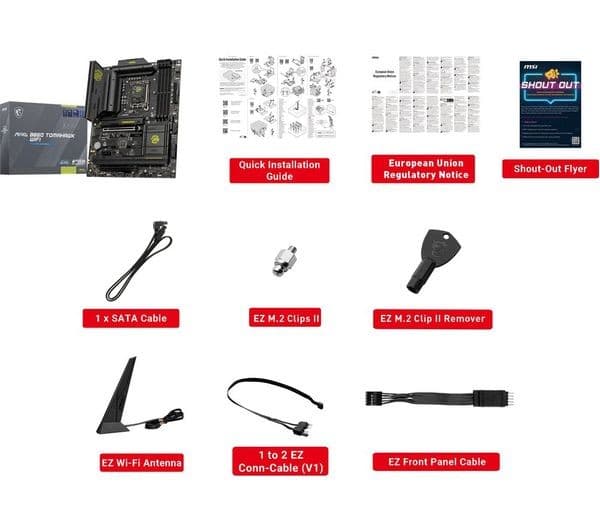

- General - Box contents
- MSI MAG B860 TOMAHAWK WIFI LGA1851 Motherboard
- General - Colour
- Black
- General - Dimensions
- 65 x 243 x 304 mm (H x W x D)
- General - Manufacturer’s guarantee
- 3 years
- Internal connectivity - BIOS
- Flash BIOS
- Internal connectivity - Buttons
- - Power button- Clear CMOS Button
- Internal connectivity - Cooling
- - CPU fan x 1- Combo fan x 1- System fan x 5
- Internal connectivity - Expansion slots
- - PCIe 5.0 (x16 slot) x 1- PCIe 4.0 (x16 slot) x 2
- Internal connectivity - Other internal connections
- - Thunderbolt4 (Type-C) x 1- CPU fan x 1- Combo fan x 1- System fan x 5- Front Panel (JFP) x 2- Chassis Intrusion (JCI) x 1- Front Audio (JAUD) x 1- Tuning Controller connector (JDASH) x 1- Addressable V2 RGB LED connector (JARGB_V2) x 3- RGB LED connector (JRGB) x 2- TPM pin header (support TPM 2.0) x 1- USB 2.0 x 4- USB Type-A (5Gbps) x 2- USB Type-C (10Gbps) x 1
- Internal connectivity - Power
- - Power Connector (ATX_PWR) x 1- Power Connector (CPU_PWR) x 2- Power Connector (PCIE_PWR 8pin) x 1
- Internal connectivity - Storage slots
- - SATA x 4 (6 GB/s) - M.2 Gen4 x 2 (64 GB/s)- M.2 Gen5 X 1 (128 GB/s)
- Overview - Chipset
- Intel® B860
- Overview - Cooling features
- - Frozr AI cooling- Fan cooling- Liquid cooling- Extended PWM heatsink- M.2 Shield Frozr- VRM heatsink- MOSFET thermal pads
- Overview - Form factor
- ATX
- Overview - Memory slots
- 4 x UDIMM (Max RAM: 256 GB)
- Overview - Memory standard
- DDR5
- Overview - Operating systems supported
- Windows 11
- Overview - Processor models supported
- Intel® Core™ Ultra Processors (Series 2)
- Overview - Socket
- Intel® LGA1851
