- Basic Specifications - EAN
- 4711377360906
- Basic Specifications - Manufacturer's Part Number
- 127056
- External connectivity - Audio
- 8-Channel (7.1) HD Audio with Audio Boost 5
- External connectivity - LAN
- - Realtek 5Gbps LAN- Bluetooth 5.4
- External connectivity - USB
- - USB Type-C (20Gbps) x 1- USB Type-C (10Gbps) x 2- USB Type-A (5Gbps) x 4- USB 2.0 x 2
- External connectivity - Video output
- HDMI 2.1 x 1

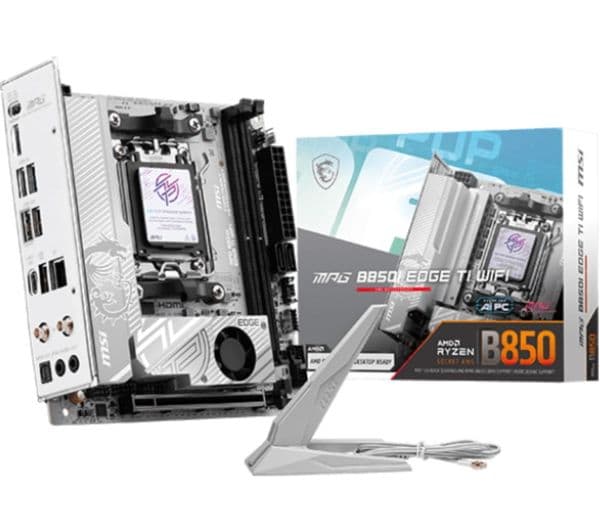

- General - Box contents
- - MSIMPG B850I EDGE TI WIFI AM5 Motherboard- Quick installation guide- Cable sticker- EZ Wi-Fi antenna- SATA Cable- M.2 screws x 2- ARGB extension cable- 1 to 3 EZ conn-cable- EZ Front panel cable
- General - Colour
- White
- General - Dimensions
- 57 x 225 x 275 mm (H x W x D)
- General - Manufacturer’s guarantee
- 3 years
- General - Weight
- 1190 g
- Internal connectivity - BIOS
- Flash BIOS
- Internal connectivity - Buttons
- Clear CMOS Button
- Internal connectivity - Case
- - Power LED - HDD LED- Reset- Front Panel Audio
- Internal connectivity - Cooling
- - CPU fan x 1- Combo fan x 1- Pump fan x 1
- Internal connectivity - Expansion slots
- - PCIe 5.0 (x16) x 1- PCIe 4.0 (x8) x 1- PCIe 4.0 (x4) x 1
- Internal connectivity - Other internal connections
- - Addressable V2 RGB connector x 2- TPM header x 1- EZ Debug LED x 4- EZ Memory Detection LED x 1
- Internal connectivity - Power
- - Power Connector (ATX_PWR) x 1- Power Connector (CPU_PWR) x 1
- Internal connectivity - Storage slots
- - SATA x 2 (6 GB/s)- M.2 Gen4 x 1 (64 GB/s)- M.2 Gen5 X 1 (128 GB/s)
- Overview - Chipset
- AMD B850
- Overview - Cooling features
- - Frozr heatsink design- Extended heatsink- M.2 Shield Frozr- Thermal pad & additional choke pad
- Overview - Form factor
- Mini IXT
- Overview - Memory slots
- 2 x UDIMM (Max RAM: 96 GB)
- Overview - Memory standard
- DDR5
- Overview - Operating systems supported
- Windows 11
- Overview - Processor models supported
- AMD Ryzen 9000, 8000 & 7000 Series desktop processors
- Overview - Socket
- AMD AM5
