- Basic Specifications - EAN
- 4711377260800
- Basic Specifications - Manufacturer's Part Number
- 125728
- External connectivity - Audio
- - 7.1-Channel USB High-Performance Audio- Supports S/PDIF output
- External connectivity - LAN
- - Intel® Wi-Fi 7- Bluetooth 5.4
- External connectivity - USB
- - USB Type-C x 1- USB Type-A x 8- USB 2.0 x 1
- External connectivity - Video output
- - HDMI 2.1 x 1- DisplayPort 1.4 x 1
- General - Box contents

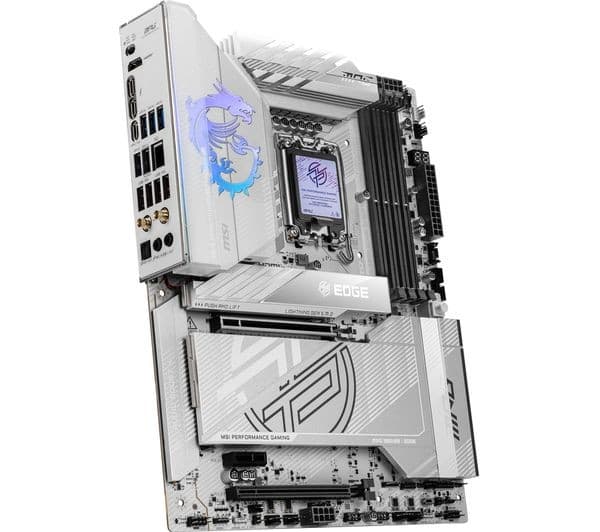

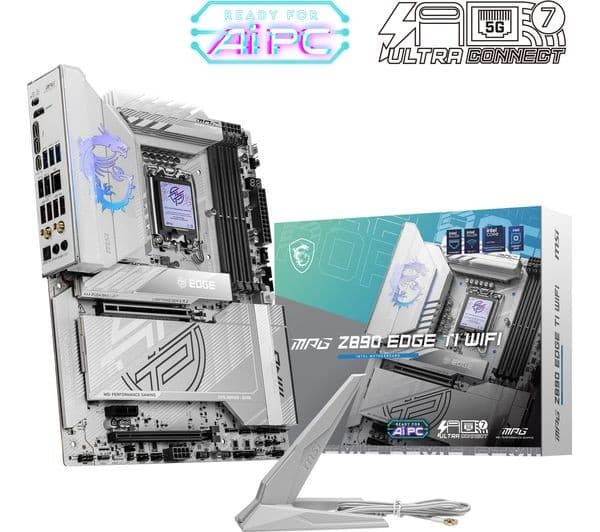

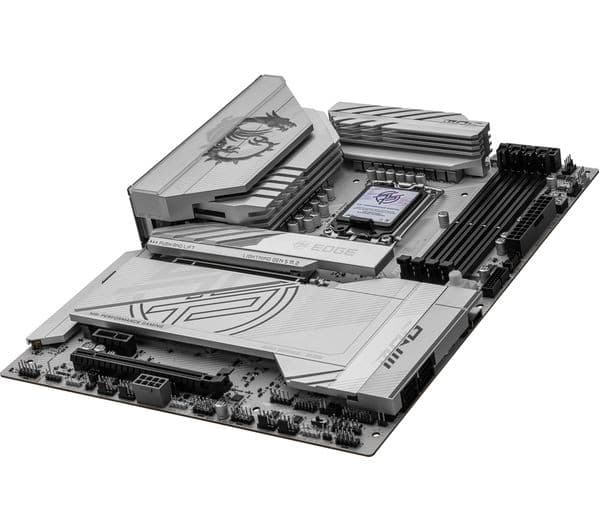

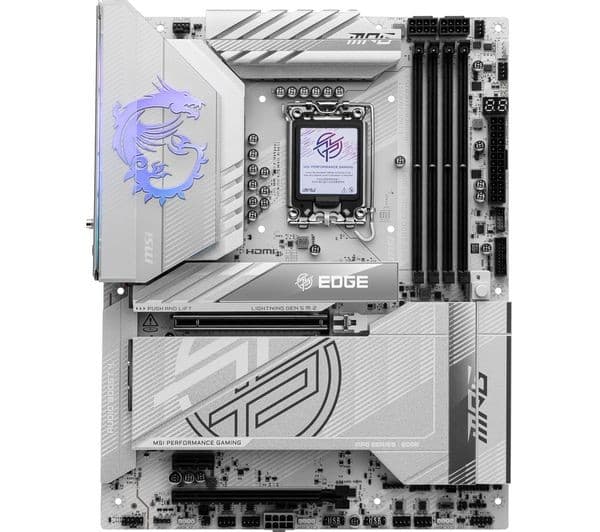

- - MSI MPG Z890 EDGE TI WIFI LGA1851 Motherboard- Regulatory notice- Guide- Cable sticker- Shout out flyer,- EZ wifi antenna- EZ m.2 clip x 3 - EZ M.2 remover- M.2 screw set- USB drive - SATA cables 1to3 EZ comm-cable x 2 - EZ front panel cable
- General - Colour
- White
- General - Dimensions
- 70 X 270 X 345 mm (H x W x D)
- General - Manufacturer’s guarantee
- 3 years
- General - Weight
- 2.34 kg
- Internal connectivity - BIOS
- Flash BIOS
- Internal connectivity - Buttons
- - Power button- Flash BIOS Button- Clear CMOS button
- Internal connectivity - Cooling
- - CPU fan 4-pin x 1- Combo fan x 1- System fan 4-pin x 6
- Internal connectivity - Expansion slots
- - PCIe 5.0 (x16 slot) x 1- PCIe 4.0 (x1 slot) x 1- PCIe 4.0 (x4 slot) x 1
- Internal connectivity - Other internal connections
- - Thunderbolt5 card connector x 1- CPU Fan x 1- Front Panel (JFP) x 2- Chassis Intrusion (JCI) x 1- Tuning Controller connector x 1- Addressable V2 RGB LED connector (JARGB_V2) x 3- RGB LED connector (JRGB) x 1- TPM pin header (Support TPM 2.0) x 1
- Internal connectivity - Power
- - 24-pin ATX x 1- 8-pin 12V ATX x 1
- Internal connectivity - Sensors
- Thermal sensor
- Internal connectivity - Storage slots
- - SATA x 4 (6 GB/s) - M.2 x 5 (64 GB/s)
- Internal connectivity - USB
- - USB Type-C x 1- USB 3.2 x 2- USB 2.0 x 4
- Overview - Chipset
- Intel® Z890
- Overview - Cooling features
- - Frozr AI cooling- Frozr Sync- Frozr Guard- Frozr Control
- Overview - Form factor
- ATX
- Overview - Memory slots
- 4 x UDIMM (Max RAM: 256 GB)
- Overview - Memory standard
- DDR5
- Overview - Operating systems supported
- Windows 11 or later
- Overview - Processor models supported
- Intel® Core™ Ultra Processors (Series 2)
- Overview - Socket
- Intel® LGA1851
