- Basic Specifications - Data Link Protocol
- RS-232
- Basic Specifications - Data Transfer Rate
- 921.6 Kbps
- Basic Specifications - Device Type
- Serial adapter
- Basic Specifications - Dimensions (WxDxH)
- 4.62 cm x 9.8 cm x 1.8 cm
- Basic Specifications - EAN
- 0065030881159
- Basic Specifications - Form Factor
- Plug-in card - low profile
- Basic Specifications - Interface (Bus) Type
- PCI Express x1
- Basic Specifications - Manufacturer Warranty
- Limited lifetime warranty
- Basic Specifications - Manufacturer's Part Number
- PEX1S953LP
- Basic Specifications - Model
- StarTech.com 1-port PCI Express RS232 Serial Adapter Card, PCIe RS232 Serial Host Controller Card, PCIe to Serial DB9 COM Port, 16950 UART, Low Profile Expansion Card, Windows/macOS/Linux - Full/Low-Profile (PEX1S953LP)
- Basic Specifications - PCI Specification Revision
- PCIe 1.1
- Basic Specifications - Ports
- RS-232 x 1
- Basic Specifications - Processor
- ASIX AX99100
- Basic Specifications - Product Description
- StarTech.com 1-port PCI Express RS232 Serial Adapter Card, PCIe RS232 Serial Host Controller Card, PCIe to Serial DB9 COM Port, 16950 UART, Low Profile Expansion Card, Windows/macOS/Linux - Full/Low-Profile (PEX1S953LP) - serial adapter - PCI Express x1 - RS-232 x 1
- Basic Specifications - System Requirements
- Microsoft Windows Server 2003, Microsoft Windows Server 2008 R2, Microsoft Windows Server 2012, Microsoft Windows Server 2012 R2, Microsoft Windows Server 2016, Linux 2.4 - 2.6.x
- Basic Specifications - Weight
- 46.2 g
- Dimensions & Weight - Depth
- 9.8 cm
- Dimensions & Weight - Height
- 1.8 cm
- Dimensions & Weight - Weight
- 46.2 g
- Dimensions & Weight - Width
- 4.62 cm
- Dimensions & Weight (Shipping) - Shipping Weight
- 124.6 g
- Environmental Parameters - Humidity Range Operating
- 20 - 80%
- Environmental Parameters - Max Operating Temperature
- 70 °C
- Environmental Parameters - Min Operating Temperature
- 0 °C
- Expansion / Connectivity - Interfaces
- 1 x RS-232 - 9 pin D-Sub (DB-9)
- General - Device Type
- Serial adapter
- General - Form Factor
- Plug-in card - low profile
- General - Interface (Bus) Type
- PCI Express x1
- General - PCI Specification Revision
- PCIe 1.1
- Manufacturer Warranty - Service & Support
- Limited warranty - lifetime
- Miscellaneous - Compliant Standards
- WHQL, FCC, RoHS, WEEE

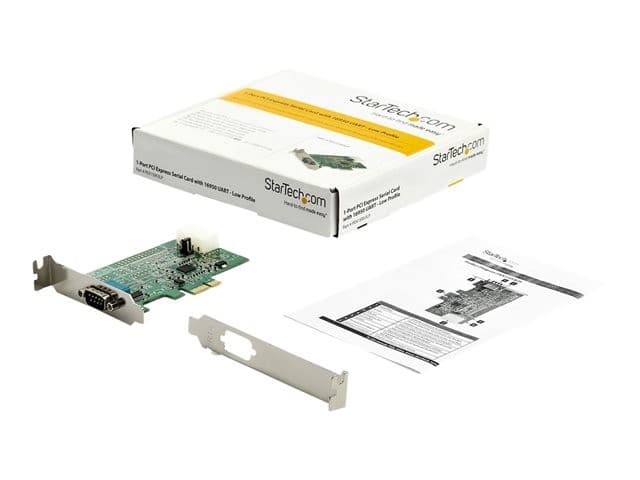

- Miscellaneous - Included Accessories
- Full-height bracket
- Networking - Connectivity Technology
- Wired
- Networking - Data Link Protocol
- RS-232
- Networking - Data Transfer Rate
- 921.6 Kbps
- Networking - Features
- Full duplex mode, 256-byte FIFO
- Networking - Ports
- RS-232 x 1
- Processor / Memory - Processor
- ASIX AX99100
- Software / System Requirements - OS Required
- Microsoft Windows Server 2003, Microsoft Windows Server 2008 R2, Microsoft Windows Server 2012, Microsoft Windows Server 2012 R2, Microsoft Windows Server 2016, Linux 2.4 - 2.6.x
