- Basic Specifications - Device Type
- NAS server
- Basic Specifications - Dimensions (WxDxH)
- 23 cm x 22.3 cm x 16.6 cm
- Basic Specifications - EAN
- 4711174726011
- Basic Specifications - Hard Drive
- Lockable
- Basic Specifications - Host Connectivity
- Gigabit Ethernet / 2.5 Gigabit Ethernet
- Basic Specifications - Installed Devices / Modules Qty
- 0 (installed) / 5 (max)
- Basic Specifications - IP Cameras Supported
- 40
- Basic Specifications - Manufacturer Warranty
- 3-year warranty
- Basic Specifications - Manufacturer's Part Number
- DS1525+
- Basic Specifications - Max Supported Capacity
- 100 TB
- Basic Specifications - Model

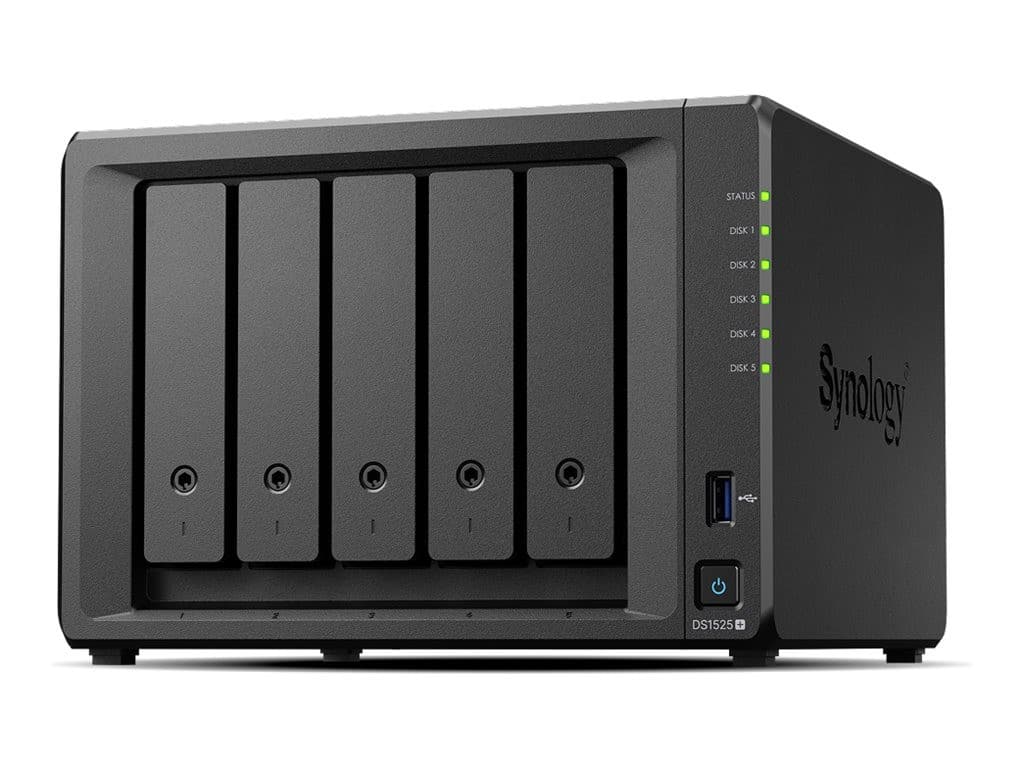

- Synology Disk Station DS1525+
- Basic Specifications - Networking
- 2.5GbE, 1GbE, 10Mb LAN, 100Mb LAN
- Basic Specifications - Performance
- Maximum volume size: 108 TB ¦ Maximum number of volume: 32 ¦ Maximum accounts: 1024 ¦ Maximum number of groups: 256 ¦ Maximum number of shared folder: 256 ¦ Maximum number of shared folders syncing tasks: 8 ¦ Syslog: 800 events per second
- Basic Specifications - Power
- AC 100-240 V (50/60 Hz)
- Basic Specifications - Processor
- 1 x AMD Ryzen V1500B 2.2 GHz (Quad-Core)
- Basic Specifications - Product Description
- Synology Disk Station DS1525+ - NAS server
- Basic Specifications - RAM
- 8 GB
- Basic Specifications - Storage Controller
- RAID SATA 6Gb/s RAID JBOD, 0, 1, 5, 6, 10
- Basic Specifications - Weight
- 2.67 kg ()
- Environmental Parameters - Humidity Range Operating
- 5 - 95%
- Environmental Parameters - Max Operating Temperature
- 40 °C
- Environmental Parameters - Min Operating Temperature
- 0 °C
- Environmental Parameters - Sound Emission
- 22.6 dBA
- Expansion / Connectivity - Expansion Bays
- 5 (total) / 5 (free) x hot-swap - 2.5" / 3.5"
- Expansion / Connectivity - Expansion Slots
- 2 (total) / 2 (free) x M.2 ¦ 2 (total) / 1 (free) x expansion slot ¦ 1 (total) / 2 (free) x SO-DIMM 260-pin ¦ X PCI Express 3.0 x2
- Expansion / Connectivity - Interfaces
- 2 x USB 3.2 Gen 1 - Type A ¦ 2 x 2.5 Gigabit Ethernet - RJ-45 ¦ 1 x Ethernet 1000Base-T - RJ-45 ¦ 2 x USB-C
- General - Built-in Devices
- 2 x 92 mm fan
- General - Depth
- 22.3 cm
- General - Device Type
- NAS server
- General - Height
- 16.6 cm
- General - Host Connectivity
- Gigabit Ethernet / 2.5 Gigabit Ethernet
- General - Installed Devices / Modules Qty
- 0 (installed) / 5 (max)
- General - Max Supported Capacity
- 100 TB
- General - Total Storage Capacity
- 0 GB
- General - Weight
- 2.67 kg ()
- General - Width
- 23 cm
- Hard Drive - Features
- Lockable
- Hard Drive - Type
- HDD - hot-swap - 2.5" / 3.5" shared
- Manufacturer Warranty - Service & Support
- Limited warranty - 3 years
- Miscellaneous - Cables Included
- 2 x network cable
- Miscellaneous - Compliant Standards
- FCC, BSMI, VCCI, RCM, UKCA, EAC, CCC, KC, BIS, RoHS
- Miscellaneous - Features
- Hardware encryption, LED indicator, scheduled power on/off, security lock slot (cable lock sold separately), power recovery
- Miscellaneous - Included Accessories
- Accessory pack, power cable
- Miscellaneous - Security Slot Type
- Kensington security slot
- Networking - Data Link Protocol
- 2.5GbE, 1GbE, 10Mb LAN, 100Mb LAN
- Networking - Features
- WOL, WOW, SSD read-write cache, Storage Pool, Rsync compatible, ACL support, NFS Kerberos authentication, hybrid backup sync, VPN Server, reset button
- Networking - Network / Transport Protocol
- HTTP, HTTPs, FTP
- Networking - Network Services Compatibility
- Apple File Protocol (AFP), FTP, Web-based Distributed Authoring and Versioning (WebDAV), Microsoft CIFS, Network File System v3 (NFS v3), Network File System v4 (NFS v4), Network File System v4.1 (NFS v4.1), Server Message Block 2.0 (SMB 1.0), Server Message Block 2.0 (SMB 2.0), Server Message Block 3.0 (SMB 3.0), Calendaring Extensions to WebDAV (CalDAV)
- Networking - Performance
- Maximum volume size: 108 TB ¦ Maximum number of volume: 32 ¦ Maximum accounts: 1024 ¦ Maximum number of groups: 256 ¦ Maximum number of shared folder: 256 ¦ Maximum number of shared folders syncing tasks: 8 ¦ Syslog: 800 events per second
- Networking - Remote Management Protocol
- HTTP, HTTPS, SNMP, LDAP
- Power - Power Consumption Operational
- 44.56 Watt
- Power - Power Consumption Stand by
- 13.63 Watt
- Power - Power Device
- External power adapter
- Power - Power Provided
- 120 Watt
- Power - Voltage Required
- AC 100-240 V (50/60 Hz)
- Processor / Memory - Features
- ECC
- Processor / Memory - Max Supported Qty
- 1
- Processor / Memory - Number of Cores
- Quad-Core
- Processor / Memory - Processors Installed
- 1 x AMD Ryzen V1500B 2.2 GHz
- Processor / Memory - RAM
- 8 GB (installed) / 32 GB (supported) - DDR4
- Security DVR - IP Cameras Supported
- 40
- Storage Controller - Interface Type
- SATA 6Gb/s
- Storage Controller - RAID Level
- JBOD, RAID 0, RAID 1, RAID 5, RAID 6, RAID 10
- Storage Controller - Type
- RAID
