- Basic Specifications - Capacity
- 800 GB
- Basic Specifications - Dimensions (WxDxH)
- 22 mm x 80 mm x 3.5 mm
- Basic Specifications - EAN
- 4711174726196
- Basic Specifications - Features
- Power Loss Protection (PLP), NVM Express (NVMe), End-to-end data protection
- Basic Specifications - Form Factor
- M.2 2280
- Basic Specifications - Interface
- PCIe 3.0 x4 (NVMe)
- Basic Specifications - Manufacturer Warranty
- 5-year warranty
- Basic Specifications - Manufacturer's Part Number
- SNV5420-800G
- Basic Specifications - Product Description

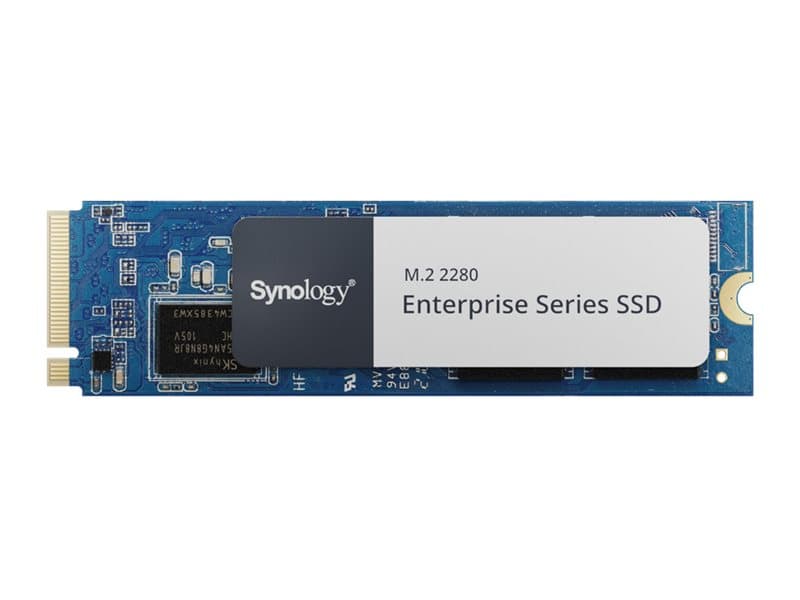

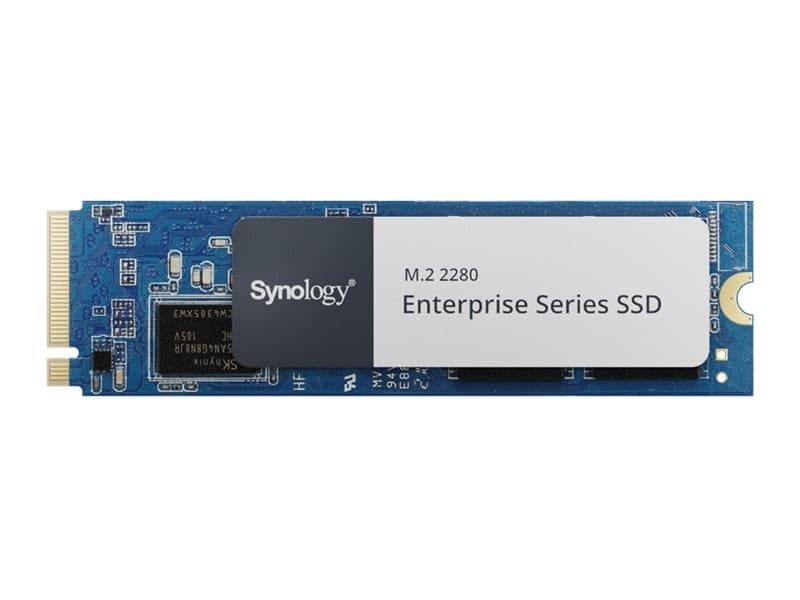

- Synology - Enterprise Series - SSD - 800 GB - PCIe 3.0 x4 (NVMe)
- Basic Specifications - Type
- Solid state drive - internal
- Environmental Parameters - Max Operating Temperature
- 85 °C
- Environmental Parameters - Max Storage Temperature
- 85 °C
- Environmental Parameters - Min Operating Temperature
- 0 °C
- Environmental Parameters - Min Storage Temperature
- -40 °C
- Expansion & Connectivity - Compatible Bay
- M.2 2280
- General - Capacity
- 800 GB
- General - Depth
- 80 mm
- General - Device Type
- Solid state drive - internal
- General - Features
- Power Loss Protection (PLP), NVM Express (NVMe), End-to-end data protection
- General - Form Factor
- M.2 2280
- General - Height
- 3.5 mm
- General - Interface
- PCIe 3.0 x4 (NVMe)
- General - Width
- 22 mm
- Manufacturer Warranty - Service & Support
- Limited warranty - 5 years
- Miscellaneous - Compliant Standards
- FCC, EAC, BSMI, VCCI, KC, RoHS, UKCA, UL
- Performance - Internal Data Rate
- 3000 MBps (read) / 1000 MBps (write)
- Performance - Maximum 4KB Random Read
- 400000 IOPS
- Performance - Maximum 4KB Random Write
- 70000 IOPS
- Performance - SSD Endurance
- 1400 TB
- Power - Power Consumption
- 5 Watt (read) ¦ 5.5 Watt (write) ¦ 2.5 Watt (idle)
- Power - Voltage Required
- 3.14 - 3.46 V
- Reliability - MTBF
- 3,000,000 hours
- Reliability - Non-Recoverable Errors
- 1 per 10^17
