- Basic Specifications - Capacity
- New sessions per second: 5500 ¦ Concurrent connections: 150000
- Basic Specifications - Compliant Standards
- IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3x, UPnP
- Basic Specifications - Data Link Protocol
- Ethernet, Fast Ethernet, Gigabit Ethernet
- Basic Specifications - Device Type
- Router
- Basic Specifications - Dimensions (WxDxH)
- 22.6 cm x 13.1 cm x 3.5 cm
- Basic Specifications - EAN
- 4895252500745
- Basic Specifications - Enclosure Type
- Desktop, wall-mountable
- Basic Specifications - Features
- NAT support, Syslog support, URL filtering, DPD, IPSec NAT-T, virtual server support, DHCP server, reset button, bandwidth control, port triggering, IP-MAC binding, GARP, Captive Portal, ARP inspection, 4KV Surge protection, network diagnostics, Web Filtering, policy based routing, PFS, ZTP, L2TP support, DynDNS, schedule reboot, OpenVPN server, Block TCP Flood, Black UDP Flood
- Basic Specifications - Manufacturer's Part Number
- ER707-M2
- Basic Specifications - Model

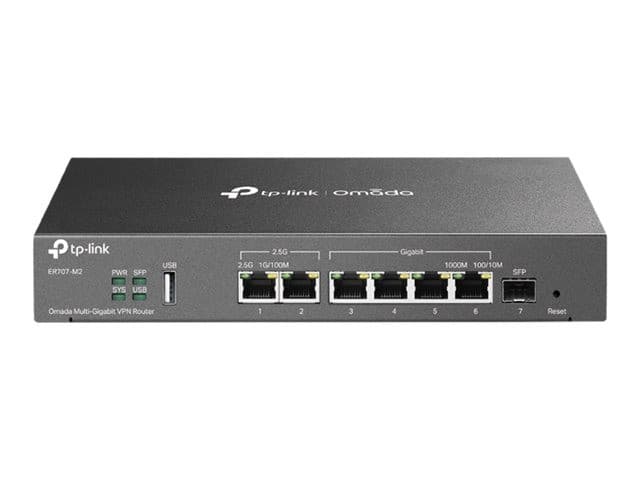

- TP-Link Omada ER707-M2 V1
- Basic Specifications - Network / Transport Protocol
- TCP/IP, PPTP, L2TP, NTP, IPSec, PPPoE, DHCP, DNS, HTTP, HTTPs
- Basic Specifications - Performance
- NAT upload throughput (Static IP): 2364.45 Mbps / 2343.28 Mbps ¦ NAT upload throughput (DHCP): 2364.24 Mbps / 2326.21 Mbps ¦ NAT (PPPoE) throughput: 2350.93 Mbps / 2125.83 Mbps ¦ NAT upload throughput (L2TP): 1249.04 Mbps / 831.12 Mbps ¦ NAT upload throughput (PPTP): 1169.23 Mbps / 1175.52 Mbps ¦ VPN throughput (IPSec): 537.12 Mbps ¦ VPN throughput (IPSec): 754.65 Mbps ¦ VPN unencrypted throughput (L2TP): 1442.65 Mbps ¦ VPN encrypted throughput (L2TP): 346.43 Mbps ¦ VPN throughput (SSL): 142.99 Mbps ¦ Upload/download forwarding rate (66-byte packet size): 1832.69 Mbps / 1741.84 Mbps ¦ Upload/download forwarding rate (1518-byte packet size): 2461.18 Mbps / 2457.32 Mbps
- Basic Specifications - Power
- (50/60 Hz)
- Basic Specifications - Product Description
- TP-Link Omada ER707-M2 V1 - router - desktop, wall-mountable
- Basic Specifications - Remote Management Protocol
- SNMP 1, SNMP 3, SNMP 2c, ICMP
- Basic Specifications - Routing Protocol
- IGMPv2, static IP routing, IGMPv3
- Basic Specifications - System Requirements
- UNIX, Apple MacOS, Novell NetWare, Linux, Microsoft Windows 98SE/2000/NT/XP/Vista/7/8/8.1/10
- Basic Specifications - VoIP Protocols
- H.323, SIP
- Dimensions & Weight - Depth
- 13.1 cm
- Dimensions & Weight - Height
- 3.5 cm
- Dimensions & Weight - Width
- 22.6 cm
- Environmental Parameters - Humidity Range Operating
- 10 - 90% (non-condensing)
- Environmental Parameters - Max Operating Temperature
- 40 °C
- Environmental Parameters - Min Operating Temperature
- 0 °C
- Expansion / Connectivity - Interfaces
- WAN: 1 x 2.5G Gigabit Ethernet - RJ-45 ¦ WAN / LAN: 1 x 2.5G Gigabit Ethernet - RJ-45 ¦ WAN / LAN: 1 x SFP (mini-GBIC) ¦ WAN / LAN: 4 x RJ-45 ¦ USB 2.0: 1 x
- General - Authentication Method
- RADIUS
- General - Capacity
- New sessions per second: 5500 ¦ Concurrent connections: 150000
- General - Compliant Standards
- IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3x, UPnP, FCC, RoHS
- General - Connectivity Technology
- Wired
- General - Data Link Protocol
- Ethernet, Fast Ethernet, Gigabit Ethernet
- General - Device Type
- Router
- General - Enclosure Type
- Desktop, wall-mountable
- General - Encryption Algorithm
- MD5, MPPE, SHA-1, 128-bit AES, 192-bit AES, 256-bit AES, IKEv2, IKEv1, 3DES-168
- General - Features
- NAT support, Syslog support, URL filtering, DPD, IPSec NAT-T, virtual server support, DHCP server, reset button, bandwidth control, port triggering, IP-MAC binding, GARP, Captive Portal, ARP inspection, 4KV Surge protection, network diagnostics, Web Filtering, policy based routing, PFS, ZTP, L2TP support, DynDNS, schedule reboot, OpenVPN server, Block TCP Flood, Black UDP Flood
- General - Flash Memory
- 128 MB
- General - Network / Transport Protocol
- TCP/IP, PPTP, L2TP, NTP, IPSec, PPPoE, DHCP, DNS, HTTP, HTTPs
- General - Performance
- NAT upload throughput (Static IP): 2364.45 Mbps / 2343.28 Mbps ¦ NAT upload throughput (DHCP): 2364.24 Mbps / 2326.21 Mbps ¦ NAT (PPPoE) throughput: 2350.93 Mbps / 2125.83 Mbps ¦ NAT upload throughput (L2TP): 1249.04 Mbps / 831.12 Mbps ¦ NAT upload throughput (PPTP): 1169.23 Mbps / 1175.52 Mbps ¦ VPN throughput (IPSec): 537.12 Mbps ¦ VPN throughput (IPSec): 754.65 Mbps ¦ VPN unencrypted throughput (L2TP): 1442.65 Mbps ¦ VPN encrypted throughput (L2TP): 346.43 Mbps ¦ VPN throughput (SSL): 142.99 Mbps ¦ Upload/download forwarding rate (66-byte packet size): 1832.69 Mbps / 1741.84 Mbps ¦ Upload/download forwarding rate (1518-byte packet size): 2461.18 Mbps / 2457.32 Mbps
- General - RAM
- 1 GB DDR4 SDRAM
- General - Remote Management Protocol
- SNMP 1, SNMP 3, SNMP 2c, ICMP
- General - Routing Protocol
- IGMPv2, static IP routing, IGMPv3
- General - Status Indicators
- Power, system, link/activity, speed
- IP Telephony - VoIP Protocols
- H.323, SIP
- Power - Installed Qty
- 1
- Power - Power Device
- Internal power supply
- Power - Voltage Required
- (50/60 Hz)
- Software / System Requirements - OS Required
- UNIX, Apple MacOS, Novell NetWare, Linux, Microsoft Windows 98SE/2000/NT/XP/Vista/7/8/8.1/10
