- Basic Specifications - Batteries Qty
- 1
- Basic Specifications - Battery
- Lead Acid - 9 Ah
- Basic Specifications - Device Type
- UPS - external
- Basic Specifications - Dimensions (WxDxH)
- 12 cm x 35.5 cm x 16 cm
- Basic Specifications - EAN
- 0731304435648
- Basic Specifications - Input Connectors
- 1 x power IEC 60320 C14
- Basic Specifications - Input Voltage
- AC 230 V
- Basic Specifications - Manufacturer Warranty
- 2-year warranty
- Basic Specifications - Manufacturer's Part Number
- BX500MI

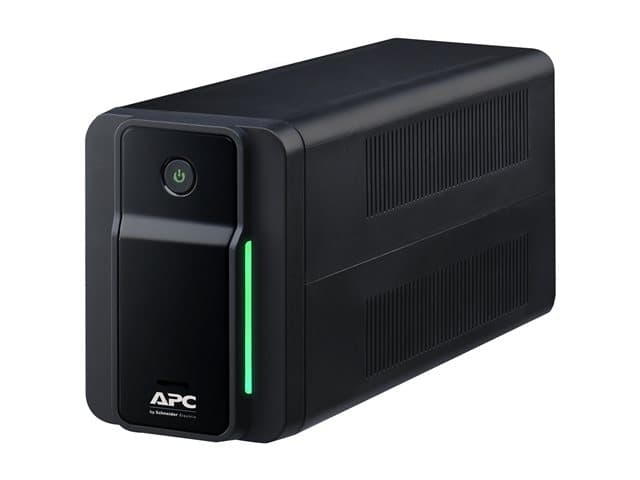

- Basic Specifications - Model
- APC Back-UPS BX Series BX500MI

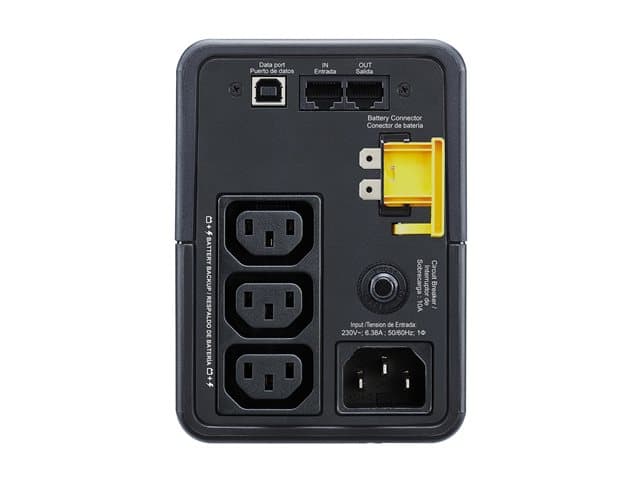

- Basic Specifications - Output connectors
- 4 x power IEC 60320 C13
- Basic Specifications - Output Voltage
- AC 230 V ± 10%
- Basic Specifications - Power Capacity
- 300 Watt / 500 VA
- Basic Specifications - Product Description
- APC Back-UPS BX Series BX500MI - UPS - 300 Watt - 500 VA
- Basic Specifications - Product Type
- UPS
- Basic Specifications - Run Time (Up To)
- 8.5 min at half load
- Basic Specifications - Weight
- 4.5 kg
- Battery - Capacity
- 9 Ah
- Battery - Features
- Maintenance free, sealed
- Battery - Quantity
- 1
- Battery - Recharge Time
- 6 hours
- Battery - Run Time (Up To)
- 8.5 min at 50% load ¦ 1 min at full load
- Battery - Technology
- Lead Acid
- Battery - Transfer Time
- 6 ms
- Battery - Voltage Provided
- 12 V
- Dimensions & Weight - Depth
- 35.5 cm
- Dimensions & Weight - Height
- 16 cm
- Dimensions & Weight - Weight
- 4.5 kg
- Dimensions & Weight - Width
- 12 cm
- Dimensions & Weight (Shipping) - Shipping Depth
- 43 cm
- Dimensions & Weight (Shipping) - Shipping Height
- 25 cm
- Dimensions & Weight (Shipping) - Shipping Width
- 19.7 cm
- Environmental Parameters - Humidity Range Operating
- 0 - 95%
- Environmental Parameters - Max Operating Temperature
- 40 °C
- Environmental Parameters - Min Operating Temperature
- 0 °C
- Expansion / Connectivity - Interfaces
- 1 x USB
- General - Device Type
- UPS - external
- Manufacturer Warranty - Service & Support
- Limited warranty - replace or repair - 2 years
- Miscellaneous - Compliant Standards
- EN 62040-1, CB, IEC 62040-1, IEC 62040-2, IP20
- Miscellaneous - Features
- Automatic Voltage Regulation (AVR), audible alarm
- Power Device - Circuit Protection
- Fuse
- Power Device - Dataline Surge Protection
- Network - RJ-45 - 1 input line / 1 output line
- Power Device - Frequency Provided
- 50/60 Hz
- Power Device - Frequency Required
- 50/60 Hz
- Power Device - Input Connectors
- 1 x power IEC 60320 C14
- Power Device - Input Voltage
- AC 230 V
- Power Device - Input Voltage Range
- AC 140 - 300 V
- Power Device - Output Voltage
- AC 230 V ± 10% - 50/60 Hz
- Power Device - Output Waveform
- Stepped approximation to a sinewave
- Power Device - Power Capacity
- 300 Watt / 500 VA
- Power Device - Power Output Connectors Details
- 4 x power IEC 60320 C13
- Power Device - Surge Energy Rating
- 273 Joules
- Power Device - UPS Technology
- Line interactive
- Software / System Requirements - Software Included
- APC PowerChute Personal Edition
