- Basic Specifications - Colour
- Black
- Basic Specifications - Cord Length
- 1.8 m
- Basic Specifications - Device Type
- Power distribution unit - rack-mountable
- Basic Specifications - Dimensions (WxDxH)
- 5.6 cm x 7.5 cm x 182.6 cm
- Basic Specifications - EAN
- 0731304439752
- Basic Specifications - Input Connectors
- 1 x power IEC 60309 560P6
- Basic Specifications - Input Voltage
- AC 415 V
- Basic Specifications - Input Wiring
- 3-phase
- Basic Specifications - Manufacturer Warranty
- 3-year warranty
- Basic Specifications - Manufacturer's Part Number
- APDU10450SM
- Basic Specifications - Networking
- Ethernet 10/100/1000
- Basic Specifications - Output connectors
- 21 x power IEC 60320 C13/C15/C19/C21 ¦ 21 x power IEC 60320 C13/C15
- Basic Specifications - Output Voltage
- AC 240 V
- Basic Specifications - Power Capacity
- 34.6 kW / 34600 VA
- Basic Specifications - Product Description
- APC NetShelter Rack PDU Advanced - power distribution unit - switched metered outlet - 34.6 kW - 34600 VA
- Basic Specifications - Rack Size
- 0U
- Basic Specifications - Remote Management Protocol
- SNMP
- Basic Specifications - Weight
- 12.7 kg
- Dimensions & Weight - Depth
- 7.5 cm
- Dimensions & Weight - Height
- 182.6 cm
- Dimensions & Weight - Weight
- 12.7 kg
- Dimensions & Weight - Width
- 5.6 cm
- Dimensions & Weight (Shipping) - Shipping Depth
- 13.2 cm
- Dimensions & Weight (Shipping) - Shipping Height
- 198 cm
- Dimensions & Weight (Shipping) - Shipping Weight
- 15.7 kg
- Dimensions & Weight (Shipping) - Shipping Width
- 26.2 cm
- Environmental Parameters - Humidity Range Operating
- 5 - 95%
- Environmental Parameters - Max Operating Temperature
- 60 °C
- Environmental Parameters - Min Operating Temperature
- -5 °C
- Expansion / Connectivity - Interfaces
- Management (Gigabit Ethernet) - RJ-45 ¦ Cascading - RJ-45
- General - Colour
- Black
- General - Cord Length
- 1.8 m
- General - Device Type
- Power distribution unit - rack-mountable
- General - Height (Rack Units)
- 0U
- Manufacturer Warranty - Service & Support
- Limited warranty - replace or repair - 3 years
- Miscellaneous - Cables Included
- Power cable 1.8 m
- Miscellaneous - Compliant Standards
- FCC Part 15 Subpart B, UL 62368-1, EN 62368-1, UKCA, CSA C22.2 No. 62368-1
- Miscellaneous - Features

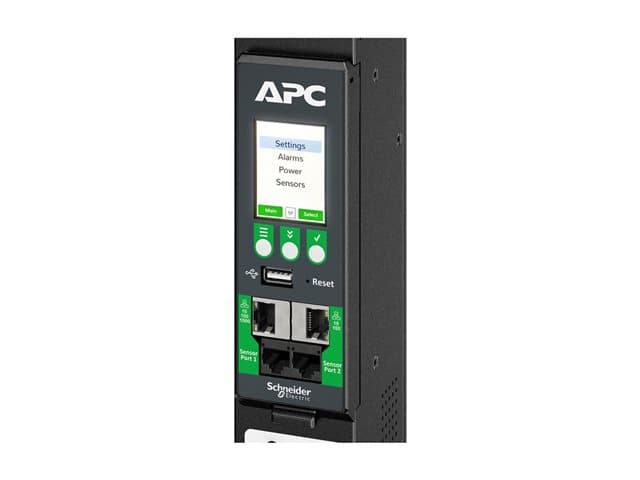

- Vertical orientation, overload protection, LCD display
- Networking - Remote Management Interface
- Ethernet 10/100/1000
- Networking - Remote Management Protocol
- SNMP
- Power Device - Frequency Required
- 50/60 Hz
- Power Device - Input Connectors
- 1 x power IEC 60309 560P6
- Power Device - Input Voltage
- AC 415 V
- Power Device - Input Wiring
- 3-phase
- Power Device - Max Electric Current
- 60 A
- Power Device - Output Voltage
- AC 240 V
- Power Device - Power Capacity
- 34.6 kW / 34600 VA
- Power Device - Power Output Connectors Details
- 21 x power IEC 60320 C13/C15/C19/C21 ¦ 21 x power IEC 60320 C13/C15
