- Audio - Audio Codec
- Realtek ALC887
- Audio - Compliant Standards
- High Definition Audio
- Audio - Type
- HD Audio (8-channel)
- Basic Specifications - Audio
- HD Audio (8-channel)
- Basic Specifications - Chipset Type
- AMD A520
- Basic Specifications - Compatible Processors
- Ryzen (supports 3rd Generation Ryzen / 3rd Generation Ryzen with Radeon Graphics)
- Basic Specifications - EAN
- 4718017826921
- Basic Specifications - Form Factor
- Micro ATX
- Basic Specifications - LAN
- Gigabit Ethernet
- Basic Specifications - Manufacturer's Part Number
- 90MB1500-M0EAY0
- Basic Specifications - Max RAM Size
- 64 GB
- Basic Specifications - Model
- ASUS PRIME A520M-K
- Basic Specifications - Processor Socket
- AMD AM4
- Basic Specifications - Product Description

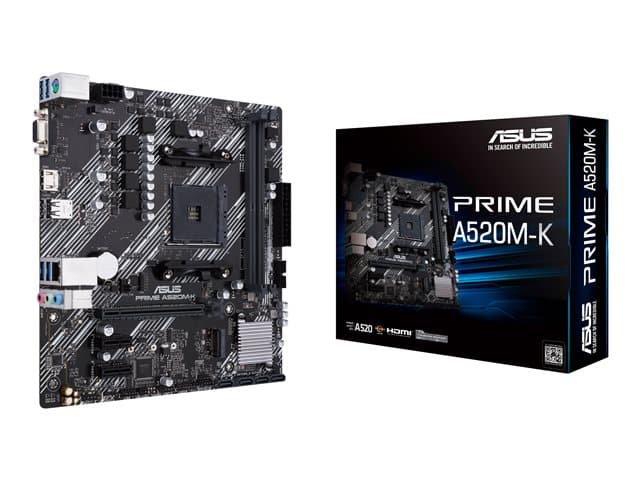

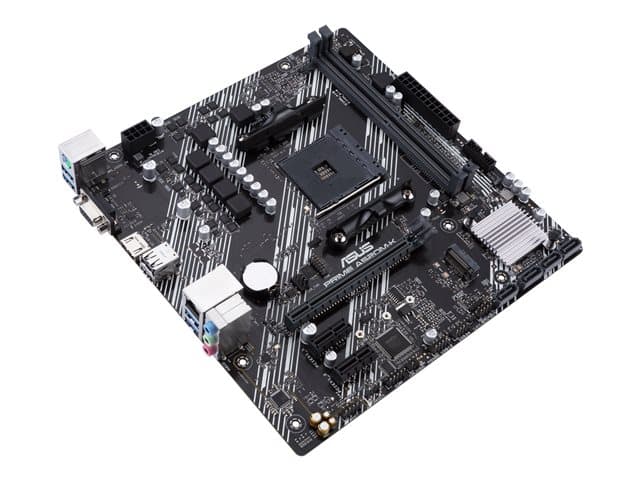

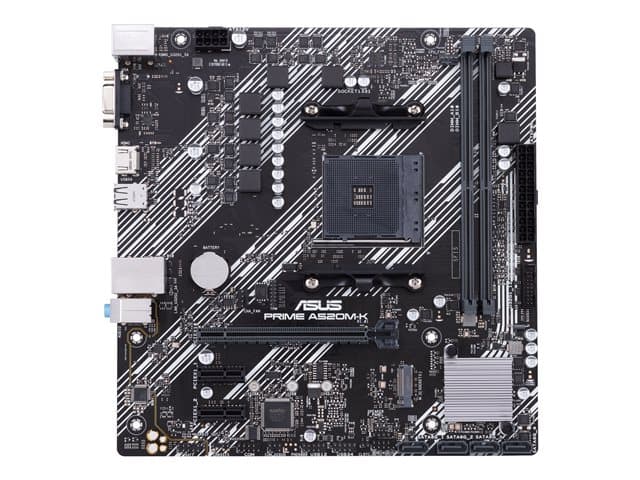

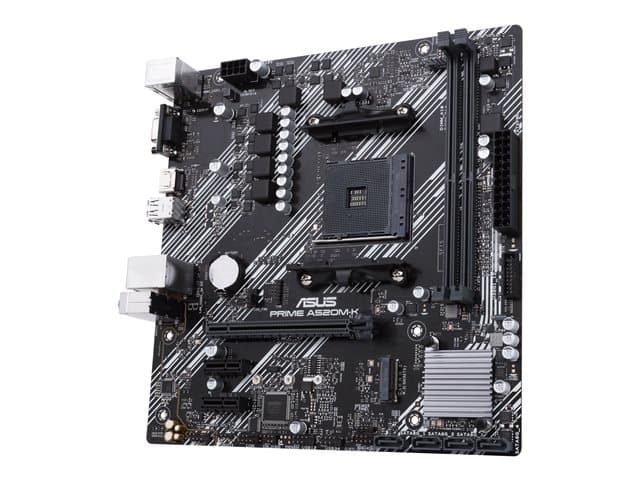

- ASUS PRIME A520M-K - motherboard - micro ATX - Socket AM4 - AMD A520
- Basic Specifications - Product Type
- Motherboard - micro ATX
- Basic Specifications - RAM Supported
- 2 DIMM slots - DDR4, ECC, non-ECC, unbuffered
- Basic Specifications - Storage Ports
- 4 x SATA-600 (RAID), 1 x M.2
- Basic Specifications - USB / FireWire Ports
- 4 x USB 3.2 Gen 1 + 2 x USB 2.0 + (2 x USB 3.2 Gen 1 + 4 x USB 2.0 via headers)
- Expansion / Connectivity - Expansion Slots
- 1 x CPU ¦ 2 x DIMM 288-pin ¦ 1 x PCIe 3.0 x16 ¦ 2 x PCIe 3.0 x1
- Expansion / Connectivity - Interfaces
- 1 x VGA ¦ 4 x USB 3.2 Gen 1 ¦ 1 x HDMI ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x audio line-in - mini-jack ¦ 1 x PS/2 keyboard / mouse ¦ 2 x USB 2.0 ¦ 1 x LAN (Gigabit Ethernet)
- Expansion / Connectivity - Internal Interfaces
- 4 x USB 2.0 - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 1 x SPDIF out - header ¦ 1 x serial - header ¦ 1 x speaker - header ¦ 1 x audio - header
- Expansion / Connectivity - Power Connectors
- 24-pin main power connector, 8-pin ATX12V connector
- Expansion / Connectivity - Storage Interfaces
- SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 ¦ SATA-600 / PCIe 3.0 -connectors: 1 x M.2
- Features - BIOS Features
- UEFI BIOS, ASUS EZ Flash 3
- Features - BIOS Type
- AMI
- Features - Hardware Features
- Preboot eXecution Environment (PXE), LANGuard, jack retasking, audio jack detect technology, Armoury Crate, ASUS TurboV EVO, ASUS EPU (Energy Processing Unit), ASUS DIGI+ VRM, ASUS Fan Xpert, ASUS EZ DIY, CrashFree BIOS 3, ASUS 5X Protection III, ASUS Overvoltage Protection, ASUS Stainless Steel Back I/O, ASUS Q-Design, Q-DIMM, Q-Slot, Lighting Control, ASUS SafeSlot Core
- Features - Sleep / Wake Up
- Wake on LAN (WOL), wake on PME
- General - Chipset Type
- AMD A520
- General - Compatible Processors
- Ryzen (supports 3rd Generation Ryzen / 3rd Generation Ryzen with Radeon Graphics)
- General - Max Processors Qty
- 1
- General - Processor Socket
- Socket AM4
- General - Product Type
- Motherboard - micro ATX
- LAN - Network Controller
- Realtek RTL8111H
- LAN - Network Interfaces
- Gigabit Ethernet
- Miscellaneous - Cables Included
- 2 x Serial ATA cable
- Miscellaneous - Depth
- 22.1 cm

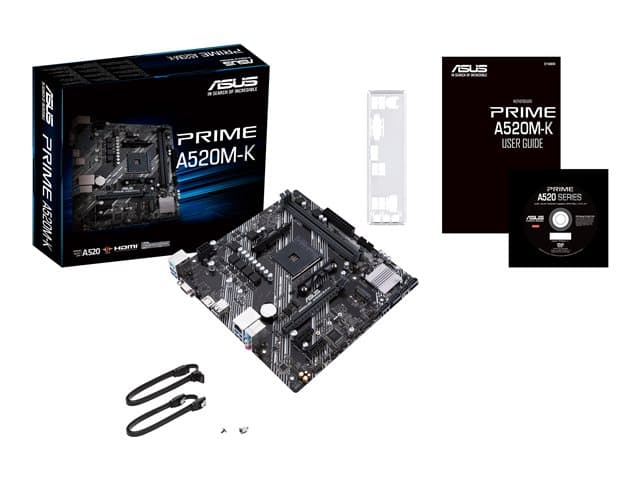

- Miscellaneous - Included Accessories
- I/O back cover, 1 x M.2 screw
- Miscellaneous - Software Included
- Drivers & Utilities, ASUS AI Suite III, ASUS AI Charger, ASUS CPU-Z, DAEMON Tools, WinRAR, Norton AntiVirus (60 days trial), ASUS EZ Flash 3, ASUS EZ Update
- Miscellaneous - Width
- 22.6 cm
- Supported RAM - Bus Clock
- 2400 MHz, 2133 MHz, 2800 MHz, 3000 MHz, 2666 MHz, 3200 MHz, 3333 MHz (O.C.), 3466 MHz (O.C.), 3600 MHz (O.C.), 3733 MHz (O.C.), 3866 MHz (O.C.), 4000 MHz (O.C.), 4400 MHz (O.C.), 4600 MHz (O.C.)
- Supported RAM - Features
- Dual channel memory architecture
- Supported RAM - Max Size
- 64 GB
- Supported RAM - Registered or Buffered
- Unbuffered
- Supported RAM - Supported RAM Integrity Check
- ECC, non-ECC
- Supported RAM - Technology
- DDR4
