- Audio - Audio Codec
- SupremeFX (S1220A)
- Audio - Compliant Standards
- High Definition Audio, DTS Sound Unbound
- Audio - Type
- HD Audio (8-channel)
- Basic Specifications - Audio
- HD Audio (8-channel)
- Basic Specifications - Chipset Type
- AMD B550
- Basic Specifications - Compatible Processors
- Ryzen (supports Ryzen 3000 Series/ 4000 G-Series/ 5000 Series/ 5000 G-Series)
- Basic Specifications - EAN
- 4711081453314
- Basic Specifications - Form Factor
- ATX
- Basic Specifications - LAN
- 2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax, Bluetooth 5.2
- Basic Specifications - Manufacturer's Part Number
- 90MB19V0-M0EAY0
- Basic Specifications - Max RAM Size
- 128 GB
- Basic Specifications - Model
- ASUS ROG STRIX B550-F GAMING WIFI II
- Basic Specifications - Processor Socket
- AMD AM4
- Basic Specifications - Product Description
- ASUS ROG STRIX B550-F GAMING WIFI II - motherboard - ATX - Socket AM4 - AMD B550
- Basic Specifications - Product Type
- Motherboard - ATX
- Basic Specifications - RAM Supported
- 4 DIMM slots - DDR4, ECC, non-ECC, unbuffered
- Basic Specifications - Storage Ports
- 6 x SATA-600 (RAID), 2 x M.2
- Basic Specifications - USB / FireWire Ports
- 1 x USB-C Gen 2 + 1 x USB 3.2 Gen 2 + 4 x USB 3.2 Gen 1 + 2 x USB 2.0 + (2 x USB 3.2 Gen 1 + 4 x USB 2.0 via headers)
- Expansion / Connectivity - Expansion Slots
- 1 x CPU ¦ 4 x DIMM 288-pin ¦ 1 x PCIe 4.0 x16 ¦ 1 x PCIe 3.0 x16 (x4 mode) ¦ 3 x PCIe 3.0 x1

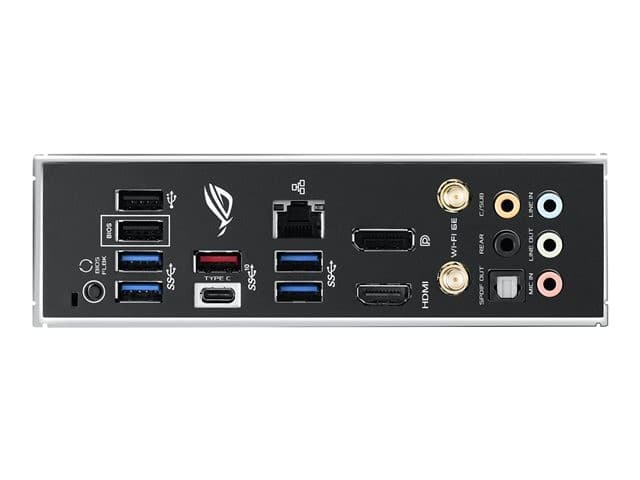

- Expansion / Connectivity - Interfaces
- 1 x LAN (2.5Gigabit Ethernet) ¦ 4 x USB 3.2 Gen 1 ¦ 1 x audio line-in - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x USB-C Gen2 ¦ 1 x USB 3.2 Gen 2 ¦ 1 x TOSLINK ¦ 1 x audio line-out (center/subwoofer) - mini-jack ¦ 1 x audio line-out (rear) - mini-jack ¦ 2 x USB 2.0 ¦ 1 x DisplayPort ¦ 1 x HDMI
- Expansion / Connectivity - Internal Interfaces
- 4 x USB 2.0 - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 1 x Thunderbolt - header ¦ 1 x audio - header
- Expansion / Connectivity - Power Connectors
- 4-pin ATX12V connector, 24-pin main power connector, 8-pin ATX12V connector
- Expansion / Connectivity - Storage Interfaces
- SATA-600 -connectors: 6 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 ¦ SATA-600 / PCIe 3.0 -connectors: 2 x M.2
- Features - BIOS Features
- BIOS FlashBack, UEFI BIOS
- Features - BIOS Type
- AMI
- Features - Hardware Features
- Preboot eXecution Environment (PXE), CrashFree BIOS 3, ASUS TurboV EVO, ASUS Fan Xpert 4, ASUS EPU (Energy Processing Unit), ASUS DIGI+ VRM, ASUS Aura Sync, Sonic Radar III, Sonic Studio III, GameFirst VI, ASUS SafeSlot, pre-mounted I/O shield, ASUS ProCool, M.2 heatsink, ASUS Q-Design, Q-DIMM, Q-LED, Q-Slot, jack retasking, audio jack detect technology, 12+2 Phase Power Design, SupremeFX Shielding technology, ASUS EZ DIY
- Features - Sleep / Wake Up
- Wake on LAN (WOL), wake on PME
- General - Chipset Type
- AMD B550
- General - Compatible Processors
- Ryzen (supports Ryzen 3000 Series/ 4000 G-Series/ 5000 Series/ 5000 G-Series)
- General - Max Processors Qty
- 1
- General - Processor Socket
- Socket AM4
- General - Product Type
- Motherboard - ATX
- LAN - Network Controller
- Intel I255-V
- LAN - Network Interfaces
- 2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax, Bluetooth 5.2
- Miscellaneous - Cables Included
- 4 x Serial ATA cable
- Miscellaneous - Depth
- 24.4 cm

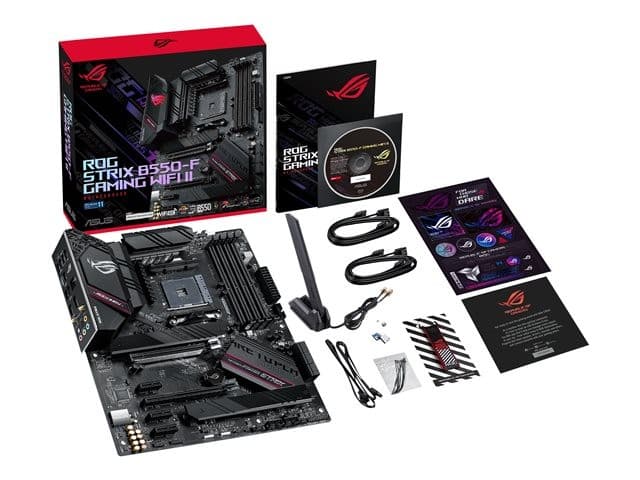

- Miscellaneous - Included Accessories
- External antenna, cable ties, 1 x M.2 screw, ROG fan stickers, ROG thank you card, rubber pad, RGB Addressable LED extension cable, ROG key chain
- Miscellaneous - Software Included
- ASUS AI Suite III, WinRAR, DAEMON Tools, Norton AntiVirus (Trial), ASUS EZ Update, ASUS EZ Flash 3, AIDA64 Extreme (60 days trial), Overwolf, Antivirus, Sonic Studio Virtual Mixer, ROG CPU-Z, ASUS ROG RAMCache III
- Miscellaneous - Width
- 30.5 cm
- Supported RAM - Bus Clock
- 2400 MHz, 2133 MHz, 2800 MHz, 3000 MHz, 2666 MHz, 3200 MHz, 3400 MHz (O.C.), 3466 MHz (O.C.), 3600 MHz (O.C.), 3733 MHz (O.C.), 3866 MHz (O.C.), 4000 MHz (O.C.), 4133 MHz (O.C.), 4266 MHz (O.C.), 4400 MHz (O.C.), 4600 MHz (O.C.), 4666 MHz (O.C.), 4800 MHz (O.C.), 4866 MHz (O.C.), 5100 MHz (O.C.)
- Supported RAM - Features
- Dual channel memory architecture
- Supported RAM - Max Size
- 128 GB
- Supported RAM - Registered or Buffered
- Unbuffered
- Supported RAM - Supported RAM Integrity Check
- ECC, non-ECC
- Supported RAM - Technology
- DDR4
