- Basic Specifications - Compliant Standards
- USB 2.0
- Basic Specifications - Device Type
- KVM / audio switch - 4 ports
- Basic Specifications - Dimensions (WxDxH)
- 26.5 cm x 7.3 cm x 4.5 cm
- Basic Specifications - EAN
- 4710423775718
- Basic Specifications - Features
- Firmware upgradable, HDCP compliant, Video DynaSync
- Basic Specifications - KVM Users Qty
- 1 local user
- Basic Specifications - Manufacturer Warranty
- 3-year warranty
- Basic Specifications - Manufacturer's Part Number
- CS1794
- Basic Specifications - Model

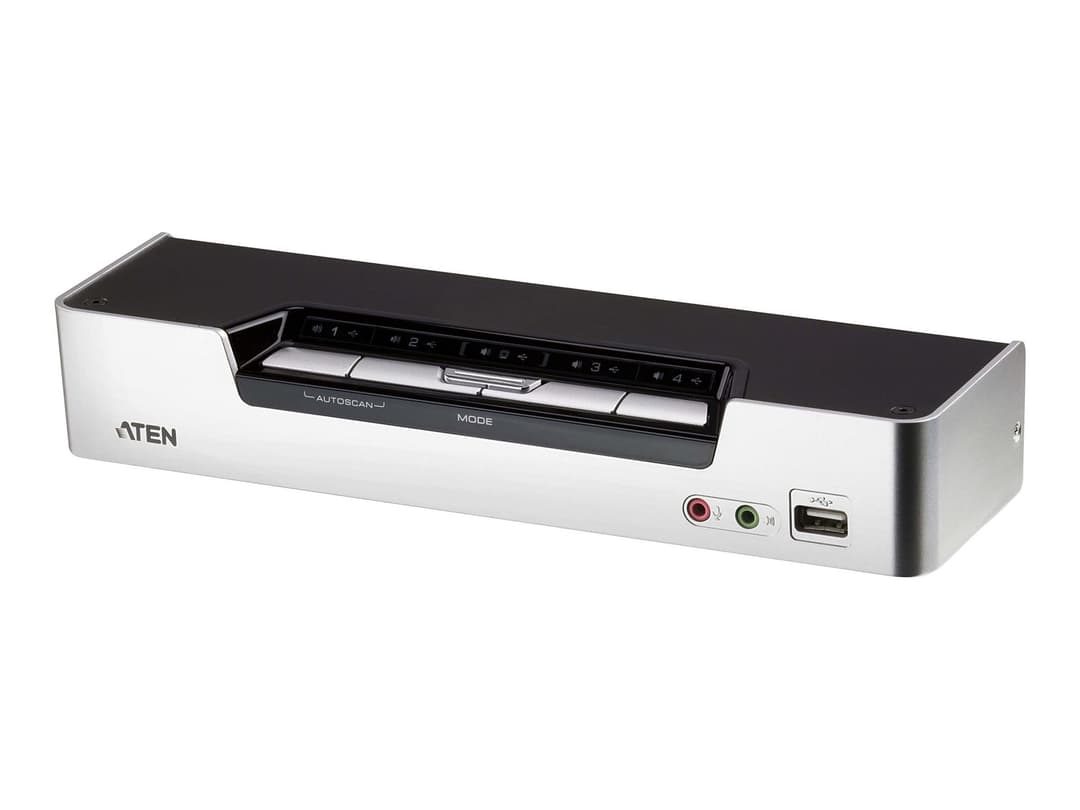

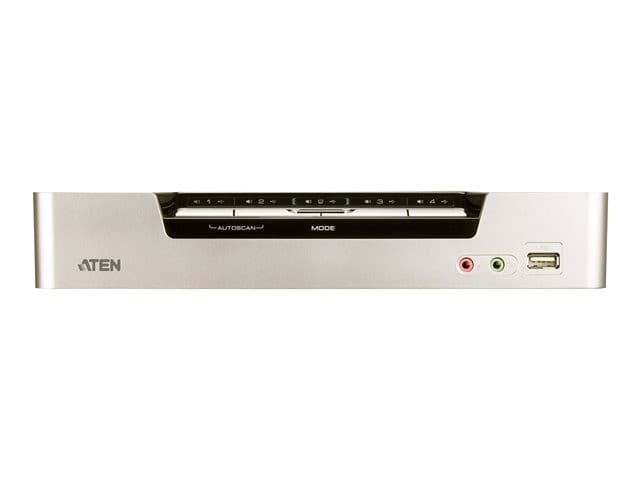

- ATEN CubiQ CS1794 USB 2.0 HDMI KVMP Switch
- Basic Specifications - Ports
- 4 x KVM / audio
- Basic Specifications - Product Description
- ATEN CubiQ CS1794 USB 2.0 HDMI KVMP Switch - KVM / audio switch - 4 ports
- Basic Specifications - Subtype
- KVM
- Basic Specifications - Weight
- 0.53 kg
- Dimensions & Weight - Depth
- 7.3 cm
- Dimensions & Weight - Height
- 4.5 cm
- Dimensions & Weight - Weight
- 0.53 kg
- Dimensions & Weight - Width
- 26.5 cm
- Environmental Parameters - Humidity Range Operating
- 0 - 80%
- Environmental Parameters - Max Operating Temperature
- 50 °C
- Environmental Parameters - Min Operating Temperature
- 0 °C
- Expansion / Connectivity - Interfaces

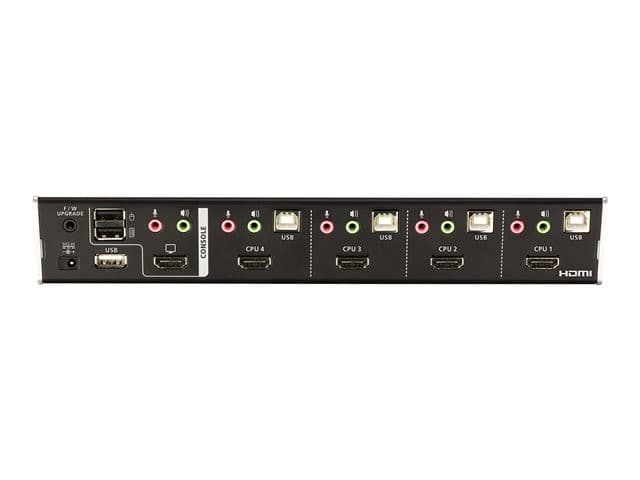

- 4 x HDMI ¦ 4 x USB 2.0 Type B ¦ 4 x audio mini-jack ¦ 4 x microphone mini-jack ¦ 1 x mini-phone 3.5 mm 4-pole management ¦ 1 x HDMI ¦ 1 x keyboard (USB) Type A ¦ 1 x mouse (USB) Type A ¦ 2 x audio mini-jack ¦ 2 x microphone mini-jack ¦ 2 x USB 2.0 Type A
- General - Built-in Devices
- USB Hub
- General - Compliant Standards
- USB 2.0
- General - Device Type
- KVM / audio switch - 4 ports
- General - Enclosure Type
- Desktop
- General - Features
- Firmware upgradable, HDCP compliant, Video DynaSync
- General - Keyboard / Mouse Interface
- USB
- General - KVM Local Users Qty
- 1 local user
- General - Max Resolution
- 1920 x 1200 / 1080p
- General - Ports
- 4 x KVM / audio
- General - Subtype
- KVM
- Manufacturer Warranty - Service & Support
- Limited warranty - 3 years
- Miscellaneous - Cables Included
- 1 x HDMI cable
- Miscellaneous - Compliant Standards
- RoHS
- Miscellaneous - Included Accessories
- USB / PS/2 adapter
- Power - Power Consumption Operational
- 4.8 Watt
- Power - Power Device
- External power adapter
