- Basic Specifications - Audio
- Yes: two-way audio via optional audio and I/O interface
- Basic Specifications - Camera
- Colour - Day&Night
- Basic Specifications - Colour
- White, NCS S 1002-B
- Basic Specifications - Connectivity Technology
- Wired
- Basic Specifications - Device Type
- Network surveillance camera - fixed - dome - vandal resistant / impact resistant / dust resistant / water resistant
- Basic Specifications - Dimensions (WxDxH)
- 10.1 cm x 10.1 cm x 5.6 cm
- Basic Specifications - EAN
- 7331021076648
- Basic Specifications - Environmental Parameters (operating)
- 0 °C - 45 °C; 10 - 85% RH (non-condensing) relative humidity
- Basic Specifications - Features
- IR Corrected lens, infrared-cut filter, Lightfinder technology, deep learning processing unit (DLPU), Zipstream technology, Variable Bitrate (VBR), Multi-Bitrate (MBR), up to 2 view areas, 180° image rotation, 270° image rotation, 90° image rotation, brightness control, colour control, compression, contrast control, Corridor mode, exposure control, image mirror, motion-adaptive exposure, Privacy Mask Function, sharpness control, white balance, Wide Dynamic Range (WDR), digital PTZ function, Axis device ID, Axis Edge Vault, brute force delay protection, centralised certificate management, digest authentication, HTTPs encryption, IP address filtering, password protection, secure boot, signed firmware, user access log, VAPIX support, ONVIF (Profile G) support, ONVIF (Profile M) support, ONVIF (Profile S) support, ONVIF (Profile T) support, Pixel Counter Support, human detection, Vehicle Detection, memory card encryption, NAS-Ready
- Basic Specifications - Focal Length
- 2.4 mm
- Basic Specifications - Focal Length Control
- Fixed focal
- Basic Specifications - Frame Rate (max)
- 30 frames per second
- Basic Specifications - Interfaces
- Ethernet 10Base-T/100Base-TX
- Basic Specifications - Lens Iris
- F/2.1 - fixed iris
- Basic Specifications - Manufacturer Warranty
- 5-year warranty
- Basic Specifications - Manufacturer's Part Number
- 02374-001
- Basic Specifications - Max Resolution
- 2688 x 1512
- Basic Specifications - Minimum Illumination
- 0.19 lux - colour - F2.1 - 50 IRE ¦ 0.03 lux - B&W - F2.1 - 50 IRE
- Basic Specifications - Model
- AXIS M3086-V
- Basic Specifications - Motion Detection
- Yes
- Basic Specifications - Optical Sensor Type
- PS RGB CMOS - 1/2.7" - 4 MP
- Basic Specifications - Panning Range (degree)
- -175 to +175
- Basic Specifications - Product Description

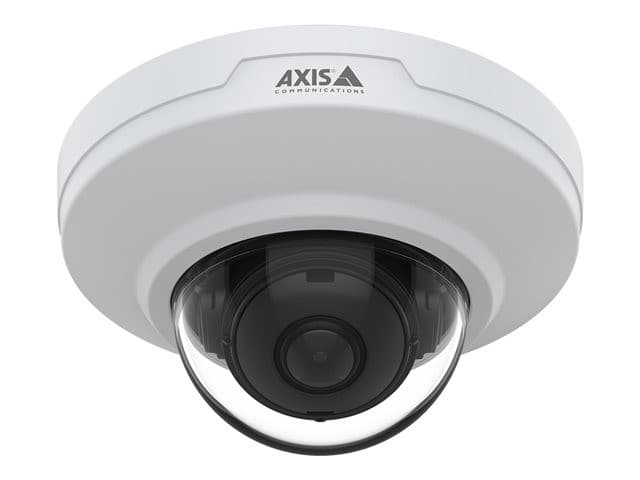

- AXIS M3086-V - network surveillance camera - dome
- Basic Specifications - Tilting Range (degree)
- -80 to +80
- Basic Specifications - Voltage
- PoE Plus Class 2
- Basic Specifications - Weight
- 150 g
- Camera - Digital Video Capture Resolution
- 2688 x 1512, 320 x 240
- Camera - Digital Video Format
- MJPEG, H.264, MPEG-4 Part 10, AVC, H.265, MPEG-H Part 2, HEVC
- Camera - Exposure Range
- 1/5 sec - 1/38500 sec
- Camera - Features
- IR Corrected lens, infrared-cut filter, Lightfinder technology, deep learning processing unit (DLPU), Zipstream technology, Variable Bitrate (VBR), Multi-Bitrate (MBR), up to 2 view areas, 180° image rotation, 270° image rotation, 90° image rotation, brightness control, colour control, compression, contrast control, Corridor mode, exposure control, image mirror, motion-adaptive exposure, Privacy Mask Function, sharpness control, white balance, Wide Dynamic Range (WDR), digital PTZ function, Axis device ID, Axis Edge Vault, brute force delay protection, centralised certificate management, digest authentication, HTTPs encryption, IP address filtering, password protection, secure boot, signed firmware, user access log, VAPIX support, ONVIF (Profile G) support, ONVIF (Profile M) support, ONVIF (Profile S) support, ONVIF (Profile T) support, Pixel Counter Support, human detection, Vehicle Detection, memory card encryption, NAS-Ready
- Camera - Flash Memory
- 512 MB
- Camera - Frame Rate (max)
- 30 frames per second
- Camera - Max Digital Video Resolution
- 2688 x 1512
- Camera - Minimum Illumination
- 0.19 lux - colour - F2.1 - 50 IRE ¦ 0.03 lux - B&W - F2.1 - 50 IRE
- Camera - Motion Detection
- Yes
- Camera - RAM
- 1 GB
- Camera - Type
- Colour - Day&Night - fixed - vandal resistant / impact resistant / dust resistant / water resistant
- Environmental Parameters - Max Operating Temperature
- 45 °C
- Environmental Parameters - Min Operating Temperature
- 0 °C
- Environmental Parameters - Relative Humidity (operating)
- 10 - 85% RH (non-condensing)
- Expansion / Connectivity - Ports
- LAN/power - RJ-45
- Expansion / Connectivity - Supported Memory Cards
- microSD Card, microSDHC Card, microSDXC Card
- General - Audio Support
- Yes: two-way audio via optional audio and I/O interface
- General - Connectivity Technology
- Wired
- General - Depth
- 10.1 cm
- General - Device Type
- Network surveillance camera
- General - Form Factor
- Dome
- General - Height
- 5.6 cm
- General - Localisation
- Argentina, Australia, Brazil, China, Europe, India, Japan, Korea, United Kingdom, United States
- General - Weight
- 150 g
- General - Width
- 10.1 cm
- Image Sensor - Type
- 4 MP PS RGB CMOS 1/2.7"
- Interfaces - Network Interface
- Ethernet 10Base-T/100Base-TX
- Interfaces - Network Protocols
- IPv4, IPv6, USGv6, ICMP, HTTP, HTTPS, TLS, QOS, FTP, SFTP, CIFS, SMB, SMTP, Bonjour, UPnP, SNMP 1, SNMP 2c, SNMP 3, DNS, DDNS, NTP, RTSP, RTCP, RTP, SRTP, TCP/IP, UDP/IP, IGMP, IGMPv2, IGMPv3, DHCP, SSH, LLDP, CDP, MQTT, Syslog, Zeroconf
- Lens Construction - Focal Length
- 2.4 mm
- Lens Construction - Horizontal Field of View (degree)
- 130
- Lens Construction - Lens Iris
- F/2.1 fixed iris
- Lens Construction - Type
- Fixed focal
- Lens Construction - Vertical Field of View (degree)
- 93
- Manufacturer Warranty - Service & Support
- Limited warranty - 5 years
- Miscellaneous - Colour
- White, NCS S 1002-B
- Miscellaneous - Compliant Standards
- PVC-free, BFR-free, CFR free, IEEE 802.3af, IEEE 802.3at, ICES-3(A)/NMB-3(A), EN 55032 Class A, EN 55035, EN 61000-6-1, EN 61000-6-2, FCC Part 15 B Class A, ICES-003 Class A, VCCI Class A, KS C 9835, KS C 9832 Class A, RCM, AS/NZS CISPR 32 Class A, IEC/EN/UL 62368-1, IEC 60068-2, IEC/EN 60529 IP42, IEC/EN 62262 IK08, NIST SP500-267
- Panning - Range (degree)
- -175 to +175
- Power - Power Device
- 3.6 Watt
- Power - Power Requirements
- PoE Plus Class 2
- Software / System Requirements - Software Included
- AXIS Object Analytics, AXIS Video Motion Detection, Windows decoder 1-user licence
- Tilting - Range (degree)
- -80 to +80
