- Basic Specifications - Data Link Protocol
- Ethernet, Fast Ethernet
- Basic Specifications - Device Type
- VoIP phone adapter
- Basic Specifications - Dimensions (WxDxH)
- 10 cm x 10 cm x 2.8 cm
- Basic Specifications - EAN
- 8592978121907
- Basic Specifications - Form Factor
- External
- Basic Specifications - Manufacturer Warranty
- 1-year warranty
- Basic Specifications - Manufacturer's Part Number
- ATA192-3PW-K9
- Basic Specifications - Model

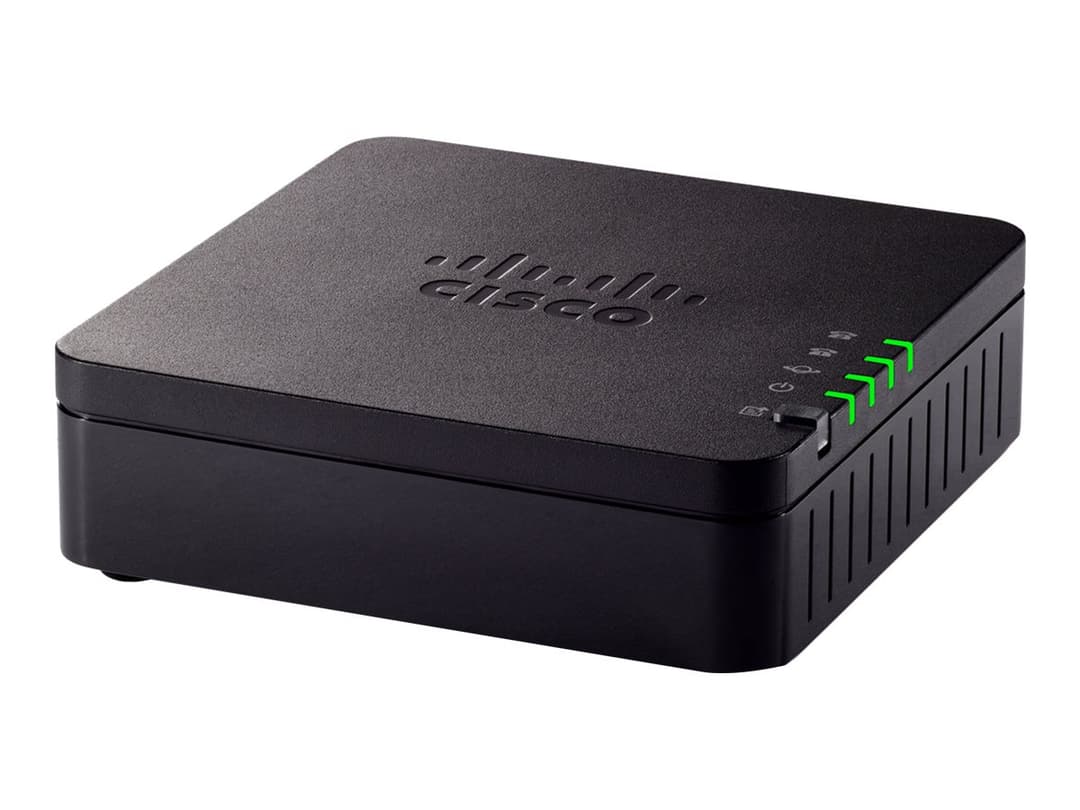

- Cisco ATA 192 Multiplatform Analog Telephone Adapter
- Basic Specifications - Ports Qty
- 2
- Basic Specifications - Power
- AC 120/230 V / DC 5 V (50/60 Hz)
- Basic Specifications - Product Description
- Cisco ATA 192 Multiplatform Analog Telephone Adapter - VoIP phone adapter
- Basic Specifications - Telephony Interfaces
- 2 phone (FXS)
- Basic Specifications - VoIP Protocols
- SIP, RTP, RTCP, SRTP
- Basic Specifications - Weight
- 132.1 g
- Environmental Parameters - Humidity Range Operating
- 10 - 90% (non-condensing)
- Environmental Parameters - Max Operating Temperature
- 40 °C
- Environmental Parameters - Min Operating Temperature
- 0 °C
- Expansion / Connectivity - Interfaces
- 2 x FXS - RJ-11 ¦ 2 x 100Base-TX - RJ-45
- General - Depth
- 10 cm
- General - Device Type
- VoIP phone adapter
- General - Height
- 2.8 cm
- General - Weight
- 132.1 g
- General - Width
- 10 cm
- IP Telephony - IP Telephony Features
- Call waiting, call forwarding, call hold, caller ID block/unblock, Caller ID, call transfer, distinctive ringing, Do-not-disturb (DND) support
- IP Telephony - Telephony Interfaces
- 2 phone (FXS)
- IP Telephony - Voice Codecs
- G.711a, G.711µ, G.726, G.729a, G.729ab, T.38, G.711
- IP Telephony - VoIP Protocols
- SIP, RTP, RTCP, SRTP
- Manufacturer Warranty - Service & Support
- Limited warranty - 1 year
- Miscellaneous - Compliant Standards
- Directive 2014/30/EU, Directive 2014/35/EU, UL 60950 Second Edition, CAN/CSA C22.2 No. 60950 Second Edition, IEC 60950-1:2005 Second Edition, AS/NZS 60950-1:2015, AS/NZS CISPR32:2015 Class B, CISPR 32:2015 Class B, EN 55032:2015 Class B, EN 61000-3-2:2014 Class A, EN 61000-3-3:2013, EN 55024:2010+A1:2015, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 61000-4-11, FCC Part 15 B, ANSI C63.4-2014, ICES-003:2016
- Miscellaneous - MTBF
- 300,000 hours
- Networking - Authentication Method
- Secure Shell (SSH)
- Networking - Compliant Standards
- IEEE 802.1ab (LLDP), IEEE 802.1p, IEEE 802.1Q
- Networking - Connectivity Technology
- Wired
- Networking - Data Link Protocol
- Ethernet, Fast Ethernet
- Networking - Encryption Algorithm
- ESP, AES, TLS 1.1, TLS 1.2
- Networking - Features
- IPv6 support, reset button, wall mountable, DHCP client, Internet Control Message Protocol (ICMP), SNTP support, Cisco Discovery Protocol, LLDP support, NAT support, port forwarding, DiffServ support, Type of Service (ToS), Automated Attendant (IVR), Syslog support, dual image support
- Networking - Form Factor
- External
- Networking - Network / Transport Protocol
- TCP/IP, UDP/IP, RTCP, RTP, ARP, PPPoE, IPSec, PPTP, L2TP
- Networking - Ports Qty
- 2
- Networking - Remote Management Protocol
- TR-069, HTTP, HTTPS, TFTP, SSH, SNMP 3
- Networking - Status Indicators
- Internet, phone, power
- Power - Power Consumption Operational
- 5 Watt
- Power - Power Device
- External power adapter
- Power - Voltage Required
- AC 120/230 V / DC 5 V (50/60 Hz)
