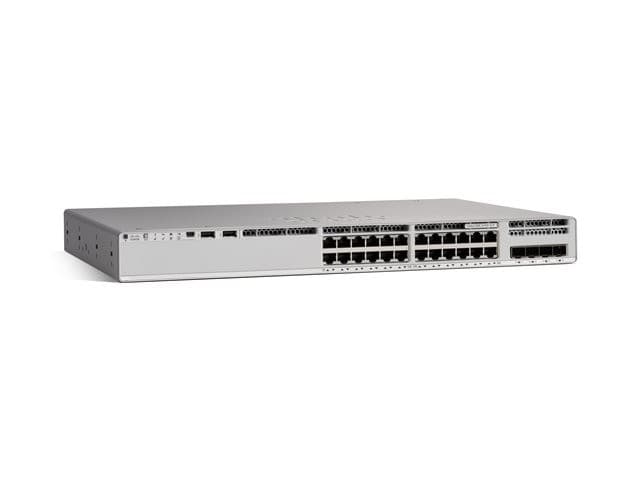

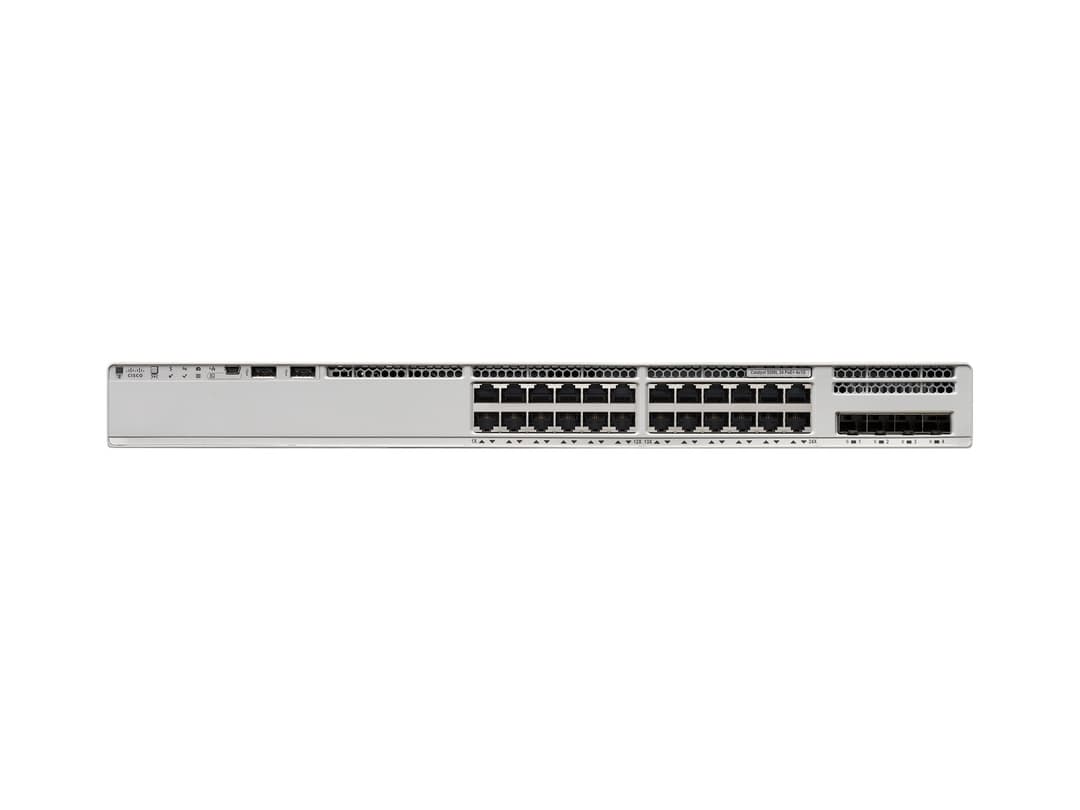

Cisco Catalyst 9200L Switch 24 Port

Name: Cisco Catalyst 9200L Switch 24 Port
Brand: CISCO
SKU: A1T-Q6DSPOXGMM
Price: 1009.99 GBP
Availability: InStock

£1,009.99

Price includes VAT

QTY

Cisco Catalyst 9200L Switch 24 Port · Brand New

Cisco Catalyst 9200L Switch 24 Port

Brand New

£1,009.99

Price includes VAT

Category: Other

About this product

Product description

Layer 3 stackable switch with 24 Gigabit Ethernet ports offering PoE+ (740W budget) plus 4 SFP uplink ports. Supports 11,000 IPv4 routes, 1024 VLANs, and advanced routing protocols including OSPF, EIGRP, and PIM. Rack-mountable design with jumbo frame support (9198 bytes) and comprehensive network management via SNMP, NETCONF, and RESTCONF.

Full specification

What's inside

Basic Specifications - Capacity: Virtual networks: 1 ¦ IPv4 routes: 11000 ¦ IPv4 routing table entries: 3000 ¦ IPv6 routing table entries: 1500 ¦ Multicast scale: 1000 ¦ ACL scale entries: 1500 ¦ FNF entries: 16000 ¦ VLANs supported: 1024 ¦ Switched virtual interfaces (SVIs): 512 ¦ QoS hardware queues per port: 8
Basic Specifications - Compliant Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3at
Basic Specifications - Device Type: Switch - 24 ports - L3 - stackable
Basic Specifications - Dimensions (WxDxH): 44.5 cm x 4.4 cm x 28.8 cm
Basic Specifications - EAN: 8592978158392
Basic Specifications - Enclosure Type: Rack-mountable
Basic Specifications - Features: QoS, Cisco StackWise Technology, Rapid PVST+, SRR, PXE support, RSPAN, NetFlow, Energy Efficient Ethernet, MIB, CoS, FNF, 802.1x authentication, DSCP support, MACsec support, 6MB packet buffer, CoPP, SPAN, EEM, PIM, FHS, PVLAN support, CIR
Basic Specifications - Jumbo Frame Support: 9198 bytes
Basic Specifications - MAC Address Table Size: 16000 entries
Basic Specifications - Manufacturer Warranty: Limited lifetime warranty
Basic Specifications - Manufacturer's Part Number: C9200L-24P-4G-E
Basic Specifications - Model: Cisco Catalyst 9200L
Basic Specifications - Performance: Stacking bandwidth: 80 Gbps ¦ Switching capacity: 56 Gbps ¦ Forwarding rate: 83.33 Mpps
Basic Specifications - PoE Budget: 740 W
Basic Specifications - Ports: 24 x 10/100/1000 (PoE+) + 4 x Gigabit SFP (uplink)
Basic Specifications - Power: AC 100-240 V (50 - 60 Hz)
Basic Specifications - Power Over Ethernet (PoE): PoE+
Basic Specifications - Power Redundancy: Optional
Basic Specifications - Product Description: Cisco Catalyst 9200L - Network Essentials - switch - 24 ports - rack-mountable
Basic Specifications - Remote Management Protocol: SNMP 1, RMON 1, RMON 2, SNMP 3, SNMP 2c, CLI, NETCONF, RESTCONF
Basic Specifications - Routing Protocol: OSPF, RIP-1, RIP-2, EIGRP, VRRP, PIM-SM, EIGRP for IPv6, PIM-SSM, policy-based routing (PBR), RIPng, MSTP
Basic Specifications - Subtype: Gigabit Ethernet
Basic Specifications - Weight: 4.35 kg
Dimensions & Weight - Depth: 4.4 cm
Dimensions & Weight - Height: 28.8 cm
Dimensions & Weight - Weight: 4.35 kg
Dimensions & Weight - Width: 44.5 cm
Environmental Parameters - Humidity Range Operating: 5 - 90% (non-condensing)
Environmental Parameters - Humidity Range Storage: 5 - 90% (non-condensing)
Environmental Parameters - Max Storage Temperature: 70 °C
Environmental Parameters - Min Storage Temperature: -40 °C
Expansion / Connectivity - Interfaces: 24 x 1000Base-T RJ-45 PoE+ - 30 W ¦ 4 x 1000Base-X SFP uplink ¦ 1 x network stack device ¦ 1 x management (LAN) RJ-45 ¦ 1 x console RJ-45
General - Capacity: Virtual networks: 1 ¦ IPv4 routes: 11000 ¦ IPv4 routing table entries: 3000 ¦ IPv6 routing table entries: 1500 ¦ Multicast scale: 1000 ¦ ACL scale entries: 1500 ¦ FNF entries: 16000 ¦ VLANs supported: 1024 ¦ Switched virtual interfaces (SVIs): 512 ¦ QoS hardware queues per port: 8
General - Compliant Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3at
General - Device Type: Switch - 24 ports - L3 - stackable
General - Enclosure Type: Rack-mountable
General - Features: QoS, Cisco StackWise Technology, Rapid PVST+, SRR, PXE support, RSPAN, NetFlow, Energy Efficient Ethernet, MIB, CoS, FNF, 802.1x authentication, DSCP support, MACsec support, 6MB packet buffer, CoPP, SPAN, EEM, PIM, FHS, PVLAN support, CIR
General - Flash Memory: 4 GB
General - Jumbo Frame Support: 9198 bytes
General - MAC Address Table Size: 16000 entries
General - Performance: Stacking bandwidth: 80 Gbps ¦ Switching capacity: 56 Gbps ¦ Forwarding rate: 83.33 Mpps
General - PoE Budget: 740 W
General - Ports: 24 x 10/100/1000 (PoE+) + 4 x Gigabit SFP (uplink)
General - Power Over Ethernet (PoE): PoE+
General - RAM: 2 GB
General - Remote Management Protocol: SNMP 1, RMON 1, RMON 2, SNMP 3, SNMP 2c, CLI, NETCONF, RESTCONF
General - Routing Protocol: OSPF, RIP-1, RIP-2, EIGRP, VRRP, PIM-SM, EIGRP for IPv6, PIM-SSM, policy-based routing (PBR), RIPng, MSTP
General - Subtype: Gigabit Ethernet
Manufacturer Warranty - Service & Support: Limited warranty - advance parts replacement - lifetime - response time: next business day
Miscellaneous - Compliant Standards: CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, EN 61000-6-1, AS/NZS 60950-1, CCC, ICES-003 Class A, UL 60950-1, IEC 60950-1, EN 60950-1, RoHS, AS/NZS 3548 Class A, BSMI Class A, VCCI Class A, CNS 13438, EN 55022 Class A, FCC CFR47 Part 15 B Class A, EN 300 386, KN32, KN35, EN 55032 Class A, CISPR 32 Class A, CAN/CSA-C22.2 No. 60950-1, TCVN 7189 Class A, V-3 Class A, TCVN 7317, CISPR 35
Miscellaneous - MTBF: 392,210 hours
Power - Max Supported Qty: 2
Power - Power Device: Internal power supply - hot-plug
Power - Power Redundancy: Optional
Power - Voltage Required: AC 100-240 V (50 - 60 Hz)
