- Basic Specifications - Batteries Qty
- 6
- Basic Specifications - Battery
- Lead Acid expandable - 9 Ah
- Basic Specifications - Colour
- Black, silver
- Basic Specifications - Device Type
- UPS - rack-mountable / external
- Basic Specifications - Dimensions (WxDxH)
- 43.8 cm x 60.3 cm x 8.55 cm
- Basic Specifications - EAN
- 3553340620935
- Basic Specifications - Environmental Standards
- ENERGY STAR
- Basic Specifications - Included Accessories
- Tower stand
- Basic Specifications - Input Connectors
- 1 x power BS
- Basic Specifications - Input Voltage
- AC 200/208/220/230/240 V
- Basic Specifications - Input Wiring
- 1-phase
- Basic Specifications - Manufacturer Warranty
- 3-year warranty
- Basic Specifications - Manufacturer's Part Number
- 5PX3000IRTNG2BS
- Basic Specifications - Model
- Eaton 5PX G2
- Basic Specifications - Networking
- Ethernet 10/100/1000, RS-232, USB
- Basic Specifications - Output connectors
- 8 x power IEC 60320 C13 ¦ 2 x power IEC 60320 C19
- Basic Specifications - Output Voltage
- AC 200/208/220/230/240 V
- Basic Specifications - Power Capacity
- 3000 Watt / 3000 VA
- Basic Specifications - Product Description

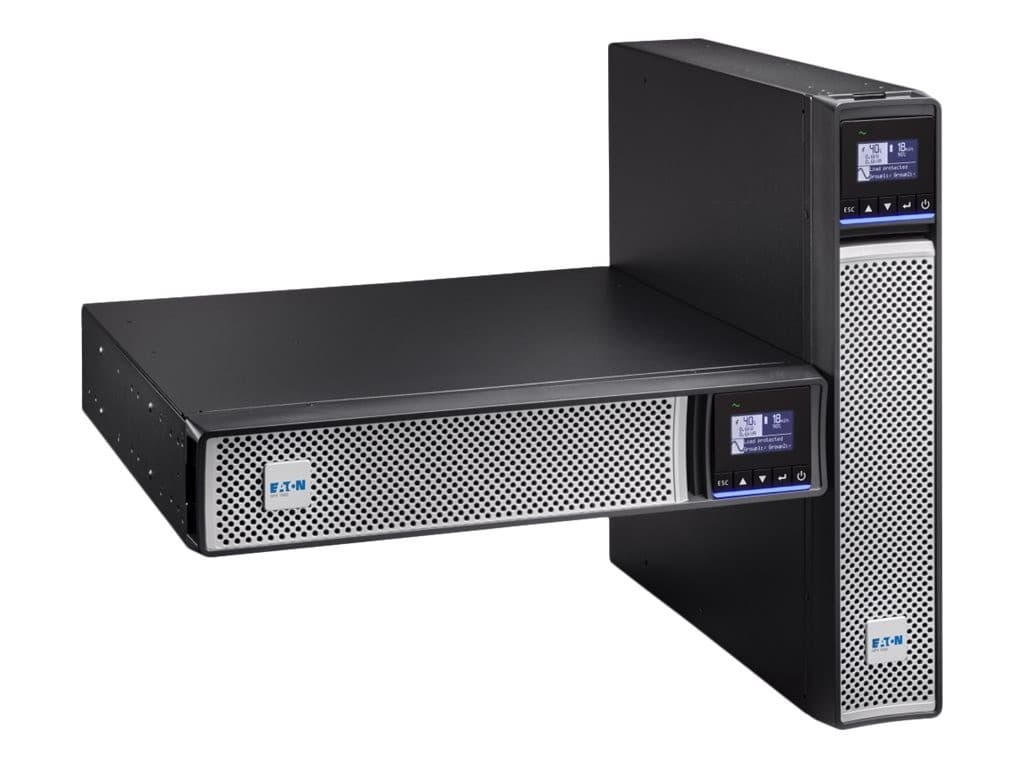

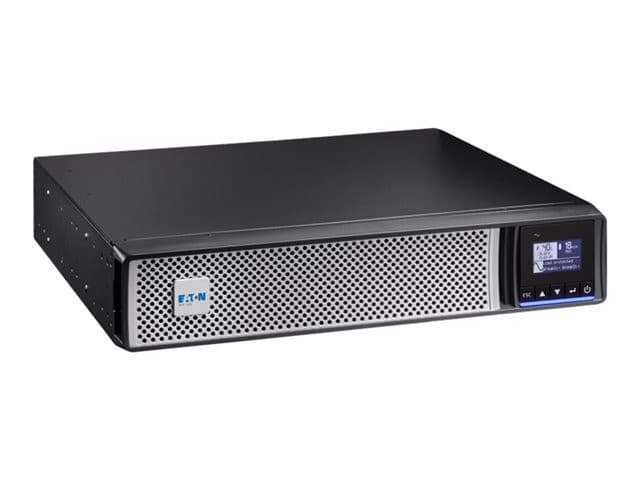

- Eaton 5PX G2 - Netpack - UPS - 3000 Watt - 3000 VA
- Basic Specifications - Product Type
- UPS
- Basic Specifications - Rack Size
- 2U
- Basic Specifications - Remote Management Protocol
- SNMP 1, SNMP 3, IPv6, IPv4, HTTP, HTTPS, DHCP, NTP, SMTP, SMTPS, SSH, CLI
- Basic Specifications - Weight
- 32.68 kg
- Battery - Capacity
- 9 Ah
- Battery - Features
- Maintenance free
- Battery - Quantity
- 6
- Battery - Run Time (Up To)
- 68 min at 300 Watts ¦ 39 min at 500 Watts ¦ 23 min at 800 Watts ¦ 13 min at 1200 Watts ¦ 7 min at 1800 Watts ¦ 4 min at 2500 Watts
- Battery - Technology
- Lead Acid
- Battery - Type
- Expandable
- Battery - Voltage Provided
- 12 V
- Dimensions & Weight - Depth
- 60.3 cm
- Dimensions & Weight - Height
- 8.55 cm
- Dimensions & Weight - Weight
- 32.68 kg
- Dimensions & Weight - Width
- 43.8 cm
- Environmental Parameters - Humidity Range Operating
- 0 - 90% (non-condensing)
- Environmental Parameters - Max Operating Temperature
- 40 °C
- Environmental Parameters - Min Operating Temperature
- 0 °C
- Environmental Parameters - Sound Emission
- 40 dB
- Environmental Standards - ENERGY STAR
- Yes
- Expansion / Connectivity - Expansion Slots
- 1 (total) / 0 (free) x Expansion Slot
- Expansion / Connectivity - Interfaces
- 1 x management (RS-232) - 9 pin D-Sub (DB-9) ¦ 1 x management (USB) - 4 pin USB Type B ¦ 1 x remote power (on/off) - mini terminal block ¦ 1 x remote power off - mini terminal block ¦ 1 x relay output - mini terminal block ¦ 1 x management (Gigabit Ethernet) - RJ-45 ¦ 1 x USB - 4 pin USB Type A ¦ 1 x management (USB) - Micro-USB Type B
- General - Colour
- Black, silver
- General - Device Type
- UPS - rack-mountable / external
- General - Height (Rack Units)
- 2U
- Manufacturer Warranty - Service & Support
- Limited warranty - 3 years ¦ Limited warranty - batteries - 2 years
- Miscellaneous - Cables Included
- 3 x power cable - external ¦ USB cable - external ¦ Serial cable - external
- Miscellaneous - Compliant Standards
- EN 62040-1, IEC 62040-1, EN 62040-2, IEC 62040-2, EN 62040-3, IEC 62040-3, RoHS, REACH, UL 1778, CSA 22.2, cTUVus, EAC, CM, UKCA, KCC
- Miscellaneous - Features
- LCD display, Automatic Voltage Regulation (AVR), Advance Battery Management (ABM), automatic self-test, deep discharge protection, automatic shut down
- Miscellaneous - Included Accessories
- Tower stand
- Miscellaneous - Rack Mounting Kit
- Included
- Networking - Remote Management Interface
- Ethernet 10/100/1000, RS-232, USB
- Networking - Remote Management Protocol
- SNMP 1, SNMP 3, IPv6, IPv4, HTTP, HTTPS, DHCP, NTP, SMTP, SMTPS, SSH, CLI
- Power Device - Frequency Provided
- 50/60 Hz ± 0.1Hz
- Power Device - Frequency Required
- 40 - 70 Hz
- Power Device - Input Connectors
- 1 x power BS
- Power Device - Input Voltage
- AC 200/208/220/230/240 V
- Power Device - Input Voltage Range
- AC 160 - 294 V
- Power Device - Input Voltage Range (Adjustable)
- AC 150 - 294 V
- Power Device - Input Wiring
- 1-phase
- Power Device - Output Voltage
- AC 200/208/220/230/240 V 50/60 Hz
- Power Device - Output Waveform
- Sinewave
- Power Device - Power Capacity
- 3000 Watt / 3000 VA
- Power Device - Power Output Connectors Details
- 8 x power IEC 60320 C13 ¦ 2 x power IEC 60320 C19
- Power Device - UPS Technology
- Line interactive
- Sustainability Information - ENERGY STAR
- Yes
