- Basic Specifications - EAN
- 4711377154017
- Basic Specifications - Form Factor
- Micro ATX
- Basic Specifications - Manufacturer's Part Number
- 124369
- Basic Specifications - Max RAM Size
- 256 GB
- Basic Specifications - Processor Socket
- LGA1700

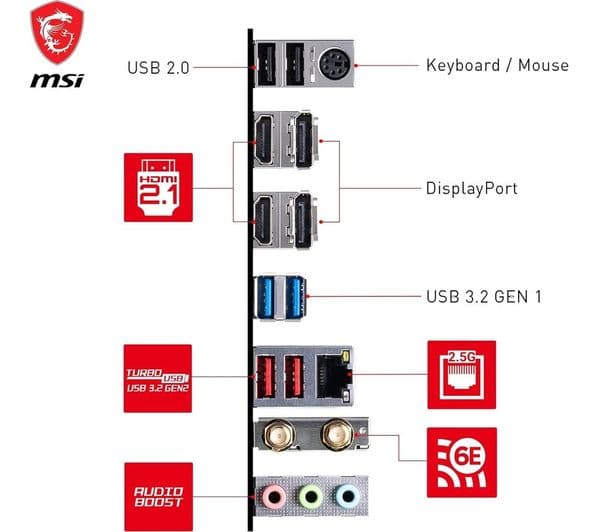

- External connectivity - Audio
- Realtek® ALC897 Codec 7.1-Channel High Definition Audio
- External connectivity - LAN
- - Intel® Wi-Fi 6E- Bluetooth 5.3- 2.5G Ethernet port x 1
- External connectivity - USB
- - USB 2.0 x 2- USB 3.2 x 4
- External connectivity - Video output
- - HDMI x 2- DisplayPort x 2

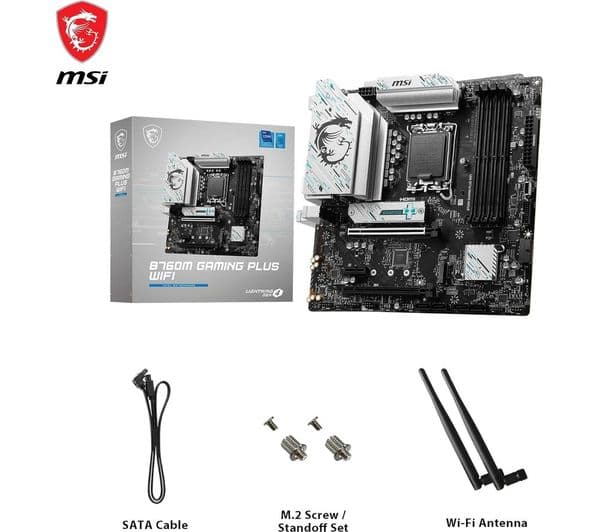

- General - Box contents

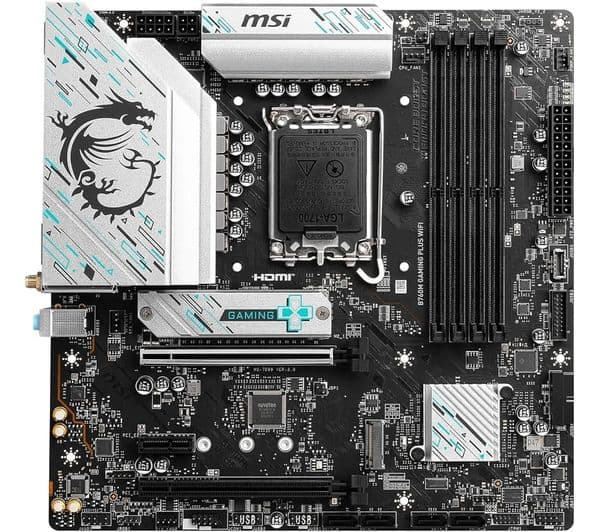

- - MSI B760M GAMING PLUS WIFI LGA1700 Motherboard- SATA cables x 1- M.2 Screw / Standoff Set x 2- WiFi antenna x 1- IO shield- Quick installation guide
- General - Colour
- Black
- General - Dimensions
- 270 x 298 mm (H x W)
- General - Manufacturer’s guarantee
- 3 years
- General - Weight
- 1.26 kg
- Internal connectivity - Cooling
- - CPU fan 4-pin x 1- Pump fan 4-pin x 1- System fan 4-pin x 2
- Internal connectivity - Expansion slots
- - PCIe 4.0 (x4 slot) x 2
- Internal connectivity - Other internal connections
- - Addressable V2 RGB LED connector x 2- RGB LED 4-pin x 1- EZ Debug LED x 4
- Internal connectivity - Power
- - ATX x 1- CPU_PWR x 2
- Internal connectivity - Storage slots
- - SATA x 4 (6 GB/s) - M.2 Gen4 x 1 (64 Gb/s)
- Internal connectivity - USB
- - USB Type-C x 1- USB 3.2 x 4- USB 2.0 x 4
- Overview - Chipset
- Intel® B760

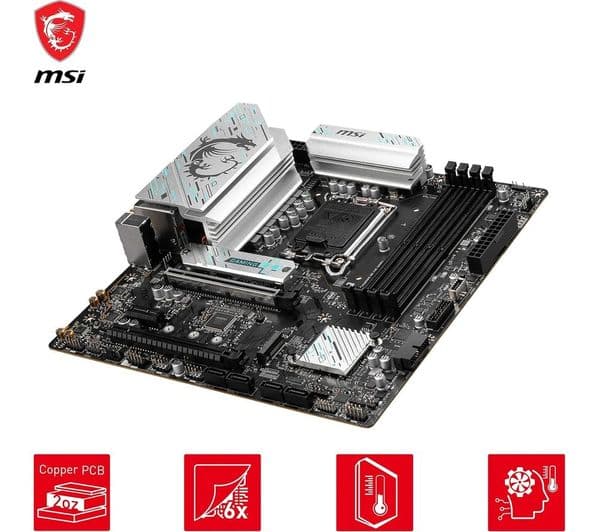

- Overview - Cooling features
- - Fan cooling- Extended PWM heatsink- M.2 Shield Frozr- Frozr AI cooling- Plated VRM heatsink- PCI-E Steel Armor- MOSFET thermal pads
- Overview - Form factor
- Micro ATX
- Overview - Memory slots
- 4 x DDR5 (Max RAM: 256 GB)
- Overview - Memory standard
- DDR5
- Overview - Operating systems supported
- - Windows 10- Windows 11
- Overview - Processor models supported
- 14th/ 13th/ 12th generation Intel® Core™ / Pentium® Gold / Celeron® processors
- Overview - Socket
- Intel® LGA1700
