- Basic Specifications - EAN
- 4711377286589
- Basic Specifications - Manufacturer's Part Number
- 126159
- External connectivity - Audio
- 3.5 mm jack x 3
- External connectivity - Other external connections
- - Bluetooth v5.4- Wi-Fi 7
- External connectivity - USB
- - USB 2.0 x 4- USB Type-C x 1
- External connectivity - Video output
- HDMI x 1

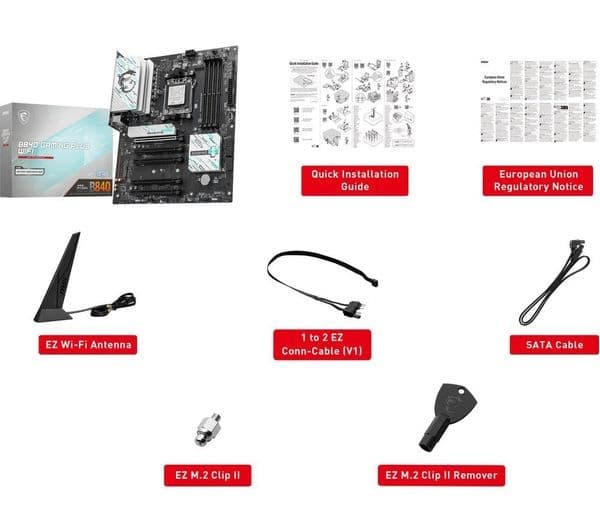

- General - Box contents
- - MSI B840 Gaming Plus WiFi AMD Motherboard - Quick installation guide- EZ Wi-Fi antenna- SATA cable- EZ M.2 clips- EZ M.2 Clips remover- 1 to 2 EZ Conn-cable (V1)
- General - Colour
- Black
- General - Dimensions
- 70 x 270 x 345 mm (H x W x D)
- General - Manufacturer’s guarantee
- 3 years
- General - Software included
- Installation software
- General - Weight
- 1.63 kg
- Internal connectivity - BIOS
- AMI BIOS
- Internal connectivity - Buttons
- - Clear CMOS- Flash BIOS
- Internal connectivity - Case
- - Power LED- HDD LED
- Internal connectivity - Cooling
- - CPU fan 4-pin x 1- Case fan 3-pin x 4
- Internal connectivity - Expansion slots
- - PCIe 4.0 x16 slot x 1- PCIe 3.0 x16 slot x 1- PCIe 3.0 x1 slots x 3
- Internal connectivity - Other internal connections
- - RGB strip header- EZ Debug LED
- Internal connectivity - Power
- - 24-pin ATX x 1- 8-pin ATX 12 V x 1
- Internal connectivity - Sensors
- - Thermal sensor x 1- Fan speed sensor x 1
- Internal connectivity - Storage slots
- - SATA x 4 (6 GB/s)- M.2 x 2
- Internal connectivity - USB
- - USB 10Gbps (1 Type-A + 1 Type-C) x 2- USB 5Gbps (4 Type-A + 1 Type-C) x 5- USB 2.0 x 8
- Overview - Chipset
- AMD B840
- Overview - Cooling features
- - Audio Boost- Wi-Fi 7- Latest DDR5 memory- Lightning Gen4 solution - Extended heatsink design- EZ M.2 shield frozr II- EZ PCIe Clip II- Pre-installed I/O shielding- 2.5G network solution- Dual M.2 connectors
- Overview - Form factor
- ATX
- Overview - Memory slots
- 4 x DDR5 (Max RAM: 256 GB)
- Overview - Memory standard
- DDR5
- Overview - Operating systems supported
- Windows 10 or later
- Overview - Processor models supported
- AMD Ryzen 9000, 8000 & 7000 Series
- Overview - Socket
- AMD AM5
