- Basic Specifications - Colour
- Black
- Basic Specifications - Data Link Protocol
- Parallel
- Basic Specifications - Data Transfer Rate
- 2.5 Mbps
- Basic Specifications - Device Type
- Parallel adapter
- Basic Specifications - Dimensions (WxDxH)
- 7.3 cm x 12 cm x 1.85 cm
- Basic Specifications - EAN
- 0065030891400
- Basic Specifications - Form Factor
- Plug-in card
- Basic Specifications - Interface (Bus) Type
- PCI Express
- Basic Specifications - Manufacturer Warranty
- 2-year warranty
- Basic Specifications - Manufacturer's Part Number
- PEX1P2
- Basic Specifications - Model

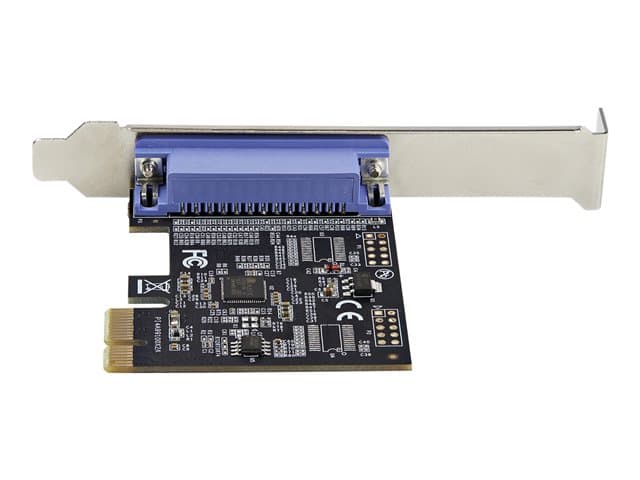

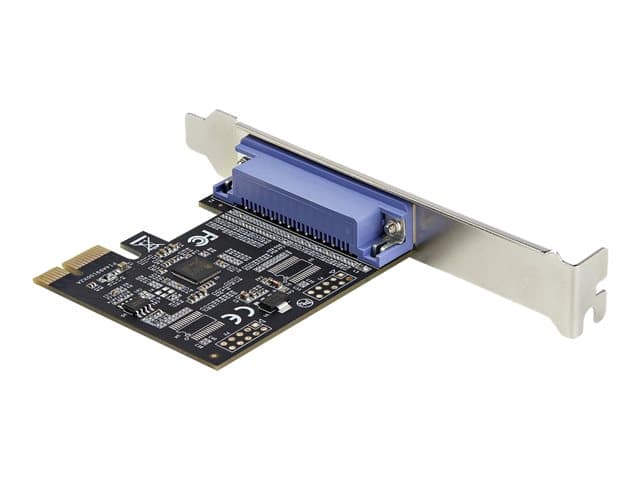

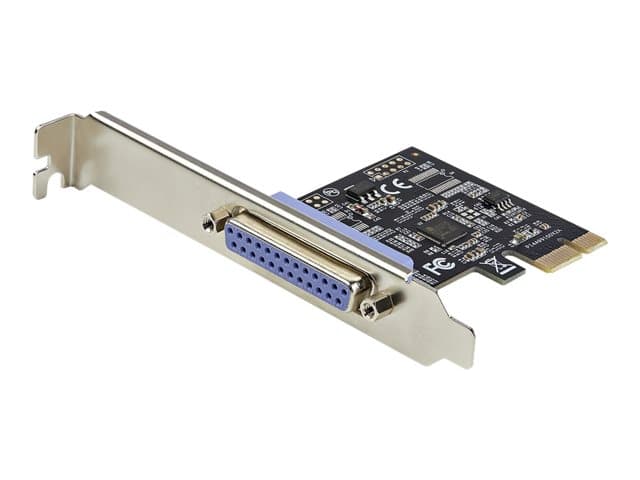

- StarTech.com 1-Port Parallel PCIe Card, PCI Express to Parallel DB25 LPT Adapter Card, Desktop Expansion Controller for Printer, SPP/ECP
- Basic Specifications - PCI Specification Revision
- PCIe 2.0
- Basic Specifications - Ports
- IEEE 1284
- Basic Specifications - Processor
- ASIX AX99100
- Basic Specifications - Product Description
- StarTech.com 1-Port Parallel PCIe Card, PCI Express to Parallel DB25 LPT Adapter Card, Desktop Expansion Controller for Printer, SPP/ECP - parallel adapter - PCIe - IEEE 1284
- Basic Specifications - System Requirements
- Linux 2.6.x or later, Microsoft Windows 2003, Microsoft Windows 7 / 8 / 8.1 / 10, Microsoft Windows Server 2008 R2, Microsoft Windows Server 2012, Microsoft Windows Server 2012 R2, Microsoft Windows Server 2016, Microsoft Windows Server 2019
- Basic Specifications - Weight
- 45 g
- Dimensions & Weight - Depth
- 12 cm
- Dimensions & Weight - Height
- 1.85 cm
- Dimensions & Weight - Weight
- 45 g
- Dimensions & Weight - Width
- 7.3 cm
- Dimensions & Weight (Shipping) - Shipping Depth
- 14.2 cm
- Dimensions & Weight (Shipping) - Shipping Height
- 3 cm
- Dimensions & Weight (Shipping) - Shipping Weight
- 290 g
- Dimensions & Weight (Shipping) - Shipping Width
- 17 cm
- Environmental Parameters - Humidity Range Operating
- 40 - 80%
- Environmental Parameters - Max Operating Temperature
- 50 °C
- Environmental Parameters - Min Operating Temperature
- 5 °C
- Expansion / Connectivity - Interfaces
- 1 x IEEE 1284 (EPP/ECP) - 25 pin D-Sub (DB-25)
- General - Device Type
- Parallel adapter
- General - Form Factor
- Plug-in card
- General - Interface (Bus) Type
- PCI Express
- General - PCI Specification Revision
- PCIe 2.0
- Manufacturer Warranty - Service & Support
- Limited warranty - 2 years
- Miscellaneous - Colour
- Black
- Miscellaneous - Compliant Standards
- FCC, RCM, RoHS, WEEE
- Miscellaneous - Included Accessories
- Low-profile bracket
- Miscellaneous - MTBF
- 17,520 hours
- Networking - Connectivity Technology
- Wired
- Networking - Data Link Protocol
- Parallel
- Networking - Data Transfer Rate
- 2.5 Mbps
- Networking - Ports
- IEEE 1284
- Processor / Memory - Processor
- ASIX AX99100
- Software / System Requirements - OS Required
- Linux 2.6.x or later, Microsoft Windows 2003, Microsoft Windows 7 / 8 / 8.1 / 10, Microsoft Windows Server 2008 R2, Microsoft Windows Server 2012, Microsoft Windows Server 2012 R2, Microsoft Windows Server 2016, Microsoft Windows Server 2019
