- Basic Specifications - Cabling Type
- 1000Base-SX, 1000Base-T
- Basic Specifications - Data Link Protocol
- 1GbE, 10Mb LAN, 100Mb LAN
- Basic Specifications - Data Transfer Rate
- 1 Gbps
- Basic Specifications - Device Type
- Fibre media converter - RJ-45 / SFP (mini-GBIC)
- Basic Specifications - Dimensions (WxDxH)
- 3.6 cm x 5.9 cm x 4.9 cm
- Basic Specifications - EAN
- 0065030889575
- Basic Specifications - Form Factor
- DIN rail mountable
- Basic Specifications - Manufacturer Warranty
- 2-year warranty
- Basic Specifications - Manufacturer's Part Number
- IMC1GSFP30W
- Basic Specifications - Max Transfer Distance
- 10 km
- Basic Specifications - Model

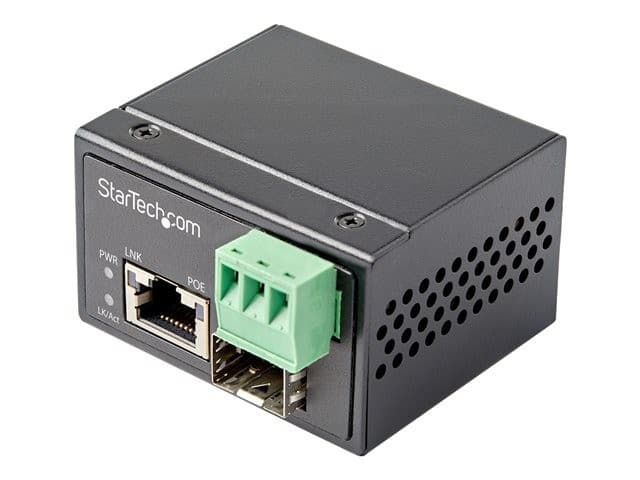

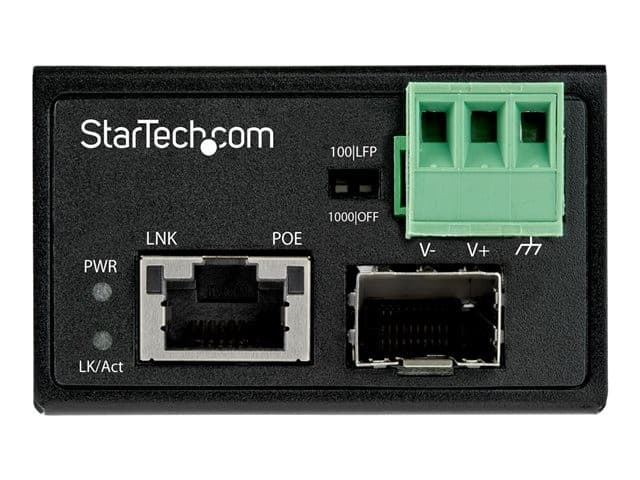

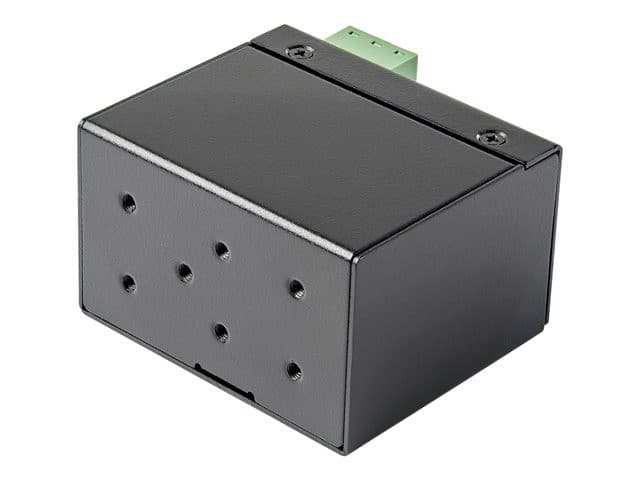

- StarTech.com PoE+ Industrial Fiber to Ethernet Media Converter 30W, SFP to RJ45, Singlemode/Multimode Fiber Optic to Copper Gigabit Ethernet, Mini/Compact Size, IP-30/ -40 to +75C, 1Gbps - Mini Media Converter (IMC1GSFP30W)
- Basic Specifications - Power Over Ethernet (PoE)
- PoE+
- Basic Specifications - Product Description
- StarTech.com PoE+ Industrial Fiber to Ethernet Media Converter 30W, SFP to RJ45, Singlemode/Multimode Fiber Optic to Copper Gigabit Ethernet, Mini/Compact Size, IP-30/ -40 to +75C, 1Gbps - Mini Media Converter (IMC1GSFP30W) - fibre media converter - 1GbE, 10Mb LAN, 100Mb LAN
- Basic Specifications - Product Type
- Media converter
- Basic Specifications - Weight
- 80 g
- Dimensions & Weight - Depth
- 5.9 cm
- Dimensions & Weight - Height
- 4.9 cm
- Dimensions & Weight - Weight
- 80 g
- Dimensions & Weight - Width
- 3.6 cm
- Dimensions & Weight (Shipping) - Shipping Depth
- 10.5 cm
- Dimensions & Weight (Shipping) - Shipping Height
- 6.4 cm
- Dimensions & Weight (Shipping) - Shipping Weight
- 200 g
- Dimensions & Weight (Shipping) - Shipping Width
- 15.5 cm
- Environmental Parameters - Humidity Range Operating
- 5 - 95% (non-condensing)
- Environmental Parameters - Max Operating Temperature
- 75 °C
- Environmental Parameters - Min Operating Temperature
- -40 °C
- Expansion / Connectivity - Interfaces
- 1 x Ethernet 1000Base-T - RJ-45 female - 30 W ¦ 1 x Ethernet 1000Base-SX - SFP female
- General - Colour
- Black
- General - Device Type
- Fibre media converter
- General - Form Factor
- DIN rail mountable
- Manufacturer Warranty - Service & Support
- Limited warranty - 2 years
- Miscellaneous - Compliant Standards
- FCC, RoHS, WEEE, IP30, EN 60068-2-27, EN 60068-2-32, EN 60068-2-6, EN 60950-1, IEC 61000-4-2, IEC 61000-4-4, IEC 61000-4-5, IEEE 802.3at, MSA, IEEE 802.3af

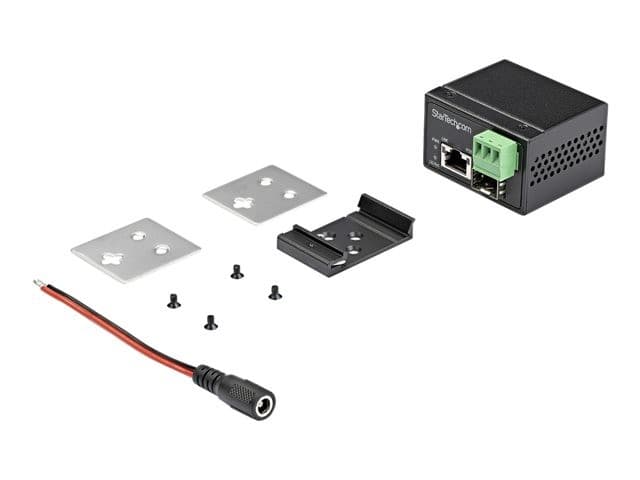

- Miscellaneous - Included Accessories
- Power terminal block
- Miscellaneous - Mounting Kit
- Included
- Miscellaneous - MTBF
- 561556 hours
- Networking - Cabling Type
- 1000Base-SX, 1000Base-T
- Networking - Compliant Standards
- IEEE 802.3x, IEEE 802.3z, IEEE 802.3, IEEE 802.3u
- Networking - Connectivity Technology
- Wired
- Networking - Data Link Protocol
- 1GbE, 10Mb LAN, 100Mb LAN
- Networking - Data Transfer Rate
- 1 Gbps
- Networking - Features
- 2KV Surge protection, flow control, auto-uplink (auto MDI/MDI-X), 16 KB Jumbo Frame, 512KB packet buffer, full duplex mode
- Networking - Max Transfer Distance
- 10 km
- Networking - Status Indicators
- Port status, PoE, link, active
- Power - Power Device
- External power adapter
- Power - Power Over Ethernet (PoE)
- PoE+
