- Aerial - Aerial
- External
- Aerial - Antenna Qty
- 4
- Basic Specifications - Capacity
- VPN tunnels: 10
- Basic Specifications - Compliant Standards
- Wi-Fi CERTIFIED 6, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.11k, IEEE 802.11v, UPnP
- Basic Specifications - Data Link Protocol
- Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6)
- Basic Specifications - Device Type
- Wireless router - DSL modem - 4-port switch (integrated)
- Basic Specifications - Digital Signaling Protocol
- VDSL2, VDSL, SIP, ADSL, ADSL2, ADSL2+
- Basic Specifications - Dimensions (WxDxH)
- 26.02 cm x 13.5 cm x 4.16 cm
- Basic Specifications - EAN
- 4895252503838
- Basic Specifications - Enclosure Type
- Desktop
- Basic Specifications - Features
- RNC technology, 2x2 MIMO technology, VoIP support, EasyMesh, 3G/4G USB Dongle Support, parental control, Guest Network, QoS, wireless radio enable/disable, WMM support, Wireless Scheduler, IPTV support, NAT support, port mapping, DoS, SYN Flooding, IPMB, DHCP client, DHCP server, Address Reservation, port forwarding, port triggering, DMZ support, Samba support, FTP server, Airtime Fairness, MBSSID, DynDNS
- Basic Specifications - Frequency Band
- 2.4 GHz / 5 GHz
- Basic Specifications - Generation
- 3G, 4G
- Basic Specifications - Manufacturer Warranty
- 3-year warranty
- Basic Specifications - Manufacturer's Part Number
- ARCHER VX1800V
- Basic Specifications - Model
- TP-Link Archer VX1800v V1
- Basic Specifications - Network / Transport Protocol
- DNS, DDNS, DHCP, PPTP, IPSec, FTP, PPPoE, L2TP
- Basic Specifications - Performance
- Maximum data rate (2.4 GHz): 574 Mbps ¦ Maximum data rate (5 GHz): 1201 Mbps
- Basic Specifications - Product Description
- TP-Link Archer VX1800v V1 - wireless router - DSL modem - Wi-Fi 6 - 3G, 4G - desktop
- Basic Specifications - Remote Management Protocol
- DNS, DHCP
- Basic Specifications - Routing Protocol
- Static IP routing, RIP-1, RIP-2, IGMP, IGMPv2, IGMPv3
- Basic Specifications - VoIP Protocols
- SIP, RTP
- Basic Specifications - WAN Ports Qty
- 1
- Basic Specifications - Weight
- 970 g
- Communications - Digital Signaling Protocol
- VDSL2, VDSL, SIP, ADSL, ADSL2, ADSL2+
- Communications - Generation
- 3G, 4G
- Communications - Max Transfer Rate
- 350 Mbps
- Communications - Protocols & Specifications
- ITU G.992.1 (G.DMT), ITU G.992.2 (G.Lite), ITU G.992.3 (G.DMT.bis), ITU G.992.4 (G.lite.bis), ITU G.992.5, ITU G.992.5 Annex A, ITU G.992.5 Annex L, ITU G.992.5 Annex M, ITU G.993.2, ITU G.993.5, ITU G.994.1 (G.hs), ITU G.998.4
- Communications - Type
- DSL modem
- Dimensions & Weight - Depth
- 13.5 cm
- Dimensions & Weight - Height
- 4.16 cm
- Dimensions & Weight - Weight
- 970 g
- Dimensions & Weight - Width
- 26.02 cm
- Environmental Parameters - Humidity Range Operating
- 10 - 90% (non-condensing)
- Environmental Parameters - Max Operating Temperature
- 40 °C
- Environmental Parameters - Min Operating Temperature
- 0 °C

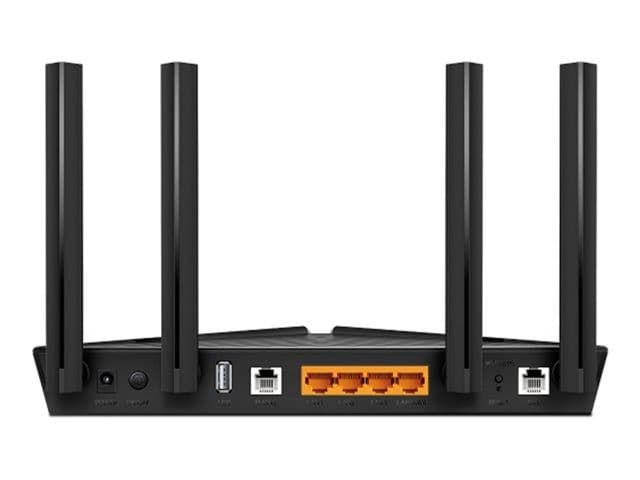

- Expansion / Connectivity - Interfaces
- WAN / LAN: 1 x 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ LAN: 3 x 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ Phone line: 1 x DSL - RJ-11 ¦ Phone line: 1 x FXS - RJ-11 ¦ USB 2.0: 1 x
- General - Capacity
- VPN tunnels: 10
- General - Compliant Standards
- Wi-Fi CERTIFIED 6, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.11k, IEEE 802.11v, UPnP, RoHS
- General - Connectivity Technology
- Wired, wireless
- General - Data Link Protocol
- Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6)
- General - Device Type
- Wireless router - 4-port switch (integrated)
- General - Enclosure Type
- Desktop
- General - Encryption Algorithm
- WPA2-Enterprise, WPA2-PSK, WPA3-Personal, WPA-Enterprise, WPA-PSK
- General - Features
- RNC technology, 2x2 MIMO technology, VoIP support, EasyMesh, 3G/4G USB Dongle Support, parental control, Guest Network, QoS, wireless radio enable/disable, WMM support, Wireless Scheduler, IPTV support, NAT support, port mapping, DoS, SYN Flooding, IPMB, DHCP client, DHCP server, Address Reservation, port forwarding, port triggering, DMZ support, Samba support, FTP server, Airtime Fairness, MBSSID, DynDNS
- General - Frequency Band
- 2.4 GHz / 5 GHz
- General - Network / Transport Protocol
- DNS, DDNS, DHCP, PPTP, IPSec, FTP, PPPoE, L2TP
- General - Performance
- Maximum data rate (2.4 GHz): 574 Mbps ¦ Maximum data rate (5 GHz): 1201 Mbps
- General - Remote Management Protocol
- DNS, DHCP
- General - Routing Protocol
- Static IP routing, RIP-1, RIP-2, IGMP, IGMPv2, IGMPv3
- General - Status Indicators
- Power, DSL, Internet, wireless, LAN, phone
- General - Wi-Fi Rating
- AX1800
- IP Telephony - IP Telephony Features
- Call forwarding, call transfer, Call Hold/Retrieve, call blocking, speed dial, emergency number
- IP Telephony - Voice Codecs
- G.711a, G.711u, G.722, G.729ab, G.726
- IP Telephony - VoIP Protocols
- SIP, RTP
- Line Properties - Framing Format
- ANSI T1.413i2
- Line Properties - Line Coding Format
- 1024 QAM, OFDMA
- Manufacturer Warranty - Service & Support
- Limited warranty - 3 years
- Miscellaneous - Cables Included
- 1 x network cable ¦ 1 x phone cable
- Miscellaneous - Included Accessories
- DSL splitter
- Power - Power Device
- External power adapter
- Software / System Requirements - OS Provided
- No operating system
