- Basic Specifications - Capacity
- IP interfaces: 16 ¦ IPv4 routes (static): 32 ¦ IPv6 routes (static): 32 ¦ Priority queues: 8 ¦ Multicast groups: 511 ¦ Maximum aggregation groups: 8 ¦ Ports per aggregation group: 8 ¦ Layer 2 multicast filtering profiles: 256 ¦ Layer 2 multicast filtering entries per profile: 16 ¦ VLAN groups: 4000 ¦ MAC VLAN address entries: 12 ¦ ACL entries: 230 ¦ Binding entries: 512 ¦ IPv4 source guard entries: 253 ¦ IPv6 source guard entries: 183 ¦ Port security entries: 64
- Basic Specifications - Compliant Standards
- IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3af, IEEE 802.3at, IEEE 802.3ad (LACP), IEEE 802.1D, IEEE 802.1w, IEEE 802.1s, IEEE 802.3x, IEEE 802.1ab (LLDP), IEEE 802.1Q, IEEE 802.1p, IEEE 802.1x, IEEE 802.3az
- Basic Specifications - Device Type
- Switch - 28 ports - L2+ - smart
- Basic Specifications - Dimensions (WxDxH)
- 44 cm x 22 cm x 4.4 cm
- Basic Specifications - EAN
- 6935364030667
- Basic Specifications - Enclosure Type
- Rack-mountable
- Basic Specifications - Features
- Store and forward, 2 fans, device discovery, schedule reboot, DHCP server, DHCP relay, ARP support, Static Link Aggregation, BPDU protection, loopback detection, flow control, port mirroring, DLDP support, LLDP-MED, IGMP snooping, fast leave, MVR, Multicast filtering function, MLD snooping, VLAN support, VLAN Tagging, GVRP, Voice VLAN, CoS, DSCP based CoS, SP, WRR, bandwidth control, Broadcast Storm Control, Multicast Storm Control, Unknown Storm Control, Unicast Storm Control, ACL support, TCP support, rate limit, AAA, MAB, Guest VLAN, IPMB, DHCP snooping, DHCPv6 snooping, ARP inspection, ND detection, ND snooping, IP source guard, DoS attack prevention, port isolation, path MTU discovery, SNMP trap, Cable Diagnostics Function, EEE, system log, 802.1x authentication, cloud managed, QoS, ZTP, LED on/off button, reset button
- Basic Specifications - Jumbo Frame Support
- 9KB
- Basic Specifications - MAC Address Table Size
- 8K entries
- Basic Specifications - Manufacturer's Part Number
- SG2428P
- Basic Specifications - Model

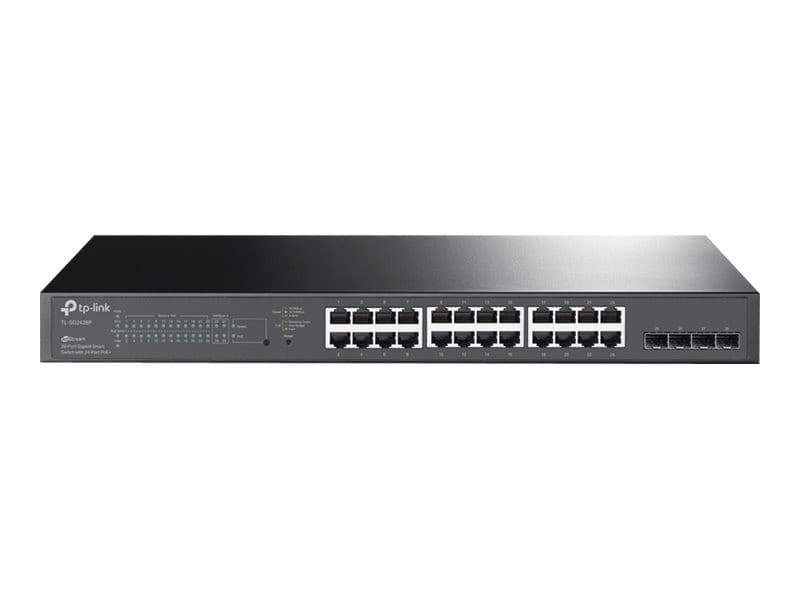

- TP-Link JetStream TL-SG2428P V5
- Basic Specifications - Performance
- Switching capacity: 56 Gbps ¦ Forwarding performance: 41.66 Mpps ¦ Packet buffer size: 4.1 Mbit
- Basic Specifications - PoE Budget
- 250 W
- Basic Specifications - Ports
- 24 x 10/100/1000 (PoE+) + 4 x Gigabit SFP
- Basic Specifications - Power
- AC 100-240 V (50/60 Hz)
- Basic Specifications - Power Over Ethernet (PoE)
- PoE+
- Basic Specifications - Product Description
- TP-Link JetStream TL-SG2428P V5 - switch - 28 ports - smart - rack-mountable
- Basic Specifications - Remote Management Protocol
- IPv4, IPv6, DHCP, UDP, HTTP, HTTPS, CLI, SSH, SSH-2, ICMP, Telnet, TFTP, SNMP, SNMP 2c, SNMP 3, RMON 1, RMON 2, RMON 3, RMON 9, BOOTP, MIB
- Basic Specifications - Routing Protocol
- STP, RSTP, MSTP, static IP routing, IGMP, IGMPv2, IGMPv3, MLD, MLDv2
- Basic Specifications - Subtype
- Gigabit Ethernet
- Basic Specifications - System Requirements
- Microsoft Windows 98SE/2000/NT/XP/Vista/7/8/8.1/10/11, UNIX, Apple MacOS, Novell NetWare, Linux
- Dimensions & Weight - Depth
- 22 cm
- Dimensions & Weight - Height
- 4.4 cm
- Dimensions & Weight - Width
- 44 cm
- Environmental Parameters - Humidity Range Operating
- 10 - 90% RH (non-condensing)
- Environmental Parameters - Humidity Range Storage
- 5 - 90% RH (non-condensing)
- Environmental Parameters - Max Operating Temperature
- 50 °C
- Environmental Parameters - Max Storage Temperature
- 70 °C
- Environmental Parameters - Min Operating Temperature
- 0 °C
- Environmental Parameters - Min Storage Temperature
- -40 °C
- Expansion / Connectivity - Interfaces
- 24 x 1000Base-T RJ-45 PoE+ - 30 W ¦ 4 x 1000Base-X SFP
- General - Authentication Method
- PAP, EAP-MD5, RADIUS, Secure Shell (SSH), Secure Shell v.2 (SSH2)
- General - Capacity
- IP interfaces: 16 ¦ IPv4 routes (static): 32 ¦ IPv6 routes (static): 32 ¦ Priority queues: 8 ¦ Multicast groups: 511 ¦ Maximum aggregation groups: 8 ¦ Ports per aggregation group: 8 ¦ Layer 2 multicast filtering profiles: 256 ¦ Layer 2 multicast filtering entries per profile: 16 ¦ VLAN groups: 4000 ¦ MAC VLAN address entries: 12 ¦ ACL entries: 230 ¦ Binding entries: 512 ¦ IPv4 source guard entries: 253 ¦ IPv6 source guard entries: 183 ¦ Port security entries: 64
- General - Compliant Standards
- IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3af, IEEE 802.3at, IEEE 802.3ad (LACP), IEEE 802.1D, IEEE 802.1w, IEEE 802.1s, IEEE 802.3x, IEEE 802.1ab (LLDP), IEEE 802.1Q, IEEE 802.1p, IEEE 802.1x, IEEE 802.3az
- General - Device Type
- Switch - 28 ports - L2+ - smart
- General - Enclosure Type
- Rack-mountable
- General - Encryption Algorithm
- SSL 3.0, TLS 1.2
- General - Features
- Store and forward, 2 fans, device discovery, schedule reboot, DHCP server, DHCP relay, ARP support, Static Link Aggregation, BPDU protection, loopback detection, flow control, port mirroring, DLDP support, LLDP-MED, IGMP snooping, fast leave, MVR, Multicast filtering function, MLD snooping, VLAN support, VLAN Tagging, GVRP, Voice VLAN, CoS, DSCP based CoS, SP, WRR, bandwidth control, Broadcast Storm Control, Multicast Storm Control, Unknown Storm Control, Unicast Storm Control, ACL support, TCP support, rate limit, AAA, MAB, Guest VLAN, IPMB, DHCP snooping, DHCPv6 snooping, ARP inspection, ND detection, ND snooping, IP source guard, DoS attack prevention, port isolation, path MTU discovery, SNMP trap, Cable Diagnostics Function, EEE, system log, 802.1x authentication, cloud managed, QoS, ZTP, LED on/off button, reset button
- General - Flash Memory
- 32 MB
- General - Jumbo Frame Support
- 9KB
- General - MAC Address Table Size
- 8K entries
- General - Performance
- Switching capacity: 56 Gbps ¦ Forwarding performance: 41.66 Mpps ¦ Packet buffer size: 4.1 Mbit
- General - PoE Budget
- 250 W
- General - Ports
- 24 x 10/100/1000 (PoE+) + 4 x Gigabit SFP
- General - Power Over Ethernet (PoE)
- PoE+
- General - RAM
- 256 MB
- General - Remote Management Protocol
- IPv4, IPv6, DHCP, UDP, HTTP, HTTPS, CLI, SSH, SSH-2, ICMP, Telnet, TFTP, SNMP, SNMP 2c, SNMP 3, RMON 1, RMON 2, RMON 3, RMON 9, BOOTP, MIB
- General - Routing Protocol
- STP, RSTP, MSTP, static IP routing, IGMP, IGMPv2, IGMPv3, MLD, MLDv2
- General - Status Indicators
- Power, system, PoE max, fan, link/activity
- General - Subtype
- Gigabit Ethernet
- Miscellaneous - Compliant Standards
- FCC, RoHS
- Miscellaneous - Included Accessories
- Rubber feet
- Miscellaneous - Rack Mounting Kit
- Included
- Power - Power Consumption Stand by
- 15.6 Watt
- Power - Power Device
- Internal power supply
- Power - Voltage Required
- AC 100-240 V (50/60 Hz)
- Software / System Requirements - OS Required
- Microsoft Windows 98SE/2000/NT/XP/Vista/7/8/8.1/10/11, UNIX, Apple MacOS, Novell NetWare, Linux
