- Aerial - Antenna
- External detachable
- Aerial - Antenna Qty
- 5
- Basic Specifications - Analogue Ports Qty
- 2
- Basic Specifications - Capacity
- Concurrent sessions: 150000 ¦ New sessions per second: 3800 ¦ SSIDs per device: 16 ¦ SSIDs per radio: 8 ¦ IPSec VPN tunnels: 100 ¦ PPTP VPN clients: 10 ¦ PPTP VPN tunnels: 50 ¦ L2TP VPN clients: 10 ¦ L2TP VPN tunnels: 50 ¦ SSL VPN tunnels: 50 ¦ OpenVPN clients: 5 ¦ OpenVPN tunnels: 55 ¦ SIP registrars: 12
- Basic Specifications - Data Link Protocol
- Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6)
- Basic Specifications - Device Type
- Gateway
- Basic Specifications - Digital Ports Qty
- 1
- Basic Specifications - Digital Signaling Protocol
- VDSL2, ADSL2+, ADSL2, ADSL, H.323, SIP
- Basic Specifications - Dimensions (WxDxH)
- 22.6 cm x 13.12 cm x 3.5 cm
- Basic Specifications - EAN
- 1210002608404
- Basic Specifications - Flash Memory
- 256 MB
- Basic Specifications - Form Factor
- Desktop / wall mountable
- Basic Specifications - Frequency Band
- 2.4 GHz, 5 GHz
- Basic Specifications - Generation
- 4G, 3G
- Basic Specifications - Included Accessories
- Silicone feet
- Basic Specifications - Manufacturer's Part Number
- DR3650V-4G
- Basic Specifications - Mobile Band
- 4G LTE-FDD B1/B3/B5/B7/B8/B20/B28/B32 4G LTE-TDD B38/B40/B41 3G DC-HSDPA/HSPA+/HSDPA/HSUPA/WCDMA B1/B3/B5/B8
- Basic Specifications - Mobile Broadband Access
- Yes
- Basic Specifications - Mobile Communication Protocol
- FDD LTE, TDD LTE, DC-HSDPA, HSDPA, HSPA+, HSUPA, WCDMA
- Basic Specifications - Model
- TP-Link Omada DR3650v-4G V1
- Basic Specifications - OS Required
- Microsoft Windows 98SE/2000/NT/XP/Vista/7/8/8.1/10/11, Apple MacOS, Novell NetWare, UNIX, Linux
- Basic Specifications - Performance
- Maximum data rate (2.4 GHz): 574 Mbps ¦ Maximum data rate (5 GHz): 2402 Mbps ¦ Download speed (VDSL2 Profile 35b): 350 Mbps ¦ Channel bandwidth: 160 MHz ¦ NAT upload throughput (Static IP): 937.2 Mbps ¦ NAT download throughput (Static IP): 936.1 Mbps ¦ NAT upload throughput (DHCP): 945.8 Mbps ¦ NAT download throughput (DHCP): 940.6Mbps ¦ NAT upload throughput (PPPoE): 942.9 Mbps ¦ NAT download throughput (PPPoE): 942.9 Mbps ¦ NAT upload throughput (L2TP): 837.4 Mbps ¦ NAT download throughput (L2TP): 881.5 Mbps ¦ NAT upload throughput (PPTP): 803.0 Mbps ¦ NAT download throughput (PPTP): 910.5 Mbps ¦ Upload forwarding rate (66-byte packet size): 1453489 pps ¦ Download forwarding rate (66-byte packet size): 1453488 pps ¦ Upload forwarding rate (1518-byte packet size): 81274 pps ¦ Download forwarding rate (1518-byte packet size): 91275 pps ¦ VPN throughput (256-bit AES+SHA1 IPSec): 569.9 Mbps ¦ VPN throughput (256-bit AES+SHA256 IPSec): 543.3 Mbps ¦ VPN throughput (256-bit AES+SHA384 IPSec): 549.0 Mbps ¦ VPN throughput (256-bit AES+SHA512 IPSec): 539.3 Mbps ¦ GRE unencrypted throughput: 541.8 Mbps ¦ GRE encrypted throughput: 289.2 Mbps ¦ VPN WireGuard throughput: 311.6 Mbps ¦ VPN throughput (SSL): 126.7 Mbps ¦ OpenVPN throughput: 129.3 Mbps ¦ VPN unencrypted throughput (L2TP): 909.4 Mbps ¦ VPN encrypted throughput (L2TP): 494.9 Mbps ¦ VPN unencrypted throughput (PPTP): 897.5 Mbps ¦ VPN encrypted throughput (PPTP): 190.8 Mbps
- Basic Specifications - Product Description

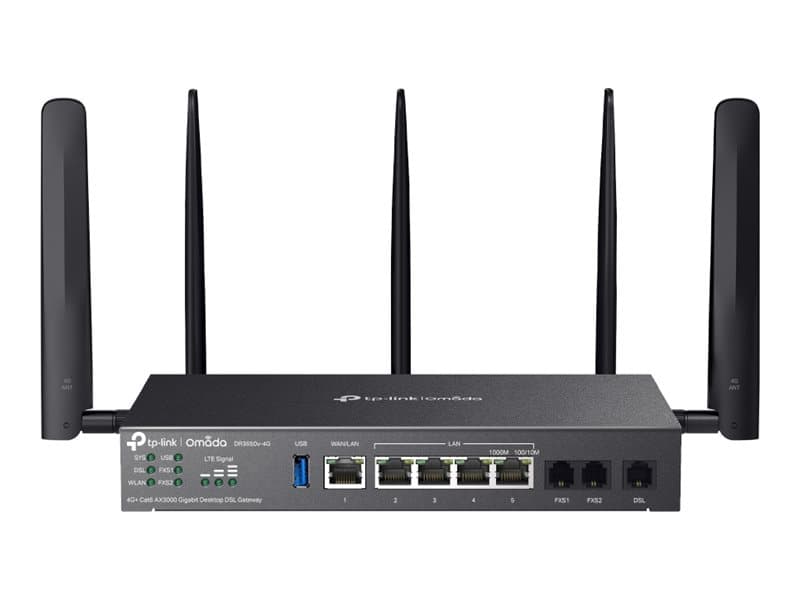

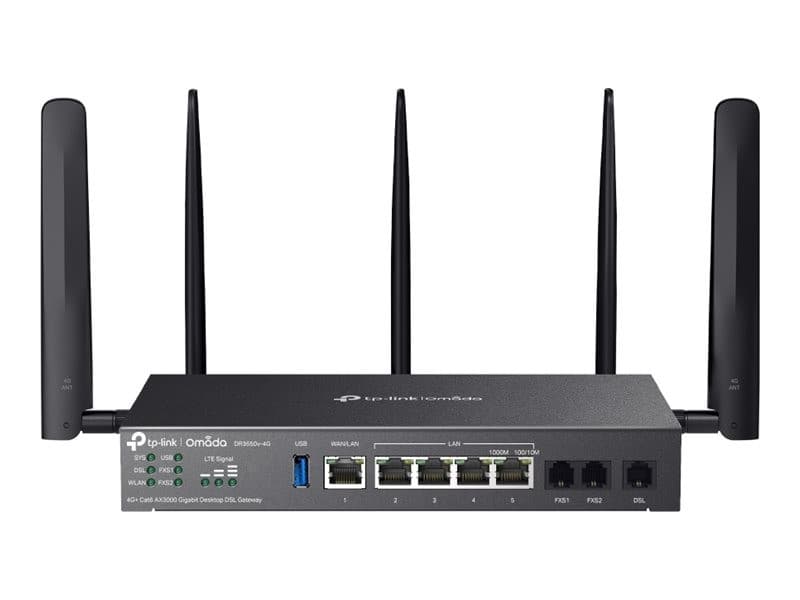

- TP-Link Omada DR3650v-4G V1 - gateway - Wi-Fi 6 - cloud-managed
- Basic Specifications - Protocols & Specifications
- ITU G.993.2, ITU G.997.1, ITU G.992.5, ITU G.992.3, ITU G.992.1 (G.DMT), ITU G.992.2 (G.Lite)
- Basic Specifications - RAM
- 512 MB
- Basic Specifications - VoIP Protocols
- RTCP, RTP, SIP, H.323
- Communications - Analogue Ports Qty
- 2
- Communications - Digital Ports Qty
- 1
- Communications - Digital Signaling Protocol
- VDSL2, ADSL2+, ADSL2, ADSL, H.323, SIP
- Communications - Generation
- 4G, 3G
- Communications - Mobile Band
- 4G LTE-FDD B1/B3/B5/B7/B8/B20/B28/B32 4G LTE-TDD B38/B40/B41 3G DC-HSDPA/HSPA+/HSDPA/HSUPA/WCDMA B1/B3/B5/B8
- Communications - Mobile Broadband Access
- Yes
- Communications - Mobile Communication Protocol
- FDD LTE, TDD LTE, DC-HSDPA, HSDPA, HSPA+, HSUPA, WCDMA
- Communications - Protocols & Specifications
- ITU G.993.2, ITU G.997.1, ITU G.992.5, ITU G.992.3, ITU G.992.1 (G.DMT), ITU G.992.2 (G.Lite)
- Environmental Parameters - Humidity Range Operating
- 10 - 90% (non-condensing)
- Environmental Parameters - Max Operating Temperature
- 40 °C
- Environmental Parameters - Min Operating Temperature
- 0 °C
- Expansion / Connectivity - Expansion Slots
- 2 (total) / 2 (free) x SIM card
- Expansion / Connectivity - Interfaces
- 1 x 1000Base-T - RJ-45 (WAN / LAN) ¦ 4 x 1000Base-T - RJ-45 ¦ 2 x FXS - RJ-11 ¦ 1 x DSL - RJ-11 ¦ 1 x USB 3.0 - Type A
- General - Depth
- 13.12 cm
- General - Device Type
- Gateway
- General - Height
- 3.5 cm
- General - Width
- 22.6 cm
- IP Telephony - IP Telephony Features
- Call blocking, call forwarding, Call Hold/Retrieve, call waiting, Do-not-disturb (DND) support, emergency number, logs, phonebook, voicemail
- IP Telephony - Voice Codecs
- G.711a, G.711u, G.726, G.729a, G.729b, G.722
- IP Telephony - VoIP Protocols
- RTCP, RTP, SIP, H.323
- Miscellaneous - Cables Included
- 1 x phone cable ¦ 1 x network cable
- Miscellaneous - Compliant Standards
- RoHS
- Miscellaneous - Included Accessories
- Silicone feet
- Networking - Authentication Method
- RADIUS, LDAP
- Networking - Capacity
- Concurrent sessions: 150000 ¦ New sessions per second: 3800 ¦ SSIDs per device: 16 ¦ SSIDs per radio: 8 ¦ IPSec VPN tunnels: 100 ¦ PPTP VPN clients: 10 ¦ PPTP VPN tunnels: 50 ¦ L2TP VPN clients: 10 ¦ L2TP VPN tunnels: 50 ¦ SSL VPN tunnels: 50 ¦ OpenVPN clients: 5 ¦ OpenVPN tunnels: 55 ¦ SIP registrars: 12
- Networking - Cloud-Managed
- Yes
- Networking - Compliant Standards
- IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1Q, UPnP
- Networking - Connectivity Technology
- Wireless
- Networking - Data Link Protocol
- Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6)
- Networking - Encryption Algorithm
- SSL, WPA-Personal, WPA-Enterprise, WPA2-Personal, WPA2-Enterprise, WPA3-Personal, WPA3-Enterprise, DES, 3DES, 128-bit AES, 192-bit AES, 256-bit AES, IKEv1, IKEv2, MD5, SHA-1, 384-bit SHA-2, 512-bit SHA-2
- Networking - Features
- VPN support, load balancing, Omada Mesh technology, 3G/4G USB Dongle Support, Software Defined Networking (SDN), reset button, security lock slot (cable lock sold separately), Deep Packet Inspection (DPI), Zero-touch provisioning (ZTP), NAT support, 6KV Surge protection (DSL port), 4KV Surge protection, automatic device discovery, network monitoring, schedule reboot, Captive Portal, dynamic IP mode, DHCP server, MAC clone, IPTV support, bridge mode, Access Control List (ACL) support, mDNS, Quality of Service (QoS), bridged/routed VLAN, VLAN support, wireless radio enable/disable, enable/disable SSID broadcast, Guest Network, Auto Channel Select (ACS), seamless roaming, Mesh networking, beamforming technology, MU-MIMO technology, rate limit, Airtime Fairness, band steering, MAC address authentication, Wireless Scheduler, port triggering, failover protection, virtual server support, DMZ support, ALG support, bandwidth control, IPsec failover, IPSec NAT-Traversal (NAT-T), Dead Peer Detection (DPD), Perfect Forward Secrecy (PFS), URL filtering, DNS proxy, ARP inspection, IP-MAC binding, Generic Attribute Registration Protocol (GARP), No-IP DDNS, port mirroring, Syslog support, manageable, Transmit Power Control (TPC), Address Reservation
- Networking - Form Factor
- Desktop / wall mountable
- Networking - Frequency Band
- 2.4 GHz, 5 GHz
- Networking - Line Coding Format
- OFDMA, 1024 QAM
- Networking - Network / Transport Protocol
- IPSec, PPTP, L2TP, OpenVPN, WireGuard, PPPoE, HTTP, HTTPs, DNS, DHCPv6, IPv6, FTP, UDP, DDNS, NTP, TCP/IP, DHCP, ARP
- Networking - Performance
- Maximum data rate (2.4 GHz): 574 Mbps ¦ Maximum data rate (5 GHz): 2402 Mbps ¦ Download speed (VDSL2 Profile 35b): 350 Mbps ¦ Channel bandwidth: 160 MHz ¦ NAT upload throughput (Static IP): 937.2 Mbps ¦ NAT download throughput (Static IP): 936.1 Mbps ¦ NAT upload throughput (DHCP): 945.8 Mbps ¦ NAT download throughput (DHCP): 940.6Mbps ¦ NAT upload throughput (PPPoE): 942.9 Mbps ¦ NAT download throughput (PPPoE): 942.9 Mbps ¦ NAT upload throughput (L2TP): 837.4 Mbps ¦ NAT download throughput (L2TP): 881.5 Mbps ¦ NAT upload throughput (PPTP): 803.0 Mbps ¦ NAT download throughput (PPTP): 910.5 Mbps ¦ Upload forwarding rate (66-byte packet size): 1453489 pps ¦ Download forwarding rate (66-byte packet size): 1453488 pps ¦ Upload forwarding rate (1518-byte packet size): 81274 pps ¦ Download forwarding rate (1518-byte packet size): 91275 pps ¦ VPN throughput (256-bit AES+SHA1 IPSec): 569.9 Mbps ¦ VPN throughput (256-bit AES+SHA256 IPSec): 543.3 Mbps ¦ VPN throughput (256-bit AES+SHA384 IPSec): 549.0 Mbps ¦ VPN throughput (256-bit AES+SHA512 IPSec): 539.3 Mbps ¦ GRE unencrypted throughput: 541.8 Mbps ¦ GRE encrypted throughput: 289.2 Mbps ¦ VPN WireGuard throughput: 311.6 Mbps ¦ VPN throughput (SSL): 126.7 Mbps ¦ OpenVPN throughput: 129.3 Mbps ¦ VPN unencrypted throughput (L2TP): 909.4 Mbps ¦ VPN encrypted throughput (L2TP): 494.9 Mbps ¦ VPN unencrypted throughput (PPTP): 897.5 Mbps ¦ VPN encrypted throughput (PPTP): 190.8 Mbps
- Networking - Remote Management Protocol
- TCP/IP, DHCP, ICMP, HTTP, HTTPS, DNS, SLAAC, RADIUS, UDP, DDNS, SNMP 1, SNMP 2c, SNMP 3, NTP, CLI, Syslog, TR-069, SNMP
- Networking - Routing Protocol
- Static IP routing, GRE, PPPoE, IGMPv2, IGMPv3, RIP, OSPF
- Networking - Spread Spectrum Method
- OFDMA
- Networking - Status Indicators
- System, DSL, WLAN, USB, FXS line, link/activity, LTE
- Networking - Wi-Fi Rating
- AX3000
- Power - Power Device
- External power adapter
- Processor / Memory / Storage - Flash Memory
- 256 MB
- Processor / Memory / Storage - RAM
- 512 MB DDR4 SDRAM
- Software / System Requirements - OS Required
- Microsoft Windows 98SE/2000/NT/XP/Vista/7/8/8.1/10/11, Apple MacOS, Novell NetWare, UNIX, Linux
