- Basic Specifications - Compliant Standards
- IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3x, IEEE 801.1p, IEEE 802.3at
- Basic Specifications - Device Type
- Switch - 8 ports - unmanaged
- Basic Specifications - Dimensions (WxDxH)
- 29.4 cm x 18 cm x 4.4 cm
- Basic Specifications - EAN
- 6935364086770
- Basic Specifications - Enclosure Type
- Rack-mountable
- Basic Specifications - Features
- Flow control, auto-negotiation, auto-uplink (auto MDI/MDI-X), IGMP snooping, store and forward, half duplex mode, full duplex mode, QoS, Jumbo Frames support, DSCP support, 1.5MB packet buffer, Back Pressure Support, 1 fan
- Basic Specifications - Jumbo Frame Support
- 16KB
- Basic Specifications - MAC Address Table Size
- 4K entries
- Basic Specifications - Manufacturer Warranty
- Limited lifetime warranty
- Basic Specifications - Manufacturer's Part Number
- TL-SG1008MP
- Basic Specifications - Model

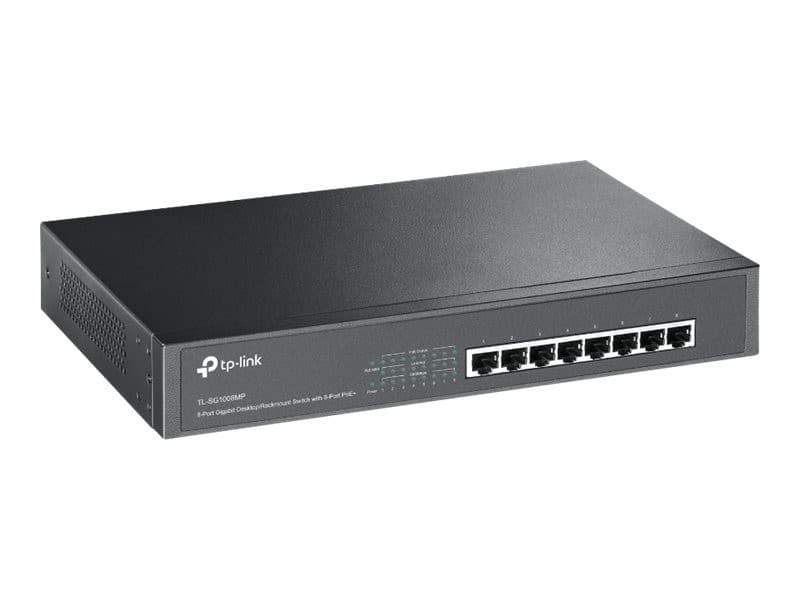

- TP-Link TL-SG1008MP
- Basic Specifications - Performance
- Bandwidth: 16 Gbps
- Basic Specifications - PoE Budget
- 126 W
- Basic Specifications - Ports
- 8 x 10/100/1000 (PoE+)
- Basic Specifications - Power
- AC 120/230 V (50/60 Hz)
- Basic Specifications - Power Over Ethernet (PoE)
- PoE+
- Basic Specifications - Product Description
- TP-Link TL-SG1008MP - switch - 8 ports - unmanaged - rack-mountable
- Basic Specifications - Subtype
- Gigabit Ethernet
- Dimensions & Weight - Depth
- 18 cm
- Dimensions & Weight - Height
- 4.4 cm
- Dimensions & Weight - Width
- 29.4 cm
- Environmental Parameters - Humidity Range Operating
- 10 - 90% (non-condensing)
- Environmental Parameters - Humidity Range Storage
- 5 - 90% (non-condensing)
- Environmental Parameters - Max Operating Temperature
- 40 °C
- Environmental Parameters - Max Storage Temperature
- 70 °C
- Environmental Parameters - Min Operating Temperature
- 0 °C
- Environmental Parameters - Min Storage Temperature
- -40 °C
- Expansion / Connectivity - Interfaces
- 8 x 1000Base-T RJ-45 PoE+ - 30 W
- General - Built-in Devices
- Led panel
- General - Compliant Standards
- IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3x, IEEE 801.1p, IEEE 802.3at
- General - Device Type
- Switch - 8 ports - unmanaged
- General - Enclosure Type
- Desktop, rack-mountable
- General - Features
- Flow control, auto-negotiation, auto-uplink (auto MDI/MDI-X), IGMP snooping, store and forward, half duplex mode, full duplex mode, QoS, Jumbo Frames support, DSCP support, 1.5MB packet buffer, Back Pressure Support, 1 fan
- General - Jumbo Frame Support
- 16KB
- General - MAC Address Table Size
- 4K entries
- General - Performance
- Bandwidth: 16 Gbps
- General - PoE Budget
- 126 W
- General - Ports
- 8 x 10/100/1000 (PoE+)
- General - Power Over Ethernet (PoE)
- PoE+
- General - Status Indicators
- Power, 1000M device connected, PoE, link/activity
- General - Subtype
- Gigabit Ethernet
- Manufacturer Warranty - Service & Support
- Limited warranty - lifetime
- Miscellaneous - Compliant Standards
- Plug and Play, FCC, RoHS
- Miscellaneous - Included Accessories
- Rubber feet
- Miscellaneous - Rack Mounting Kit
- Included
- Power - Power Consumption Operational
- 140.67 Watt
- Power - Power Device
- Internal power supply
- Power - Voltage Required
- AC 120/230 V (50/60 Hz)
