- Basic Specifications - Batteries Qty
- 1
- Basic Specifications - Battery
- Lead Acid Lead Acid
- Basic Specifications - Bundled with
- APC SmartConnect
- Basic Specifications - Colour
- Black
- Basic Specifications - Device Type
- UPS - external
- Basic Specifications - Dimensions (WxDxH)
- 19.7 cm x 54.4 cm x 43.5 cm
- Basic Specifications - EAN
- 0731304337317
- Basic Specifications - Input Connectors
- 1 x power IEC 60320 C20
- Basic Specifications - Input Voltage
- AC 220/230/240 V
- Basic Specifications - Manufacturer Warranty
- 3-year warranty
- Basic Specifications - Manufacturer's Part Number
- SMT2200IC
- Basic Specifications - Model
- APC Smart-UPS SMT2200IC
- Basic Specifications - Networking
- RS-232, USB

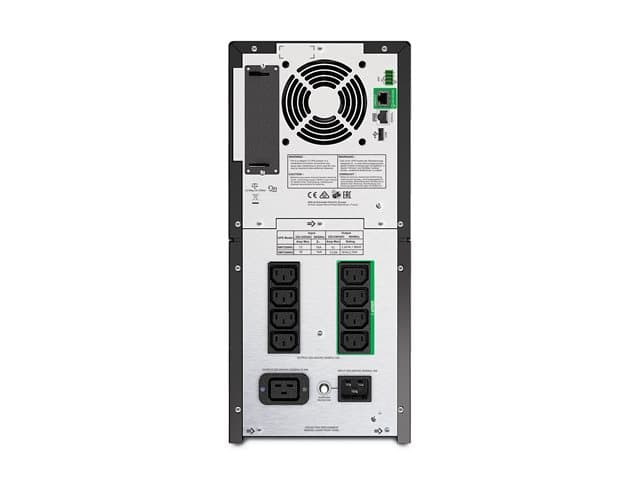

- Basic Specifications - Output connectors
- 8 x power IEC 60320 C13 ¦ 2 x IEC jumper ¦ 1 x power IEC 60320 C19
- Basic Specifications - Output Voltage
- AC 220/230/240 V ± 5%
- Basic Specifications - Power Capacity
- 1980 Watt / 2200 VA
- Basic Specifications - Product Description
- APC Smart-UPS SMT2200IC - UPS - 1980 Watt - 2200 VA - Lead Acid - with APC SmartConnect
- Basic Specifications - Product Type
- UPS
- Basic Specifications - Run Time (Up To)
- 8.7 min at full load
- Basic Specifications - Weight
- 48.8 kg
- Battery - Features
- Leak-proof, maintenance free, sealed
- Battery - Quantity
- 1
- Battery - Recharge Time
- 3 hours
- Battery - Run Time (Up To)
- 8.7 min at full load ¦ 25 min at half load
- Battery - Technology
- Lead Acid Lead Acid
- Battery - Transfer Time
- 6 ms
- Dimensions & Weight - Depth
- 54.4 cm
- Dimensions & Weight - Height
- 43.5 cm
- Dimensions & Weight - Weight
- 48.8 kg
- Dimensions & Weight - Width
- 19.7 cm
- Dimensions & Weight (Shipping) - Shipping Depth
- 76.2 cm
- Dimensions & Weight (Shipping) - Shipping Height
- 69.9 cm
- Dimensions & Weight (Shipping) - Shipping Weight
- 61.9 kg
- Dimensions & Weight (Shipping) - Shipping Width
- 38.1 cm
- Environmental Parameters - Humidity Range Operating
- 0 - 95%
- Environmental Parameters - Max Operating Temperature
- 40 °C
- Environmental Parameters - Min Operating Temperature
- 0 °C
- Environmental Parameters - Sound Emission
- 45 dBA
- Expansion / Connectivity - Expansion Slots
- 1 (total) / 1 (free) x SmartSlot

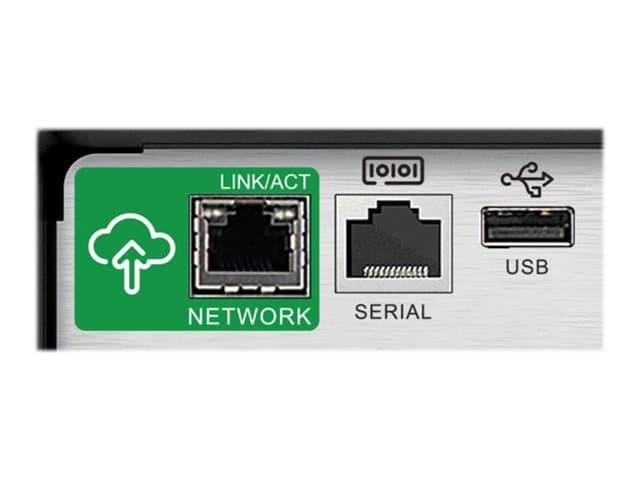

- Expansion / Connectivity - Interfaces
- 1 x management (RS-232) ¦ 1 x USB ¦ 1 x EPO (emergency power off)
- General - Bundled with
- APC SmartConnect
- General - Colour
- Black
- General - Device Type
- UPS - external
- Manufacturer Warranty - Service & Support
- Limited warranty - replace or repair - 3 years ¦ Limited warranty - batteries - 2 years
- Miscellaneous - Cables Included
- Serial cable - external ¦ USB cable - external
- Miscellaneous - Compliant Standards
- CSA, EAC, IEC 62040-1, EN 62040-1, IEC 62040-2, EN 62040-2, RCM, UL 1778, VDE, RoHS
- Miscellaneous - Features
- Cold-start function, energy metre, LCD display, automatic self-test, Automatic Voltage Regulation (AVR), hot-swappable batteries, predicitive failure notification, audible alarm, emergency power off
- Networking - Remote Management Interface
- RS-232, USB
- Power Device - Circuit Protection
- Circuit breaker
- Power Device - Frequency Provided
- 50/60 Hz ± 3Hz
- Power Device - Frequency Required
- 50/60 Hz ± 3Hz
- Power Device - Input Connectors
- 1 x power IEC 60320 C20
- Power Device - Input Voltage
- AC 220/230/240 V
- Power Device - Input Voltage Range
- AC 160 - 286 V
- Power Device - Input Voltage Range (Adjustable)
- AC 151 - 302 V
- Power Device - Output Voltage
- AC 220/230/240 V ± 5% - 50/60 Hz
- Power Device - Output Waveform
- Sinewave
- Power Device - Power Capacity
- 1980 Watt / 2200 VA
- Power Device - Power Output Connectors Details
- 8 x power IEC 60320 C13 ¦ 2 x IEC jumper ¦ 1 x power IEC 60320 C19
- Power Device - Surge Energy Rating
- 365 Joules
- Power Device - Surge Suppression
- Yes
- Power Device - UPS Technology
- Line interactive
- Software / System Requirements - Software Included
- APC PowerChute Business Edition
