- Aerial - Antenna
- Internal
- Basic Specifications - Data Link Protocol
- IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac Wave 2
- Basic Specifications - Device Type
- Radio access point
- Basic Specifications - Dimensions (WxDxH)
- 16.2 cm x 16.2 cm x 4.2 cm
- Basic Specifications - EAN
- 4712909129022
- Basic Specifications - Form Factor
- In-ceiling
- Basic Specifications - Frequency Band
- 2.4 GHz, 5 GHz
- Basic Specifications - Included Accessories
- Ceiling mounting kit, T-Rail mounting kit
- Basic Specifications - Manufacturer Warranty
- 2-year warranty
- Basic Specifications - Manufacturer's Part Number
- VAP912C-K
- Basic Specifications - Model
- Draytek VigorAP 912C
- Basic Specifications - Performance
- Maximum data rate (2.4 GHz): 300 Mbps ¦ Maximum data rate (5 GHz): 866 Mbps
- Basic Specifications - Power
- AC 100 - 240 V
- Basic Specifications - Power Over Ethernet (PoE) Supported
- PoE
- Basic Specifications - Product Description
- Draytek VigorAP 912C - radio access point - Wi-Fi 5
- Basic Specifications - Weight
- 300 g
- Environmental Parameters - Humidity Range Operating
- 10 - 90% (non-condensing)
- Environmental Parameters - Max Operating Temperature
- 45 °C
- Environmental Parameters - Min Operating Temperature
- 0 °C
- Expansion / Connectivity - Interfaces

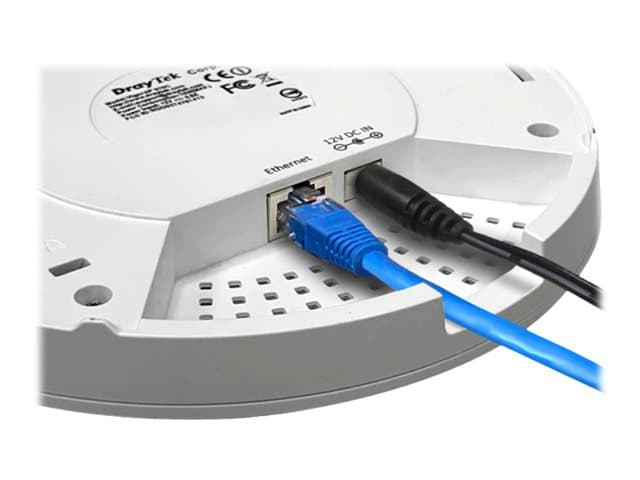

- 1 x 1000Base-T (PoE) - RJ-45
- General - Depth
- 16.2 cm
- General - Device Type
- Radio access point
- General - Height
- 4.2 cm
- General - Weight
- 300 g
- General - Width
- 16.2 cm
- Manufacturer Warranty - Service & Support
- Limited warranty - 2 years
- Miscellaneous - Cables Included
- 1 x network cable
- Miscellaneous - Included Accessories
- Ceiling mounting kit, T-Rail mounting kit
- Networking - Authentication Method
- RADIUS, Radio Service Set ID (SSID)
- Networking - Compliant Standards
- IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.1x, IEEE 802.11n, IEEE 802.11ac Wave 2
- Networking - Connectivity Technology
- Wireless
- Networking - Data Link Protocol
- IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac Wave 2
- Networking - Data Transfer Rate
- 866 Mbps
- Networking - Encryption Algorithm
- TLS, PEAP, WPA2, WPA2-PSK, WEP, WPA3
- Networking - Features
- Power over Ethernet (PoE), repeating mode, Syslog support, MAC address filtering, Wireless Distribution System (WDS) support, firmware upgradable, wall mountable, Mesh networking, Wi-Fi Multimedia (WMM) support, Quality of Service (QoS), RADIUS support, Wi-Fi Protected Setup (WPS), Multiple SSID support, hidden SSID, reset button, 2T2R MIMO technology, DHCP client, tagged VLAN, band steering, Airtime Fairness, Multi-User MIMO & Beamforming technology, AP-Assisted Roaming, Wireless Auto On/Off, Multi-SSID over Mesh, Client Limit per SSID, Trusted DHCP Server IP for WLAN, Device Object/Group Control
- Networking - Form Factor
- In-ceiling
- Networking - Frequency Band
- 2.4 GHz, 5 GHz
- Networking - Performance
- Maximum data rate (2.4 GHz): 300 Mbps ¦ Maximum data rate (5 GHz): 866 Mbps
- Networking - Remote Management Protocol
- SNMP 2, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, CLI, TR-069
- Networking - Wi-Fi Rating
- AC1200
- Power - Power Consumption Operational
- 10 Watt
- Power - Power Device
- External power adapter
- Power - Power Over Ethernet (PoE) Supported
- PoE
- Power - Voltage Required
- AC 100 - 240 V
