- Aerial - Antenna
- Internal
- Aerial - Directivity
- Omni-directional
- Basic Specifications - Capacity
- Maximum number of configured SSIDs: 16 ¦ Number of concurrent clients: 250+
- Basic Specifications - Data Link Protocol
- IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6)
- Basic Specifications - Device Type
- Radio access point
- Basic Specifications - Dimensions (WxDxH)
- 16 cm x 16 cm x 3.36 cm
- Basic Specifications - EAN
- 4897098685242
- Basic Specifications - Form Factor

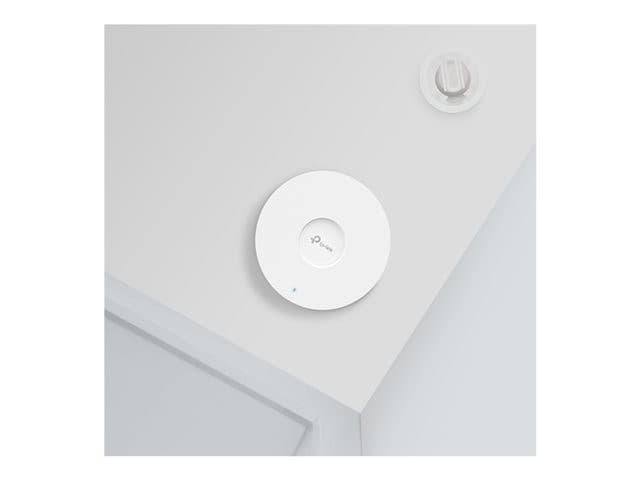

- Wall / ceiling mountable
- Basic Specifications - Frequency Band
- 2.4 GHz, 5 GHz
- Basic Specifications - Included Accessories
- Wall/ceiling mounting kit
- Basic Specifications - Manufacturer's Part Number
- EAP653
- Basic Specifications - Model

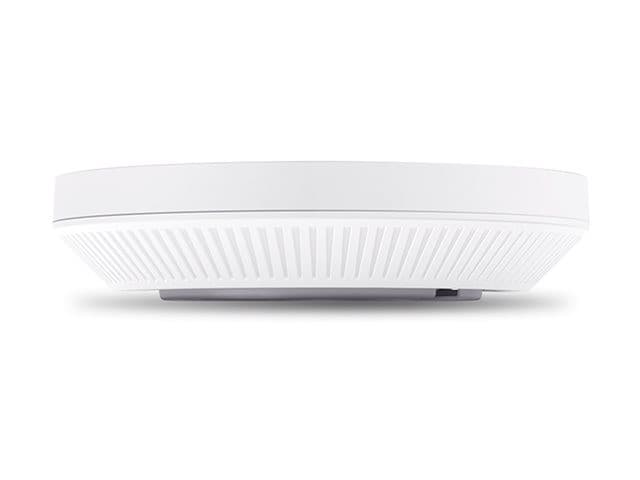

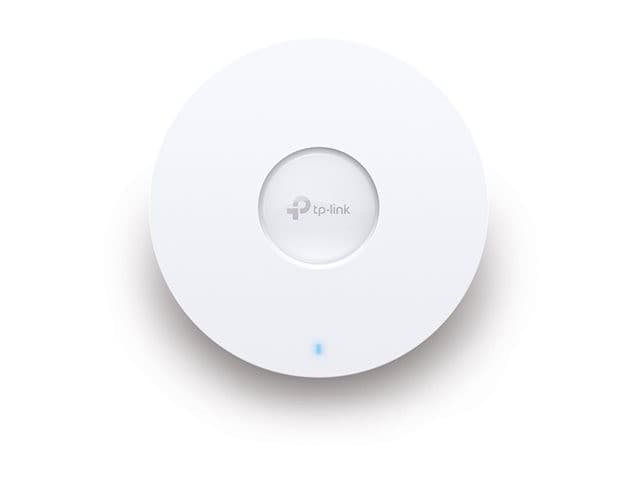

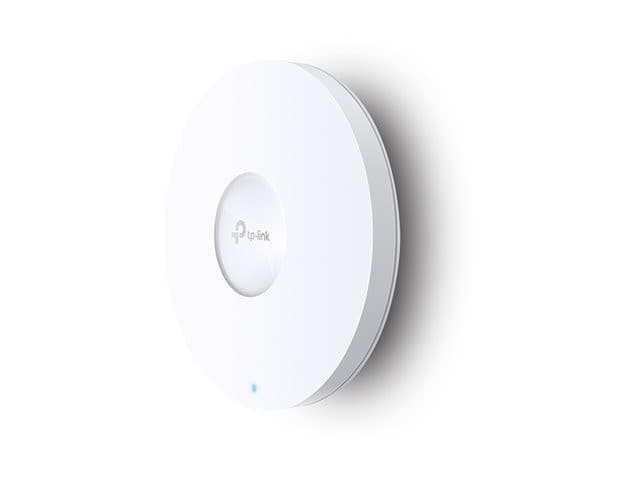

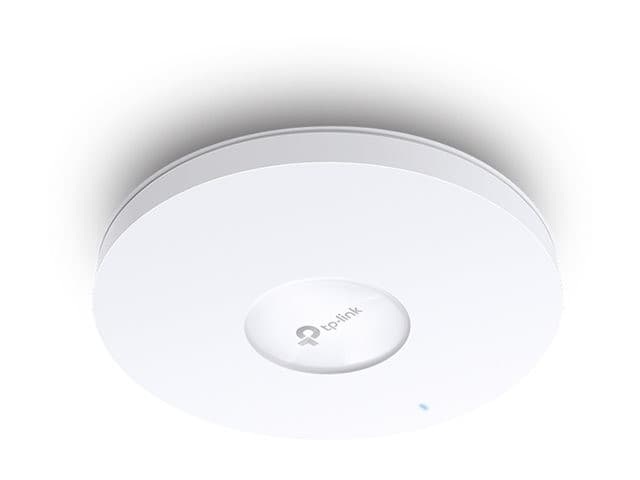

- TP-Link Omada EAP653 V1
- Basic Specifications - OS Required
- Linux, Windows 8, Microsoft Windows XP / Vista / 7 / 10 / 11
- Basic Specifications - Performance
- Maximum data rate (2.4 GHz): 574 Mbps ¦ Maximum data rate (5 GHz): 2402 Mbps ¦ Bandwidth: 160 MHz
- Basic Specifications - Power
- DC 12 V
- Basic Specifications - Power Over Ethernet (PoE) Supported
- PoE+
- Basic Specifications - Product Description
- TP-Link Omada EAP653 V1 - radio access point - Wi-Fi 6 - cloud-managed
- Environmental Parameters - Humidity Range Operating
- 10 - 90% RH (non-condensing)
- Environmental Parameters - Max Operating Temperature
- 40 °C
- Environmental Parameters - Min Operating Temperature
- 0 °C

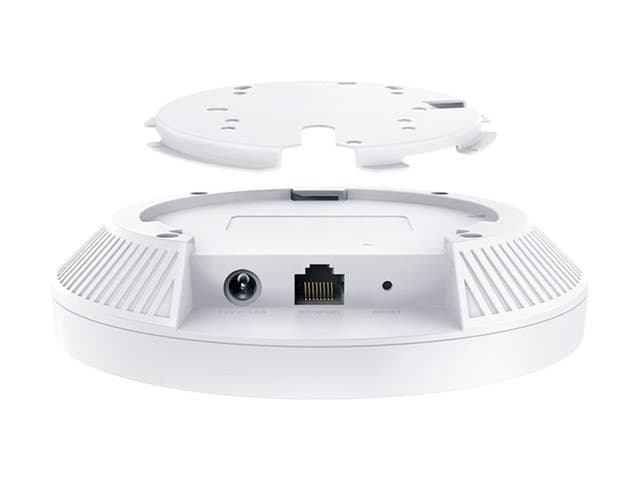

- Expansion / Connectivity - Interfaces
- 1 x 1000Base-T (PoE+) - RJ-45
- General - Depth
- 16 cm
- General - Device Type
- Radio access point
- General - Height
- 3.36 cm
- General - Width
- 16 cm
- Miscellaneous - Compliant Standards
- FCC, RoHS
- Miscellaneous - Included Accessories
- Wall/ceiling mounting kit
- Networking - Authentication Method
- Secure Shell (SSH), Radio Service Set ID (SSID)
- Networking - Capacity
- Maximum number of configured SSIDs: 16 ¦ Number of concurrent clients: 250+
- Networking - Cloud-Managed
- Yes
- Networking - Compliant Standards
- IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.1x, IEEE 802.11n, IEEE 802.3at, IEEE 802.11ac, IEEE 802.11ax, Wi-Fi CERTIFIED 6
- Networking - Connectivity Technology
- Wireless
- Networking - Data Link Protocol
- IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6)
- Networking - Encryption Algorithm
- WPA-Enterprise, WPA2-Enterprise, WPA3-Enterprise, WPA3-Personal, WPA2-Personal, WPA-Personal
- Networking - Features
- Load balancing, VLAN support, Syslog support, E-mail alert, MAC address filtering, Wi-Fi Multimedia (WMM) support, Access Control List (ACL) support, Quality of Service (QoS), reset button, Captive Portal, Transmit Power Control (TPC), MU-MIMO technology, beamforming technology, band steering, SSID to VLAN mapping, rate limit, Wireless Scheduler, wireless SSID, LED on/off button, seamless roaming, Airtime Fairness, Zero-touch provisioning (ZTP), adjustable transmission power, schedule reboot, self-healing network, Omada Mesh technology, multi-site management
- Networking - Form Factor
- Wall / ceiling mountable
- Networking - Frequency Band
- 2.4 GHz, 5 GHz
- Networking - Line Coding Format
- OFDM, 1024 QAM, OFDMA
- Networking - Performance
- Maximum data rate (2.4 GHz): 574 Mbps ¦ Maximum data rate (5 GHz): 2402 Mbps ¦ Bandwidth: 160 MHz
- Networking - Remote Management Protocol
- SNMP 1, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, SSH, NTP
- Networking - Spread Spectrum Method
- OFDM, OFDMA
- Networking - Status Indicators
- Status
- Networking - Wi-Fi Rating
- AX3000
- Power - Power Consumption Operational
- 14.7 Watt
- Power - Power Device
- External power adapter
- Power - Power Over Ethernet (PoE) Supported
- PoE+
- Power - Voltage Required
- DC 12 V
- Software / System Requirements - OS Required
- Linux, Windows 8, Microsoft Windows XP / Vista / 7 / 10 / 11
- Software / System Requirements - Software Included
- Omada Controller
