- Basic Specifications - Batteries Qty
- 2
- Basic Specifications - Battery
- Lead Acid - 7 Ah
- Basic Specifications - Colour
- Black
- Basic Specifications - Device Type
- UPS - external
- Basic Specifications - Dimensions (WxDxH)
- 24 cm x 48 cm x 31 cm
- Basic Specifications - EAN
- 3553340620409
- Basic Specifications - Included Accessories
- BS cord 10A
- Basic Specifications - Input Connectors
- 1 x power IEC 60320 C14
- Basic Specifications - Input Voltage
- AC 220/230/240 V
- Basic Specifications - Input Wiring
- 1-phase
- Basic Specifications - Manufacturer Warranty
- 2-year warranty
- Basic Specifications - Manufacturer's Part Number
- 5SC750iBS
- Basic Specifications - Model
- Eaton 5SC 750i
- Basic Specifications - Networking
- RS-232, USB
- Basic Specifications - Output connectors
- 6 x power IEC 60320 C13
- Basic Specifications - Output Voltage
- AC 220-240 V
- Basic Specifications - Power Capacity
- 525 Watt / 750 VA
- Basic Specifications - Product Description
- Eaton 5SC 750i - UPS - 525 Watt - 750 VA
- Basic Specifications - Product Type
- UPS
- Basic Specifications - Run Time (Up To)
- 5 min at full load
- Basic Specifications - Weight
- 11.5 kg
- Battery - Capacity
- 7 Ah
- Battery - Quantity
- 2
- Battery - Run Time (Up To)
- 5 min at full load ¦ 13 min at half load ¦ 9 min at 70% load
- Battery - Technology
- Lead Acid
- Battery - Voltage Provided
- 12 V
- Dimensions & Weight - Depth
- 48 cm
- Dimensions & Weight - Height
- 31 cm
- Dimensions & Weight - Weight
- 11.5 kg
- Dimensions & Weight - Width
- 24 cm
- Environmental Parameters - Humidity Range Operating
- 0 - 85%
- Environmental Parameters - Max Operating Temperature
- 35 °C
- Environmental Parameters - Min Operating Temperature
- 0 °C
- Expansion / Connectivity - Interfaces
- 1 x management (USB) - 4 pin USB Type B ¦ 1 x management (RS-232) - RJ-45
- General - Colour
- Black
- General - Device Type
- UPS - external
- Manufacturer Warranty - Service & Support
- Limited warranty - 2 years ¦ Limited warranty - batteries - 2 years
- Miscellaneous - Cables Included
- USB cable ¦ 2 x power cable (IEC) ¦ Serial cable
- Miscellaneous - Compliant Standards
- UL 1778, CB, IEC 62040-1-1, IEC 62040-2, EN 62040-1-1, EN 62040-2
- Miscellaneous - Features

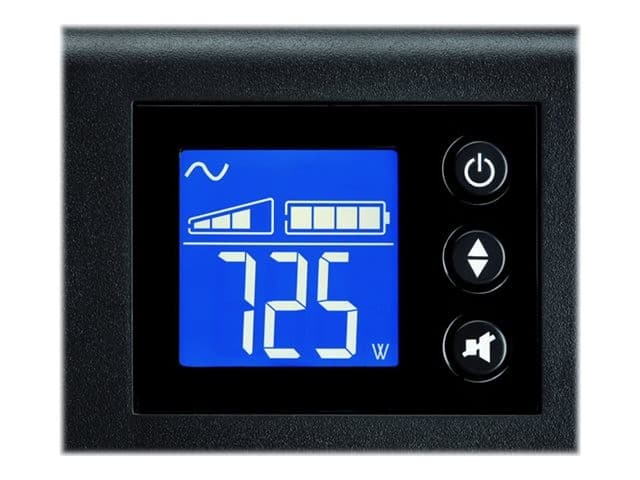

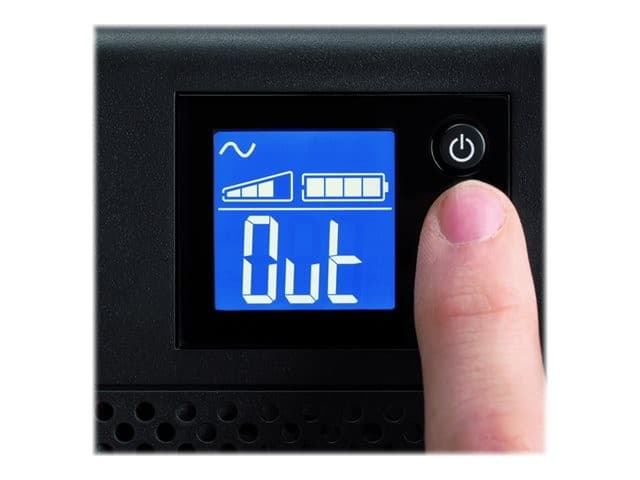

- Advance Battery Management (ABM), LCD display, deep discharge protection
- Miscellaneous - Included Accessories
- BS cord 10A
- Networking - Remote Management Interface
- RS-232, USB
- Power Device - Circuit Protection
- Circuit breaker
- Power Device - Efficiency
- 96%
- Power Device - Frequency Required
- 45 - 55 / 55 - 65 Hz

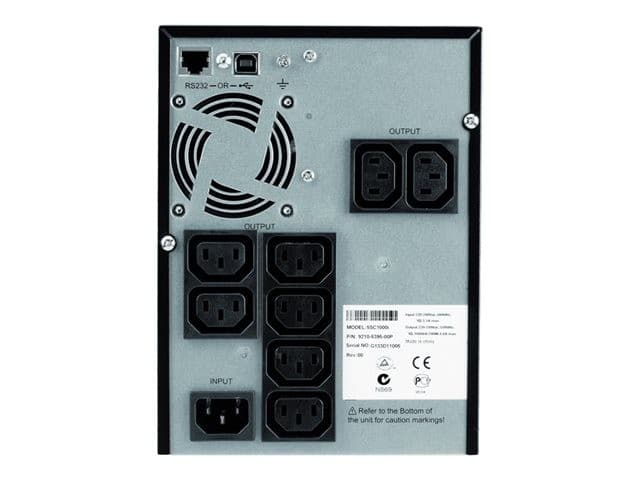

- Power Device - Input Connectors
- 1 x power IEC 60320 C14
- Power Device - Input Voltage
- AC 220/230/240 V
- Power Device - Input Voltage Range
- AC 184 - 276 V
- Power Device - Input Wiring
- 1-phase
- Power Device - Output Voltage
- AC 220-240 V
- Power Device - Output Waveform
- Sinewave
- Power Device - Power Capacity
- 525 Watt / 750 VA
- Power Device - Power Output Connectors Details
- 6 x power IEC 60320 C13
- Power Device - UPS Technology
- Line interactive
