- Audio - Compliant Standards
- High Definition Audio
- Audio - Type
- HD Audio (8-channel)
- Basic Specifications - Audio
- HD Audio (8-channel)
- Basic Specifications - Chipset Type
- AMD B650
- Basic Specifications - Compatible Processors
- Ryzen (supports Ryzen 7000 Series)
- Basic Specifications - EAN
- 4719331857851
- Basic Specifications - Form Factor
- Micro ATX
- Basic Specifications - LAN
- 2.5 Gigabit Ethernet
- Basic Specifications - Manufacturer's Part Number
- B650M D3HP
- Basic Specifications - Max RAM Size
- 128 GB
- Basic Specifications - Model
- Gigabyte B650M D3HP
- Basic Specifications - Processor Socket
- 1 x Socket AM5
- Basic Specifications - Product Description

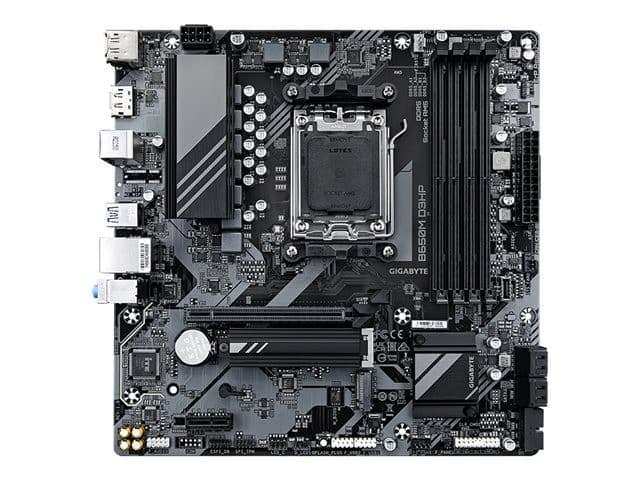

- Gigabyte B650M D3HP - 1.0 - motherboard - micro ATX - Socket AM5 - AMD B650
- Basic Specifications - Product Type
- Motherboard - micro ATX
- Basic Specifications - RAM Supported
- 4 DIMM slots - DDR5, non-ECC, unbuffered
- Basic Specifications - Storage Ports
- 4 x SATA-600 (RAID), 2 x M.2
- Basic Specifications - USB / FireWire Ports
- 1 x USB-C 3.2 Gen 1 + 3 x USB 3.2 Gen 1 + 2 x USB 2.0 + (1 x USB-C 3.2 Gen 2 + 2 x USB 3.2 Gen 1 + 4 x USB 2.0 via headers)
- Expansion / Connectivity - Expansion Slots
- 1 x CPU ¦ 4 x DIMM 288-pin ¦ 1 x PCIe 4.0 x16 ¦ 1 x PCIe 3.0 x1 ¦ M.2 socket (2580 M.2 Key M slot) ¦ M.2 socket (2280/25110 M.2 Key M slot)
- Expansion / Connectivity - Interfaces
- 1 x HDMI ¦ 2 x DisplayPort ¦ 1 x audio line-out/line-in - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x USB-C 3.2 Gen 1 ¦ 3 x USB 3.2 Gen 1 ¦ 2 x USB 2.0 ¦ 1 x PS/2 keyboard / mouse ¦ 1 x LAN (2.5Gigabit Ethernet)
- Expansion / Connectivity - Internal Interfaces
- 4 x USB 2.0 - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 1 x USB-C 3.2 Gen 1 - header ¦ 1 x audio - header ¦ 1 x SPI - header
- Expansion / Connectivity - Power Connectors
- 24-pin main power connector, 8-pin ATX12V connector
- Expansion / Connectivity - Storage Interfaces
- SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 ¦ SATA-600 / PCIe 4.0 -connectors: 2 x M.2 - RAID 0 / RAID 1 / RAID 10
- Features - BIOS Features
- UEFI BIOS, PnP 1.0a support, DMI 2.7 support, WfM 2.0 support, SMBIOS 2.7 support, ACPI 5.0 support
- Features - BIOS Type
- AMI
- Features - Hardware Features
- Q-Flash Plus, Q-Flash, 5+2+2 Phase Power Design, GIGABYTE Smart Fan 6, PCIe EZ Latch, RGB FUSION, High-end Audio Capacitors, Audio Noise Guard, Ultra Durable
- Features - Hardware Monitoring
- Fan fail warning, fan speed detection, temperature detection, system voltage
- General - Chipset Type
- AMD B650
- General - Compatible Processors
- Ryzen (supports Ryzen 7000 Series)
- General - Max Processors Qty
- 1
- General - Processor Socket
- Socket AM5
- General - Product Type
- Motherboard - micro ATX
- LAN - Network Interfaces
- 2.5 Gigabit Ethernet
- Miscellaneous - Compliant Standards
- HDCP 2.3, DisplayPort 1.4
- Miscellaneous - Depth
- 24.4 cm
- Miscellaneous - Software Included
- Norton Internet Security (OEM Version)
- Miscellaneous - Width
- 24.4 cm
- Supported RAM - Bus Clock
- 4800 MHz, 5200 MHz, 5600 MHz (O.C.), 6000 MHz (O.C.), 6200 MHz (O.C.), 6400 MHz (O.C.), 6600 MHz (O.C.), 6800 MHz (O.C.), 7000 MHz (O.C.), 7200 MHz (O.C.), 7600 MHz (O.C.)
- Supported RAM - Features
- Dual channel memory architecture, AMD EXPO technology, Intel Extreme Memory Profiles (XMP)
- Supported RAM - Max Size
- 128 GB
- Supported RAM - Registered or Buffered
- Unbuffered
- Supported RAM - Supported RAM Integrity Check
- Non-ECC
- Supported RAM - Technology
- DDR5
