- Basic Specifications - EAN
- 4719331859510
- Basic Specifications - Form Factor
- Micro ATX
- Basic Specifications - Manufacturer's Part Number
- 124376
- Basic Specifications - Max RAM Size
- 192 GB
- Basic Specifications - Processor Socket
- AMD AM5

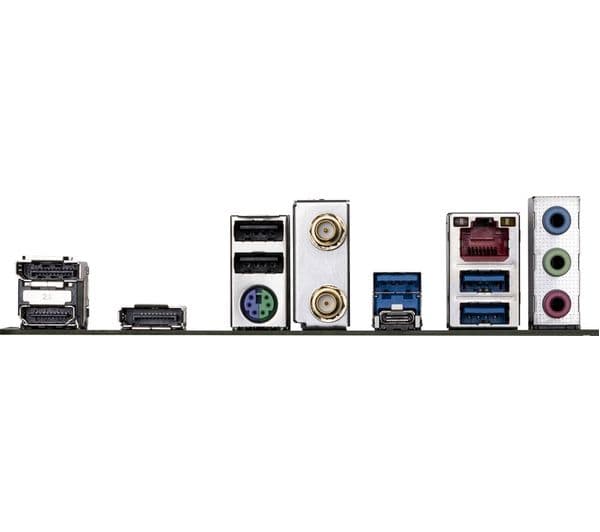

- External connectivity - Audio
- Audio jacks x 3
- External connectivity - LAN
- - 2.5G Ethernet port x 1- SMA Antenna connectors (2T2R) x 2
- External connectivity - Other external connections
- - WiFi 6E- PS/2 keyboard/mouse port
- External connectivity - USB
- CPU:- USB Type-C x 1- USB 3.2 x 1- USB 2.0 x 1Chipset:- USB 3.2 x 2- USB Type-C x 2- USB 2.0 x 5
- External connectivity - Video output
- - HDMI 2.1 x 1- DisplayPort x 2
- General - Box contents

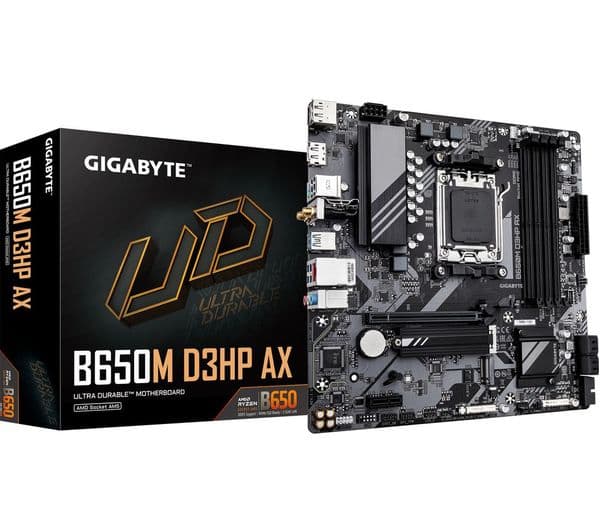

- - Gigabyte B650M D3HP AX AM5 Motherboard- SATA cable- I/O shield-WiFi Antenna- User manual
- General - Colour
- Black
- General - Dimensions
- 40 x 244 x 244 mm (H x W x D)
- General - Manufacturer’s guarantee
- 3 years
- General - Weight
- 695 g
- Internal connectivity - BIOS
- - 256 Mbit flash ROM- UEFI AMI BIOS
- Internal connectivity - Buttons
- - Power- Reset- Q-Flash Plus
- Internal connectivity - Case
- - Power LED x 1- HDD LED x 1
- Internal connectivity - Cooling
- - CPU fan header x 1- System fan header x 2
- Internal connectivity - Expansion slots
- - PCIe 4.0 (x16) x 1- PCIe 3.0 (x1) x 1
- Internal connectivity - Other internal connections
- - Addressable LED strip headers x 2- RGB LED strip header x 1- TPM header x 1
- Internal connectivity - Power
- - 24-pin EATX x 1- 8-pin ATX 12 V x 1
- Internal connectivity - Sensors
- - Voltage sensor x 1- Temperature sensor x 1- Fan speed sensor x 1- Fan fail sensor x 1
- Internal connectivity - Storage slots
- - SATA x 4 (6 GB/s)- M.2 x 2
- Internal connectivity - USB
- - USB Type-C x 1- USB 3.0 x 3- USB 2.0 x 2
- Overview - Chipset
- AMD B650
- Overview - Cooling features
- - Heatsinks- Smart Fan 6
- Overview - Form factor
- microATX
- Overview - Memory slots
- 4 x DIMM (Max RAM: 192 GB)
- Overview - Memory standard
- DDR5
- Overview - Multi-GPU support
- No
- Overview - Operating systems supported
- Windows 10 or later
- Overview - Processor models supported
- AMD Ryzen 7000 & 8000 Series desktop processors
- Overview - Socket
- AMD AM5
