- Basic Specifications - EAN
- 4711377086578
- Basic Specifications - Manufacturer's Part Number
- 123297
- External connectivity - Audio
- Realtek® ALC897 Codec x 3- 7.1-Channel High-Definition Audio
- External connectivity - LAN
- Gigabit Ethernet port x 1
- External connectivity - Other external connections
- USB 3.2 Gen 1 5Gbps (Type-A)- USB 3.2 Gen 2 10Gbps (Type-C)
- External connectivity - USB
- USB 3.2 x 2- USB 2.0 x 4
- External connectivity - Video output
- HDMI x 1- DisplayPort x 1
- General - Box contents

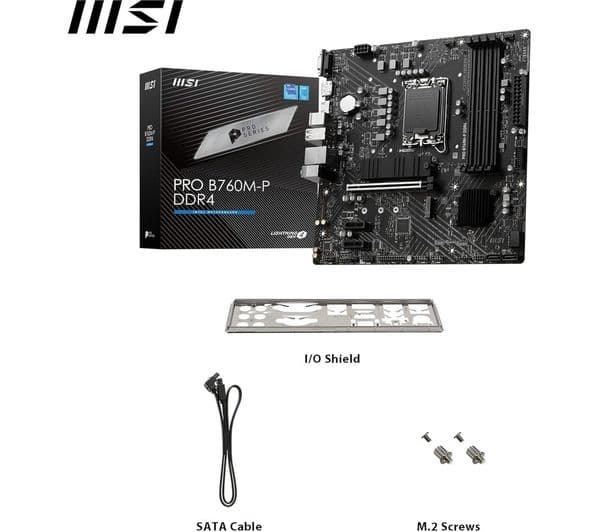

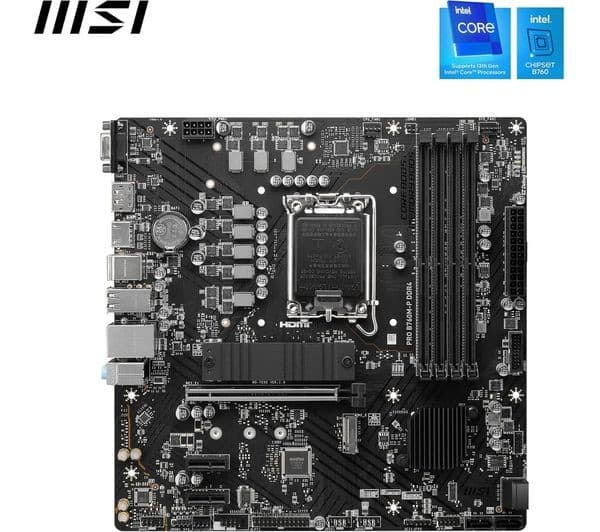

- MSI PRO B760M-P LGA1700 Motherboard- M.2 screw/standoff sets x 2- SATA cable- IO shield- Quick installation guide
- General - Colour
- Black
- General - Dimensions
- 243 x 243 mm (H x W)
- General - Weight
- 0.91 kg
- Internal connectivity - Buttons
- Power - Reset
- Internal connectivity - Cooling
- CPU fan x 1- System fan x 2- Front panel x 2
- Internal connectivity - Expansion slots
- PCIe 4.0 (x16 slot) x 1- PCIe 4.0 (x1 slot) x 2
- Internal connectivity - Other internal connections
- RGB LED Connector x 1- EZ Debug LED x 4- Front panel audio connector x 1- System panel connectors x 2- Chassis intrusion connector x 1- TPM module connector x 1- Tuning controller connector x 1- Addressable V2 RGB LED connector x 2- RGB LED 4-pin x 1
- Internal connectivity - Power
- Power connector (ATX_PWR) x 1- Power connector (CPU_PWR) x 1
- Internal connectivity - Storage slots
- SATA x 4 (6 GB/s) - M.2 Gen4 x 2 (64 GB/s)
- Internal connectivity - USB
- USB Type-C x 1- USB 2.0 x 4
- Overview - Chipset
- Intel B760
- Overview - Cooling features
- Fan cooling- Liquid cooling- Extended PWM heatsink- Plated VRM heatsink- Chipset heatsink- MOSFET thermal pads- M.2 Shield Frozr
- Overview - Form factor
- Micro ATX
- Overview - Memory slots
- 4 x DIMM (Max RAM: 256 GB)
- Overview - Memory standard
- DDR5
- Overview - Operating systems supported
- Windows 10- Windows 11
- Overview - Processor models supported
- 12th/13th/14th generation Intel Core / Pentium Gold / Celeron processors
- Overview - Socket
- Intel LGA1700
