- ASIN
- B0BMM7M56F
- Audio
- 7.1 HD Audio with Audio Boost
- Audio - Audio Codec
- Realtek ALC897
- Audio - Compliant Standards
- High Definition Audio
- Audio - Type
- HD Audio (8-channel)
- Basic Specifications - Audio
- HD Audio (8-channel)
- Basic Specifications - Chipset Type
- Intel B760
- Basic Specifications - Compatible Processors
- (supports 12th and 13th Generation Intel Core / Pentium Gold / Celeron)
- Basic Specifications - EAN
- 4711377030991
- Basic Specifications - LAN
- Gigabit Ethernet
- Basic Specifications - Manufacturer's Part Number
- PRO B760M-P DDR4
- Basic Specifications - Max RAM Size
- 128 GB
- Basic Specifications - Model
- MSI PRO B760M-P DDR4
- Basic Specifications - Processor Socket
- 1 x LGA1700 Socket
- Basic Specifications - Product Description

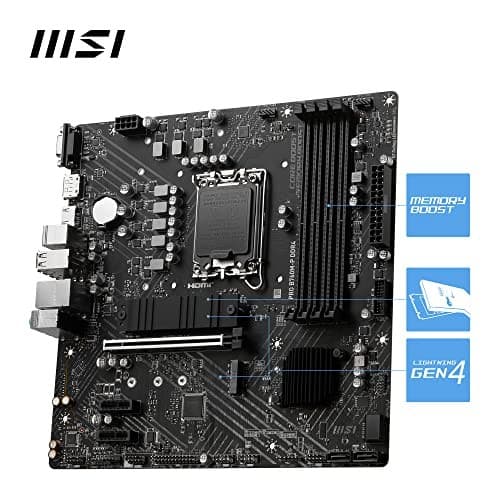

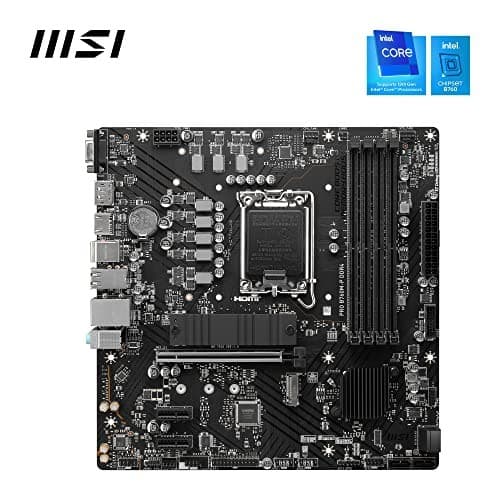

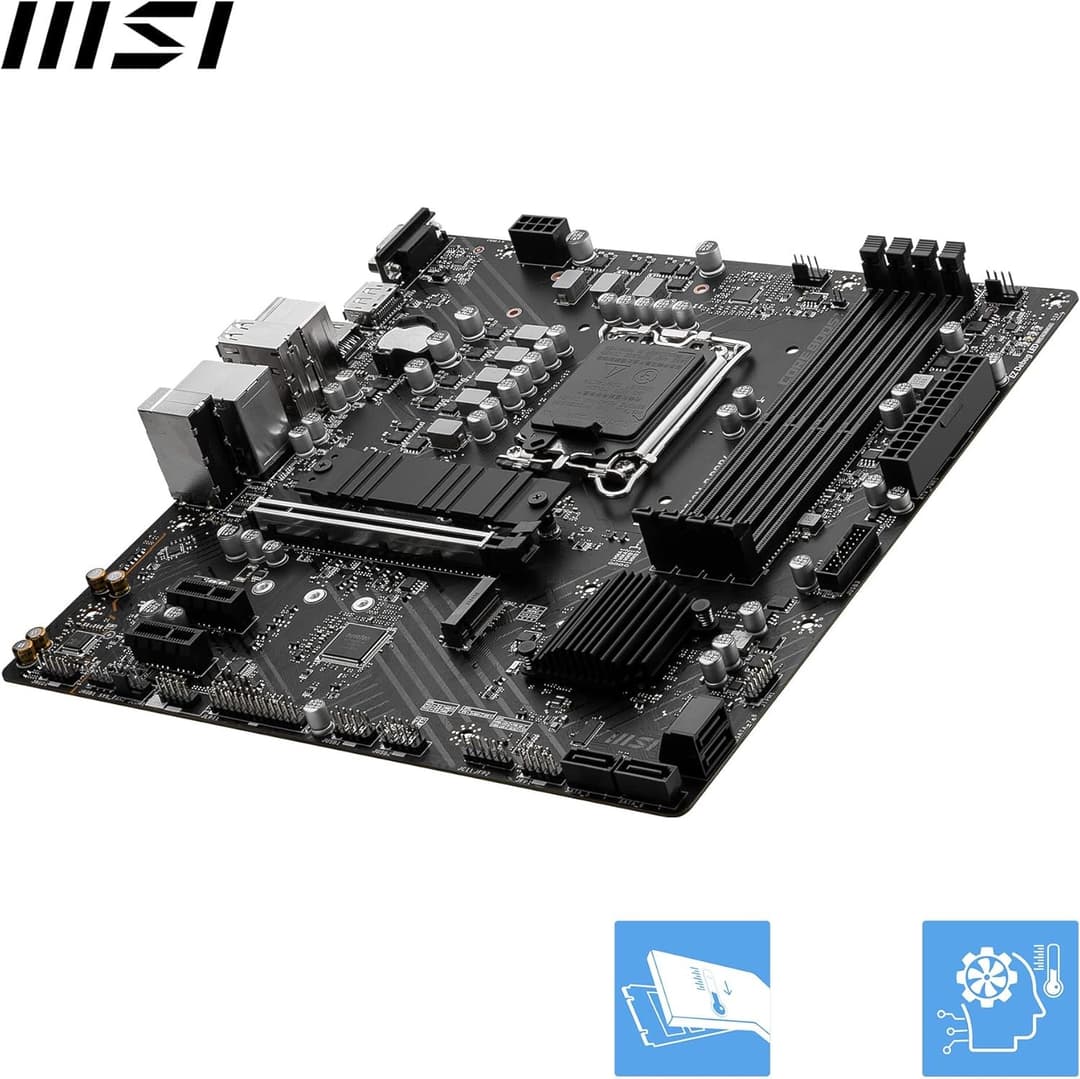

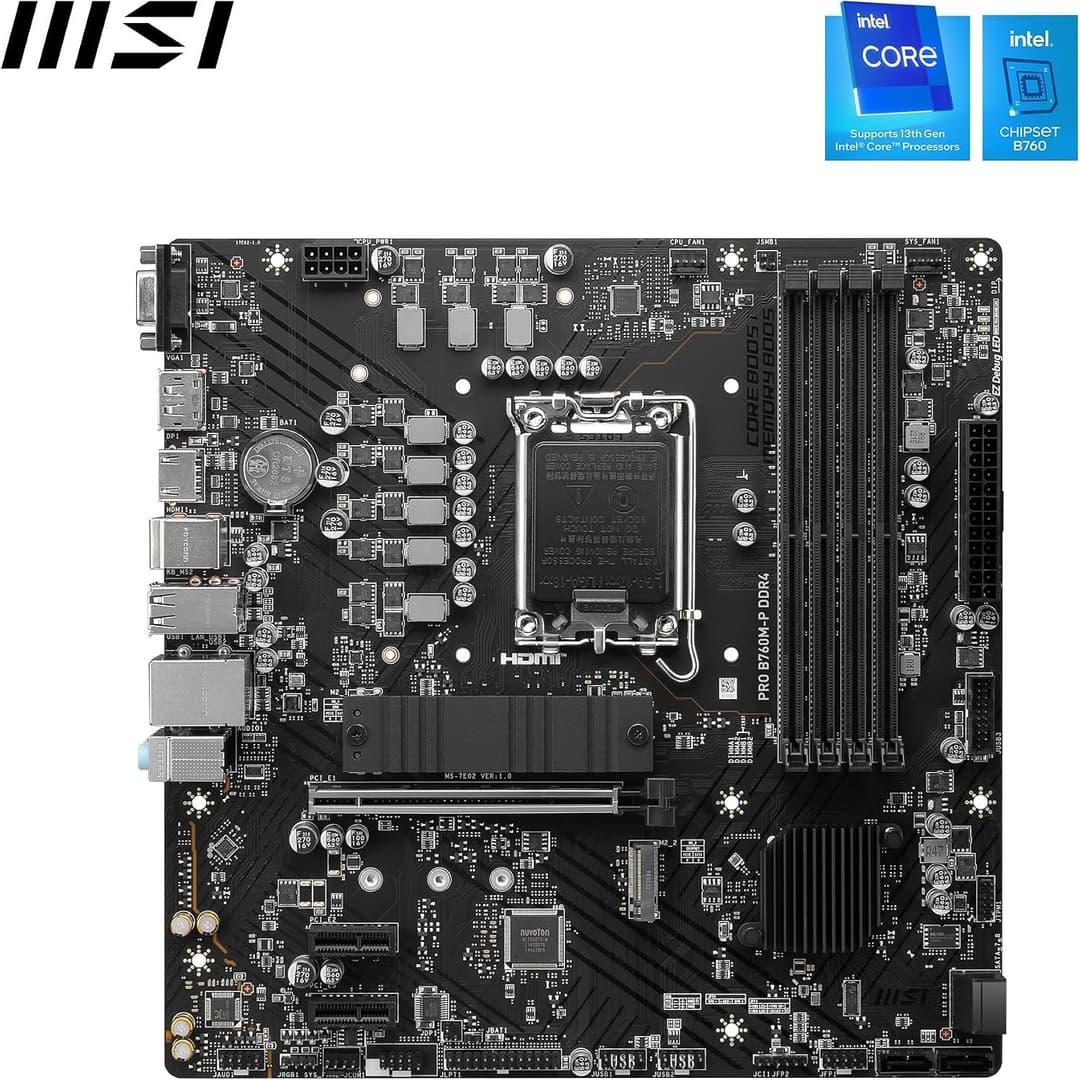

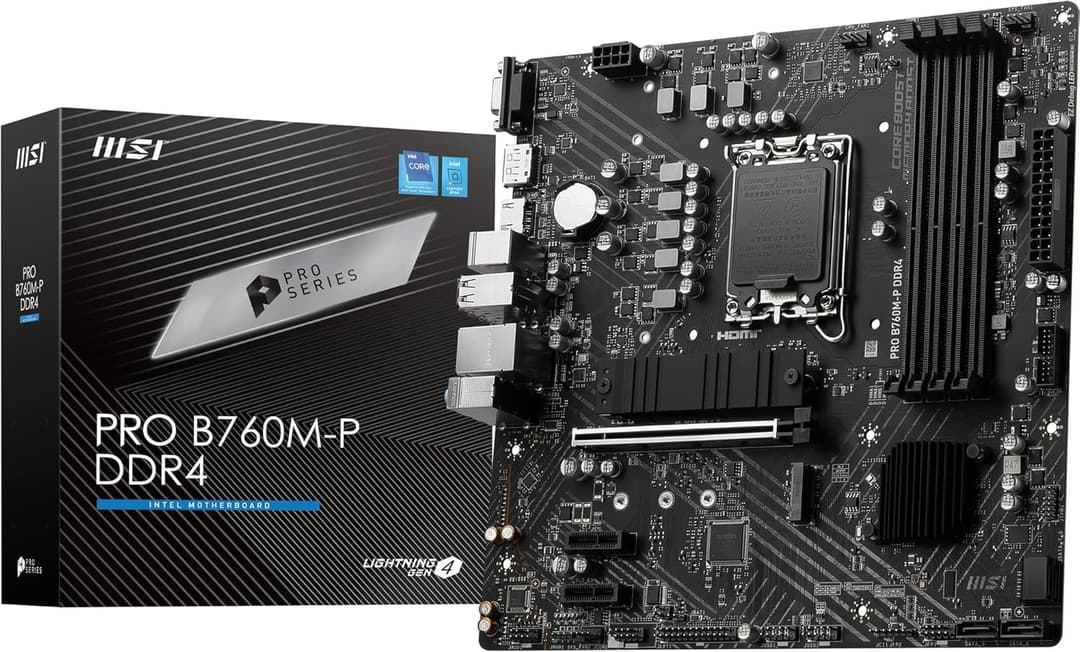

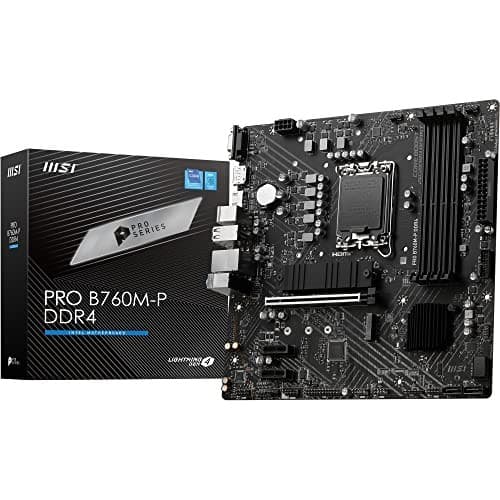

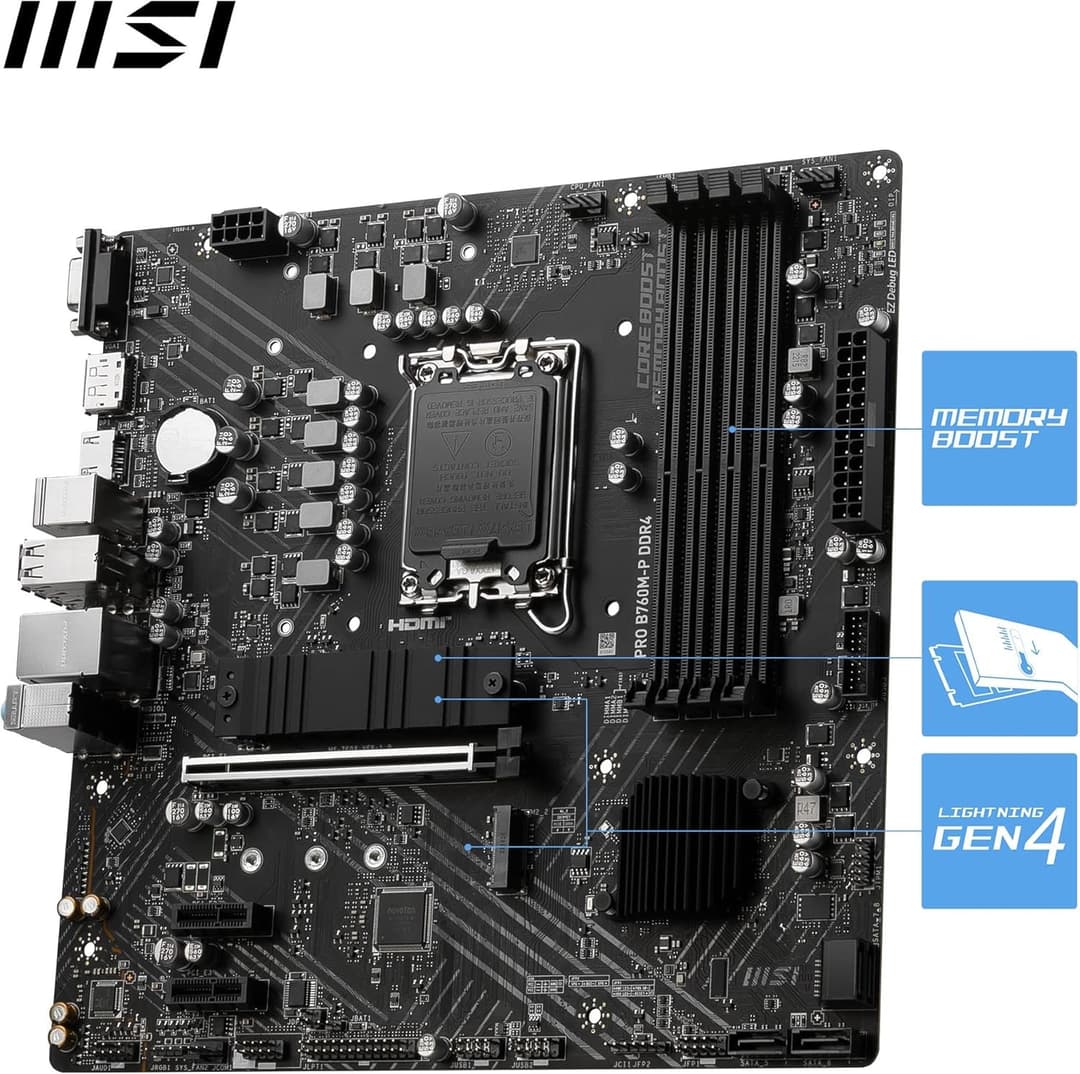

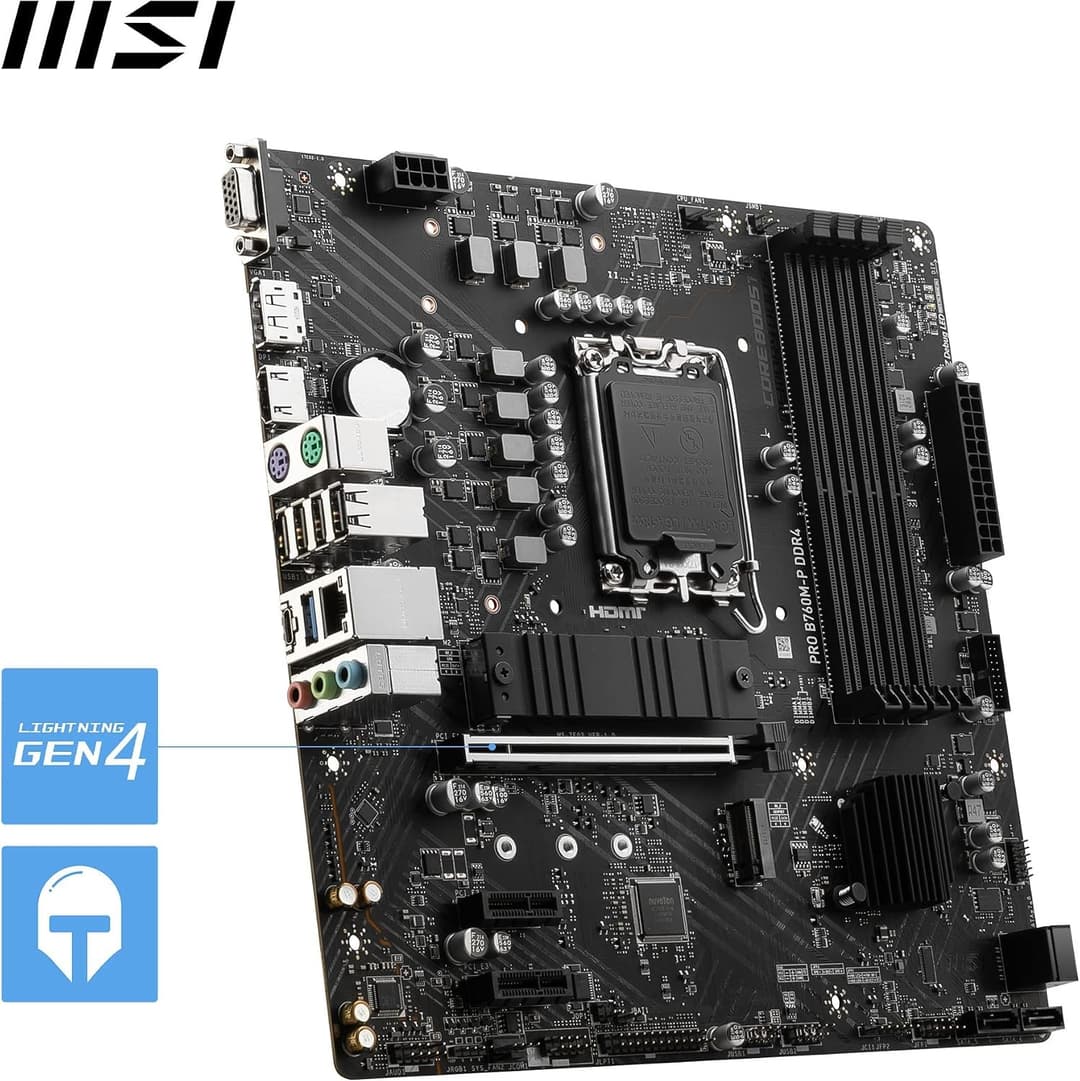

- MSI PRO B760M-P DDR4 - motherboard - micro ATX - LGA1700 Socket - B760
- Basic Specifications - Product Type
- Motherboard - micro ATX
- Basic Specifications - RAM Supported
- 4 DIMM slots - DDR4, non-ECC, unbuffered
- Basic Specifications - Storage Ports
- 4 x SATA-600 (RAID), 2 x M.2
- Basic Specifications - USB / FireWire Ports
- 1 x USB-C 3.2 Gen 2 + 1 x USB 3.2 Gen 1 + 4 x USB 2.0 + (2 x USB 3.2 Gen 1 + 4 x USB 2.0 via headers)
- Best Sellers Rank
- 2,198 in Computers & Accessories (See Top 100 in Computers & Accessories) 8 in Motherboards
- Box Contents
- Pack of 1.
- Brand Name
- MSI
- Chipset Family
- Intel B760
- Chipset Type
- Intel B760
- Compatible Devices
- Personal Computer
- Compatible Processors
- Intel Core 12th Gen, Intel Core 13th Gen
- Cooling
- Passive chipset heatsink, Frozr AI cooling, Shield Frozr on primary M.2
- Country of Origin
- China
- CPU Model
- Core i5
- Customer Reviews
- 4.5 4.5 out of 5 stars (508) 4.5 out of 5 stars
- DIMM Slots
- 4 x DDR4 DIMM
- Expansion / Connectivity - Expansion Slots
- 1 x CPU ¦ 4 x DIMM 288-pin ¦ 1 x PCIe 4.0 x16 ¦ 2 x PCIe 4.0 x1 ¦ 2 x M.2 socket (2242/2260/2280 M.2 Key M slot)

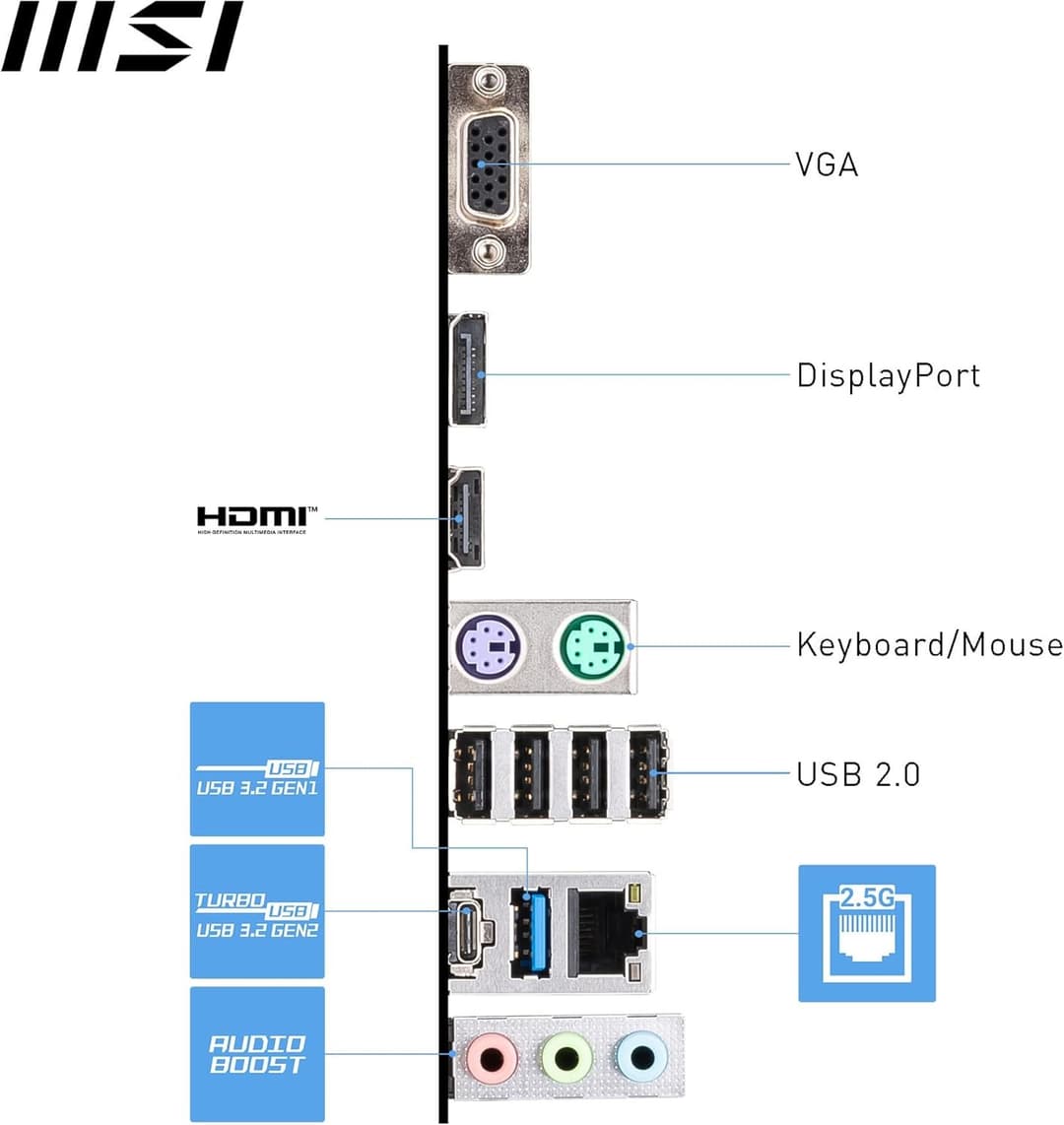

- Expansion / Connectivity - Interfaces
- 1 x HDMI ¦ 1 x DisplayPort ¦ 1 x VGA ¦ 4 x USB 2.0 ¦ 1 x USB 3.2 Gen 1 ¦ 1 x USB-C 3.2 Gen 2 ¦ 1 x LAN (Gigabit Ethernet) ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x audio line-in - mini-jack
- Expansion / Connectivity - Internal Interfaces
- 4 x USB 2.0 - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 1 x serial - header ¦ 1 x audio - header ¦ 1 x SPI - header
- Expansion / Connectivity - Power Connectors
- 24-pin main power connector, 8-pin ATX12V connector
- Expansion / Connectivity - Storage Interfaces
- SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ PCIe 4.0 -connectors: 2 x M.2
- Features - BIOS Features
- MSI ClickBIOS 5, M-Flash
- Features - Hardware Features
- Debug LED, MSI Steel Armor, MSI Memory Boost, MSI Core Boost, MSI Audio Boost, M.2 Shield FROZR
- Form Factor
- Micro-ATX
- General - Chipset Type
- Intel B760
- General - Compatible Processors
- (supports 12th and 13th Generation Intel Core / Pentium Gold / Celeron)
- General - Max Processors Qty
- 1
- General - Processor Socket
- LGA1700 Socket
- General - Product Type
- Motherboard - micro ATX
- Global Trade Identification Number
- 04711377030991
- Graphics Card Interface
- PCI-Express x16
- Item Dimensions L x W x H
- 50L x 28W x 50H centimetres
- Item Type Name
- Intel Motherboard
- Item Weight
- 0.1 Kilograms
- LAN
- 1Gbps LAN controller
- LAN - Network Controller
- Realtek RTL8111H
- LAN - Network Interfaces
- Gigabit Ethernet
- M.2 Slots
- 2 x M.2 Gen4 x4 (64Gbps)
- Main Power Connector Type
- ATX_PWR
- Manufacturer
- MSI
- Manufacturer Part Number
- 7E02-001R
- Memory Clock Speed
- 4800 MHz
- Memory Storage Capacity
- 128 GB
- Miscellaneous - Cables Included
- 1 x Serial ATA cable
- Miscellaneous - Compliant Standards
- DisplayPort 1.4, FCC Part 15 Class B, WEEE
- Miscellaneous - Depth
- 24.384 cm

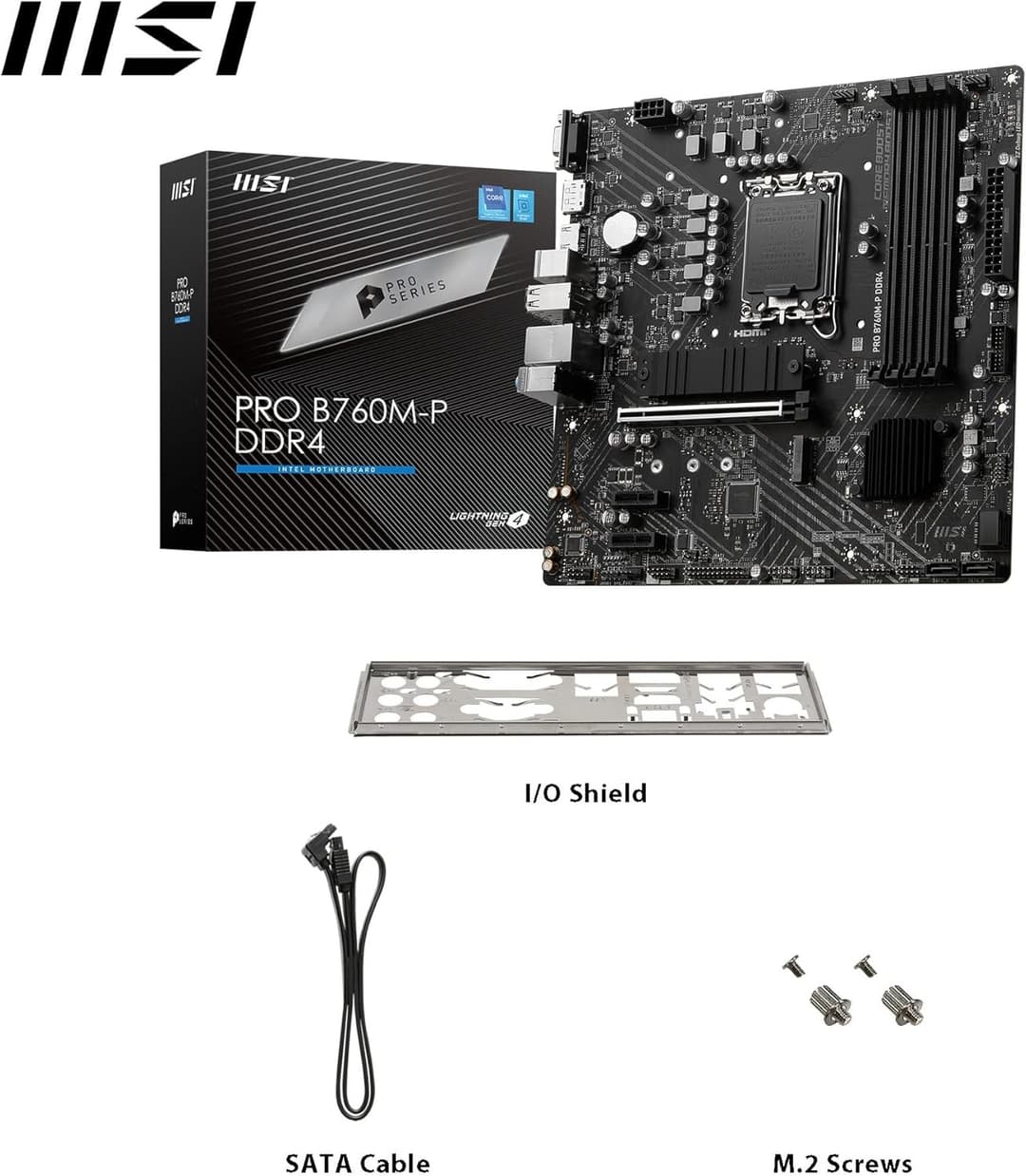

- Miscellaneous - Included Accessories
- IO shield, 2 x M.2 screw / standoff sets
- Miscellaneous - Software Included
- MSI Center, AIDA64 Extreme (60 days trial)
- Miscellaneous - Width
- 24.384 cm
- Model Name
- PRO B760M-P DDR4
- Model Number
- 7E02-001R
- Number of Items
- 1
- Number of Ports
- 19
- PCIe Slot
- PCIe 4.0 x16 (64GB/s)
- PCIe Slot Protection
- Steel Armor
- Platform
- Windows 11
- Processor Socket
- LGA 1700
- Ram Memory Maximum Size
- 64 GB
- RAM Memory Technology
- DDR4
- Rear USB Ports
- USB 3.2 Gen 2 Type-C (10Gbps), USB 3.2 Gen 1 Type-A (5Gbps)
- S/PDIF Connector Type
- Optical
- Supported RAM - Bus Clock
- 2133 MHz, 2400 MHz, 2666 MHz, 2933 MHz, 3200 MHz, 3333 MHz (O.C.), 3400 MHz (O.C.), 3466 MHz (O.C.), 3600 MHz (O.C.), 3733 MHz (O.C.), 3800 MHz (O.C.), 4000 MHz (O.C.), 4200 MHz (O.C.), 4266 MHz (O.C.), 4400 MHz (O.C.), 4600 MHz (O.C.), 4800 MHz (O.C.)
- Supported RAM - Features
- Dual channel memory architecture, Intel Extreme Memory Profiles (XMP)
- Supported RAM - Max Size
- 128 GB
- Supported RAM - Registered or Buffered
- Unbuffered
- Supported RAM - Supported RAM Integrity Check
- Non-ECC
- Supported RAM - Technology
- DDR4
- System Bus Standard Supported
- SATA 3
- Total HDMI Port
- 1
- Total PCIe Ports
- 3
- Total SATA Ports
- 4
- Total USB Ports
- 12
- Unit Count
- 1.0 count
- USB 2.0
- 4
- Video Outputs
- HDMI 1.4, DisplayPort 1.4, VGA
- VRM Technology
- MSI Core Boost
