- Basic Specifications - Aspect Ratio
- 16:9
- Basic Specifications - Brightness
- 250 cd/m²
- Basic Specifications - Colour
- Black
- Basic Specifications - Colour Support
- 262,144 colours
- Basic Specifications - Compliant Standards
- UL, FCC, RoHS
- Basic Specifications - Contrast Ratio
- 650:1
- Basic Specifications - Device Type
- KVM console - 17.3"
- Basic Specifications - Dimensions (WxDxH)
- 48 cm x 72.7 cm x 4.4 cm
- Basic Specifications - EAN
- 0065030872515
- Basic Specifications - Features
- Keyboard, touchpad
- Basic Specifications - Height (Rack Units)
- 1U
- Basic Specifications - Input Connectors
- 2xDVI-D, 2xVGA
- Basic Specifications - KVM Switch
- USB - 1 ports
- Basic Specifications - Localisation
- Australia, Japan, New Zealand, United Kingdom, Europe, North Asia
- Basic Specifications - Manufacturer Warranty
- 2-year warranty
- Basic Specifications - Manufacturer's Part Number
- RKCOND17HD
- Basic Specifications - Model
- StarTech.com Dual Rail Rackmount KVM Console HD 1080p, Single Port DVI/VGA KVM with 17" LCD Monitor for Server Rack, Fully Featured 1U LCD KVM Drawer with Cables, USB Support, 44230 MTBF - Single Port Console (RKCOND17HD)
- Basic Specifications - Native Resolution
- Full HD (1080p) 1920 x 1080 at 60 Hz
- Basic Specifications - Pixel Pitch
- 0.199 mm
- Basic Specifications - Product Description
- StarTech.com Dual Rail Rackmount KVM Console HD 1080p, Single Port DVI/VGA KVM with 17" LCD Monitor for Server Rack, Fully Featured 1U LCD KVM Drawer with Cables, USB Support, 44230 MTBF - Single Port Console (RKCOND17HD) - KVM console - Full HD (1080p) - 17.3"
- Basic Specifications - Voltage
- AC 120/230 V
- Basic Specifications - Weight
- 12 kg
- Connectivity - Interfaces
- VGA output ¦ 2 x USB 2.0 (Type A) ¦ DVI-D output ¦ Audio line-out (mini-jack) ¦ VGA ¦ DVI-D ¦ USB 2.0 (Type B) ¦ Audio line-in (mini-jack)
- Environmental Parameters - Humidity Range Operating
- 10 - 80% (non-condensing)
- Environmental Parameters - Max Operating Temperature
- 40 °C
- Environmental Parameters - Min Operating Temperature
- 0 °C
- General - Aspect Ratio
- 16:9
- General - Brightness
- 250 cd/m²
- General - Colour
- Black
- General - Colour Support
- 262,144 colours
- General - Contrast Ratio
- 650:1
- General - Diagonal Size
- 17.3"
- General - Dimensions (WxDxH)
- 48 cm x 72.7 cm x 4.4 cm
- General - Display Type
- KVM console / TFT active matrix
- General - Height (Rack Units)
- 1U
- General - Horizontal Viewing Angle
- 140
- General - Native Resolution
- Full HD (1080p) 1920 x 1080 at 60 Hz
- General - Pixel Pitch
- 0.199 mm
- General - Vertical Viewing Angle
- 120
- General - Weight
- 12 kg
- Input - Type
- Keyboard, touchpad
- KVM - Keyboard / Mouse Interface
- USB
- KVM - Max Resolution
- 1920 x 1080 @ 60 Hz
- KVM - Type
- KVM switch - 1 ports
- Manufacturer Warranty - Service & Support
- Limited warranty - 2 years
- Miscellaneous - Cables Included
- 1 x keyboard / mouse / video cable - 1.2 m ¦ 1 x audio cable - 1.8 m
- Miscellaneous - Compliant Standards
- UL, FCC, RoHS
- Miscellaneous - Features
- LED indicator

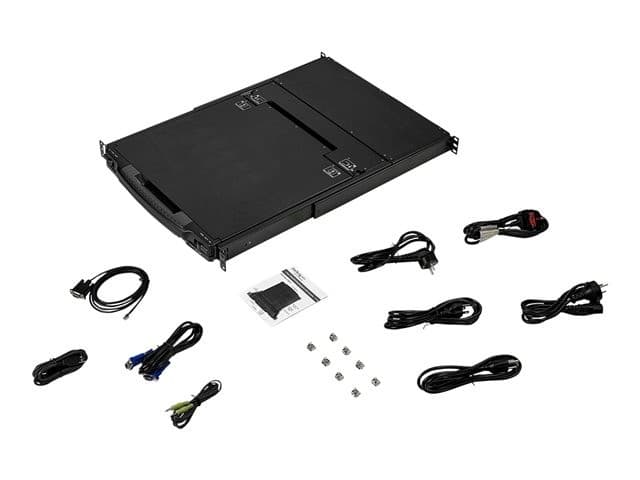

- Miscellaneous - Included Accessories
- Firmware upgrade cable, 8 x M5 cage nuts, 8 x M5 screws, 2 x mounting rails
- Miscellaneous - Localisation
- Australia, Japan, New Zealand, United Kingdom, Europe, North Asia
- Miscellaneous - MTBF
- 44230 hour(s)
- Miscellaneous - Rack Mounting Kit
- Included
- Power - Input Voltage
- AC 120/230 V
- Power - Power Consumption (Typical)
- 19.4 Watt
