- Basic Specifications - Colour
- Black
- Basic Specifications - Designed For
- P/N: TB3DK2DPM2, TB3DOCK2DPPD, TB3DOCK2DPPU
- Basic Specifications - Dimensions (WxDxH)
- 27.3 cm x 8.2 cm x 14 cm
- Basic Specifications - EAN
- 0065030868440
- Basic Specifications - Manufacturer Warranty
- 2-year warranty
- Basic Specifications - Manufacturer's Part Number
- TB31PCIEX16
- Basic Specifications - Model
- StarTech.com Thunderbolt 3 PCIe Expansion Chassis, External Enclosure Box with 1x PCI-Express Slot, 5K/4K Output Via TB3/DP Ports, TAA
- Basic Specifications - Power
- Power adapter AC 100/240 V (50/60 Hz) 65 Watt Power Provided
- Basic Specifications - Product Description
- StarTech.com Thunderbolt 3 PCIe Expansion Chassis, External Enclosure Box with 1x PCI-Express Slot, 5K/4K Output Via TB3/DP Ports, TAA - system bus extender - DP
- Basic Specifications - Product Type
- System bus extender
- Basic Specifications - Video Interfaces
- DP
- Basic Specifications - Weight
- 1 kg
- Compatibility Information - Designed For
- P/N: TB3DK2DPM2, TB3DOCK2DPPD, TB3DOCK2DPPU
- Environmental Parameters - Max Operating Temperature
- 35 °C
- Environmental Parameters - Min Operating Temperature
- 5 °C
- Expansion / Connectivity - Expansion Slots
- 1 (total) / 1 (free) x PCI Express 3.0 x16 (x4 mode)
- Expansion / Connectivity - Interfaces

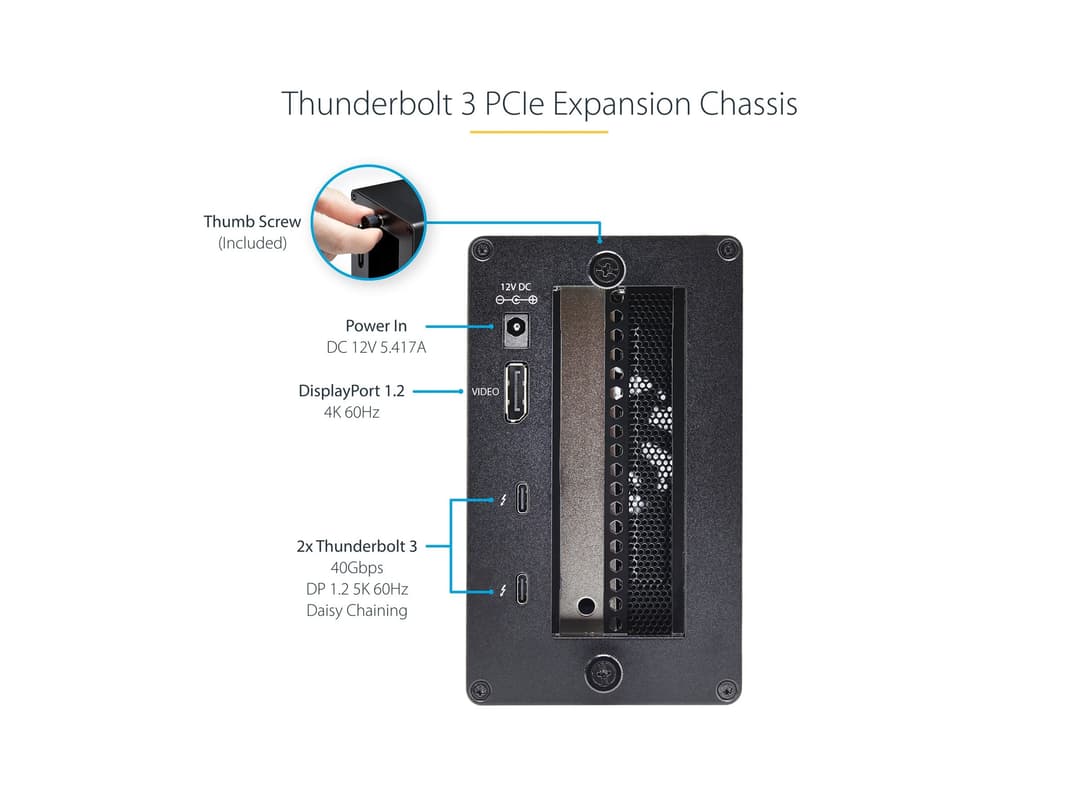

- 2 x Thunderbolt 3 - 24 pin USB-C ¦ 1 x display / video - DisplayPort - 20 pin DisplayPort
- General - Depth
- 8.2 cm
- General - Enclosure Colour
- Black
- General - Height
- 14 cm
- General - Product Type
- System bus extender
- General - Weight
- 1 kg
- General - Width
- 27.3 cm
- Manufacturer Warranty - Service & Support
- Limited warranty - 2 years

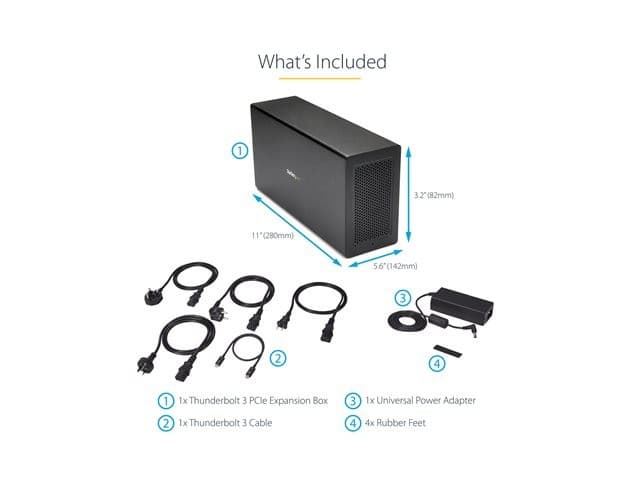

- Miscellaneous - Cables Included
- 1 x Thunderbolt cable - external
- Miscellaneous - Compliant Standards
- FCC, RoHS, WEEE
- Miscellaneous - Features
- LED indicator, built-in cooling fan
- Miscellaneous - Included Accessories
- 4 x rubber feet
- Power - Power Device
- Power adapter
- Power - Power Provided
- 65 Watt
- Power - Voltage Required
- AC 100/240 V (50/60 Hz)
- System Requirements - OS Required
- Microsoft Windows 7 / 8 / 8.1 / 10 / 11, Apple macOS 10.12 - 10.15, Apple macOS 11.0, Apple macOS 12.0, Apple macOS 13.0
