- Basic Specifications - Capacity
- Priority queues: 8 ¦ IPv4 routes (static): 16 ¦ IPv6 routes (static): 16 ¦ Static routes: 48 ¦ ARP entries: 128 ¦ Maximum aggregation groups: 8 ¦ Ports per aggregation group: 8 ¦ Layer 2 multicast filtering profiles: 256 ¦ Layer 2 multicast filtering entries per profile: 16 ¦ VLAN groups: 4000 ¦ MAC VLAN address entries: 7 ¦ VLAN templates: 16 ¦ IP MAC port binding entries: 512 ¦ IPv4 source guard entries: 100 ¦ IPv6 MAC port binding entries: 512 ¦ IPv6 source guard entries: 100 ¦ Port security entries: 64
- Basic Specifications - Compliant Standards
- IEEE 802.3at, IEEE 802.3af, IEEE 802.1p, IEEE 802.3ad (LACP), IEEE 802.1D, IEEE 802.1s, IEEE 802.1w, IEEE 802.1ab (LLDP), IEEE 802.1Q, IEEE 802.1x, IEEE 802.3x
- Basic Specifications - Device Type
- Switch - 24 ports - L2+ - Managed
- Basic Specifications - Dimensions (WxDxH)
- 44 cm x 33 cm x 4.4 cm
- Basic Specifications - EAN
- 6935364030780
- Basic Specifications - Enclosure Type
- Rack-mountable
- Basic Specifications - Features
- Flow control, VPN support, BOOTP support, ARP support, IGMP snooping, Syslog support, DoS attack prevention, port mirroring, Broadcast Storm Control, IPv6 support, Multicast Storm Control, Unicast Storm Control, firmware upgradable, SNTP support, sFlow, DHCP snooping, ACL support, QoS, DHCP server, MLD snooping, Cable Diagnostics Function, DLDP support, LLDP support, DHCP relay, LACP, Port Security, MVR, NDP, port isolation, CoS, SP, GVRP, 802.1x authentication, cloud managed, DSCP support, IP source guard, ARP inspection, BPDU, dual image support, SDN, AAA, LLDP-MED, VLAN group, Guest VLAN, ZTP, EEE, BPDU Filter, WRR, HOL Blocking Prevention, loopback detection, MAB, security slot (Kensington security lock compatible), fast leave, Link Aggregation, 2 fans, store and forward
- Basic Specifications - Jumbo Frame Support
- 9KB
- Basic Specifications - MAC Address Table Size
- 16K entries
- Basic Specifications - Manufacturer's Part Number
- SG3428XMP
- Basic Specifications - Model
- TP-Link JetStream TL-SG3428XMP V3.6
- Basic Specifications - Performance
- Switching capacity: 128 Gbps ¦ Packet forwarding rate: 95.23 Mpps ¦ Packet buffer size: 12 Mbit
- Basic Specifications - PoE Budget
- 384 W
- Basic Specifications - Ports
- 24 x 10/100/1000 (PoE+) + 4 x 10 Gigabit SFP+
- Basic Specifications - Power
- AC 100-240 V (50/60 Hz)
- Basic Specifications - Power Over Ethernet (PoE)
- PoE+
- Basic Specifications - Product Description

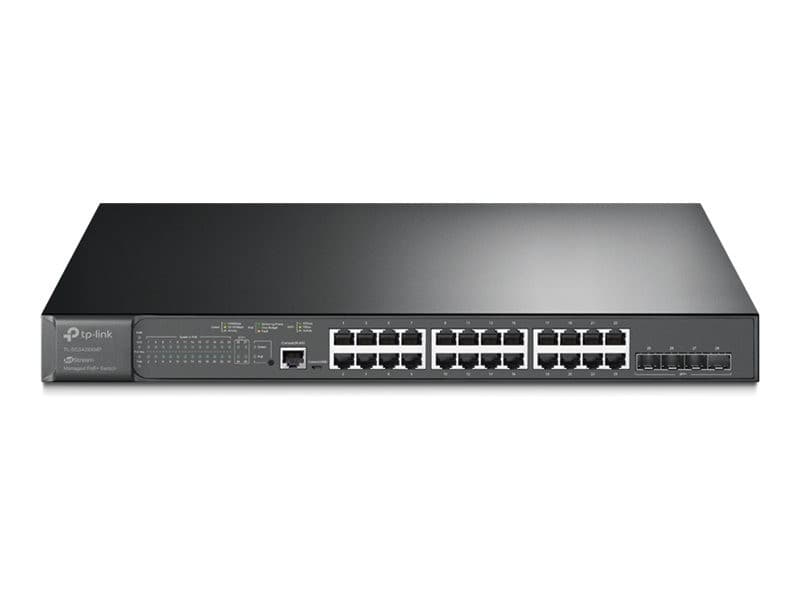

- TP-Link JetStream TL-SG3428XMP V3.6 - switch - 24 ports - Managed - rack-mountable
- Basic Specifications - Remote Management Protocol
- SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH, CLI, ICMP, DHCP, RSTP, SNMP
- Basic Specifications - Routing Protocol
- IGMPv2, IGMP, IGMPv3, static IPv4 routing, static IPv6 routing, MLDv2, MLD, MSTP, RSTP, STP
- Basic Specifications - Subtype
- Gigabit Ethernet
- Basic Specifications - System Requirements
- Microsoft Windows 98SE/2000/NT/XP/Vista/7/8/8.1/10/11, UNIX, Apple MacOS, Novell NetWare, Linux
- Dimensions & Weight - Depth
- 33 cm
- Dimensions & Weight - Height
- 4.4 cm
- Dimensions & Weight - Width
- 44 cm
- Environmental Parameters - Humidity Range Operating
- 10 - 90% RH (non-condensing)
- Environmental Parameters - Humidity Range Storage
- 5 - 90% RH (non-condensing)
- Environmental Parameters - Max Operating Temperature
- 45 °C
- Environmental Parameters - Max Storage Temperature
- 70 °C
- Environmental Parameters - Min Operating Temperature
- 0 °C
- Environmental Parameters - Min Storage Temperature
- -40 °C
- Expansion / Connectivity - Interfaces
- 24 x 1000Base-T RJ-45 PoE+ - 30 W ¦ 4 x 10GBase-X SFP+ ¦ 1 x console RJ-45 ¦ 1 x micro-USB console
- General - Authentication Method
- Secure Shell (SSH), RADIUS, TACACS+, Secure Shell v.2 (SSH2)
- General - Capacity
- Priority queues: 8 ¦ IPv4 routes (static): 16 ¦ IPv6 routes (static): 16 ¦ Static routes: 48 ¦ ARP entries: 128 ¦ Maximum aggregation groups: 8 ¦ Ports per aggregation group: 8 ¦ Layer 2 multicast filtering profiles: 256 ¦ Layer 2 multicast filtering entries per profile: 16 ¦ VLAN groups: 4000 ¦ MAC VLAN address entries: 7 ¦ VLAN templates: 16 ¦ IP MAC port binding entries: 512 ¦ IPv4 source guard entries: 100 ¦ IPv6 MAC port binding entries: 512 ¦ IPv6 source guard entries: 100 ¦ Port security entries: 64
- General - Compliant Standards
- IEEE 802.3at, IEEE 802.3af, IEEE 802.1p, IEEE 802.3ad (LACP), IEEE 802.1D, IEEE 802.1s, IEEE 802.1w, IEEE 802.1ab (LLDP), IEEE 802.1Q, IEEE 802.1x, IEEE 802.3x
- General - Device Type
- Switch - 24 ports - L2+ - Managed
- General - Enclosure Type
- Rack-mountable
- General - Encryption Algorithm
- SSL 3.0, TLS 1.2
- General - Features
- Flow control, VPN support, BOOTP support, ARP support, IGMP snooping, Syslog support, DoS attack prevention, port mirroring, Broadcast Storm Control, IPv6 support, Multicast Storm Control, Unicast Storm Control, firmware upgradable, SNTP support, sFlow, DHCP snooping, ACL support, QoS, DHCP server, MLD snooping, Cable Diagnostics Function, DLDP support, LLDP support, DHCP relay, LACP, Port Security, MVR, NDP, port isolation, CoS, SP, GVRP, 802.1x authentication, cloud managed, DSCP support, IP source guard, ARP inspection, BPDU, dual image support, SDN, AAA, LLDP-MED, VLAN group, Guest VLAN, ZTP, EEE, BPDU Filter, WRR, HOL Blocking Prevention, loopback detection, MAB, security slot (Kensington security lock compatible), fast leave, Link Aggregation, 2 fans, store and forward
- General - Flash Memory
- 32 MB
- General - Jumbo Frame Support
- 9KB
- General - MAC Address Table Size
- 16K entries
- General - Performance
- Switching capacity: 128 Gbps ¦ Packet forwarding rate: 95.23 Mpps ¦ Packet buffer size: 12 Mbit
- General - PoE Budget
- 384 W
- General - Ports
- 24 x 10/100/1000 (PoE+) + 4 x 10 Gigabit SFP+
- General - Power Over Ethernet (PoE)
- PoE+
- General - RAM
- 512 MB
- General - Remote Management Protocol
- SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH, CLI, ICMP, DHCP, RSTP, SNMP
- General - Routing Protocol
- IGMPv2, IGMP, IGMPv3, static IPv4 routing, static IPv6 routing, MLDv2, MLD, MSTP, RSTP, STP
- General - Subtype
- Gigabit Ethernet
- Miscellaneous - Compliant Standards
- FCC, RoHS
- Miscellaneous - Included Accessories
- Rubber feet
- Miscellaneous - Rack Mounting Kit
- Included
- Power - Power Consumption Stand by
- 17.6 Watt
- Power - Power Device
- Internal power supply
- Power - Voltage Required
- AC 100-240 V (50/60 Hz)
- Software / System Requirements - OS Required
- Microsoft Windows 98SE/2000/NT/XP/Vista/7/8/8.1/10/11, UNIX, Apple MacOS, Novell NetWare, Linux
